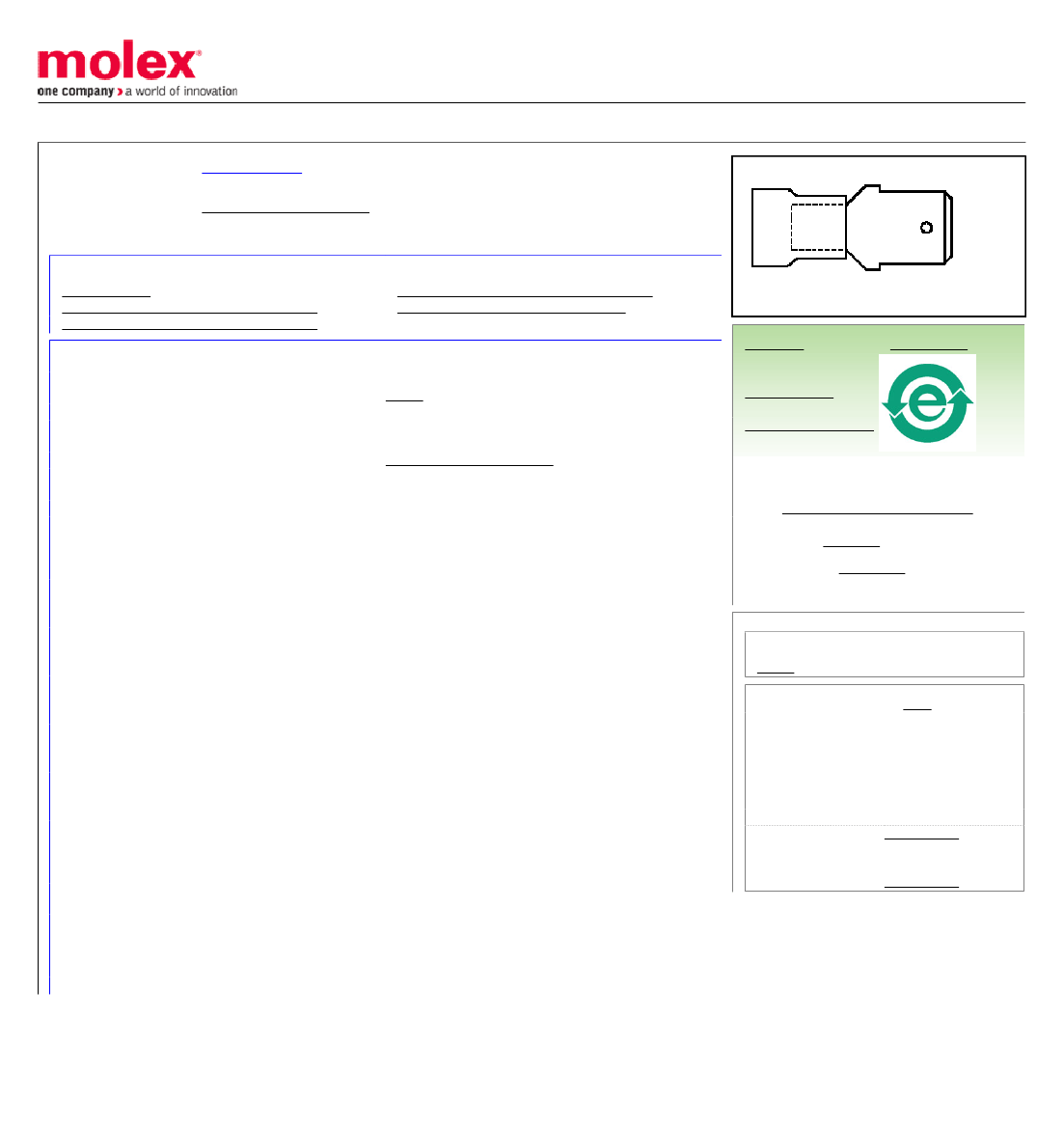

Part Number:
Status:
Overview:
Description:
19024-0007
Active
Quick-Disconnect Terminals
VibraKrimp™ Quick Disconnect, Male, for 14-16 (2.00-1.30mm²) Wire, Box, Tab 6.35 x
0.81mm
Documents:
Drawing (PDF)
Product Specification PS-19902-005 (PDF)
Product Specification PS-19902-011 (PDF)
Product Specification PS-19902-013 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Comments
Crimp Quality Equipment
Insulated
Overview
Product Name
Type
UPC
Quick Disconnects
19024
Brass Sleeve with Funnel Ferrule Entry
Yes
No
Quick-Disconnect Terminals
VibraKrimp™
Quick Disconnect
800753040335
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Barrel Type
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Male
No
None
None
Brass
Zinc Chromate
Zinc Chromate
1.221/g
Straight
Bag
No
0.81mm
6.35mm
Per Wire Specification
4.30mm max.
14, 16
1.30 - 2.00
Search Parts in this Series
19024Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Crimp Head for the 0640056800
AT-200™ Pneumatic
Hand Tool
Crimp Hand Tool
0640016800
Electrical
Voltage - Maximum
Per Wire Specification
Material Info
Old Part Number
MCT-4
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-19902-005, PS-19902-011, PS-19902-013
SD-19024-001
