KMH180VSSN220M22S

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 180V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, CAN
CategoryPassive components    capacitor
File Size121KB，4 Pages
ManufacturerNIPPON CHEMI-CON
Websitehttp://www.chemi-con.co.jp
Environmental Compliance
Download Datasheet Parametric View All

KMH180VSSN220M22S Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 180V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, CAN

KMH180VSSN220M22S Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1935324694
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance220 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
JESD-609 codee3
leakage current1.188 mA
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)180 V
ripple current800 mA
surface mountNO
Delta tangent0.1
Terminal surfaceTin (Sn)
Terminal shapeSNAP-IN

Preview

Download Datasheet

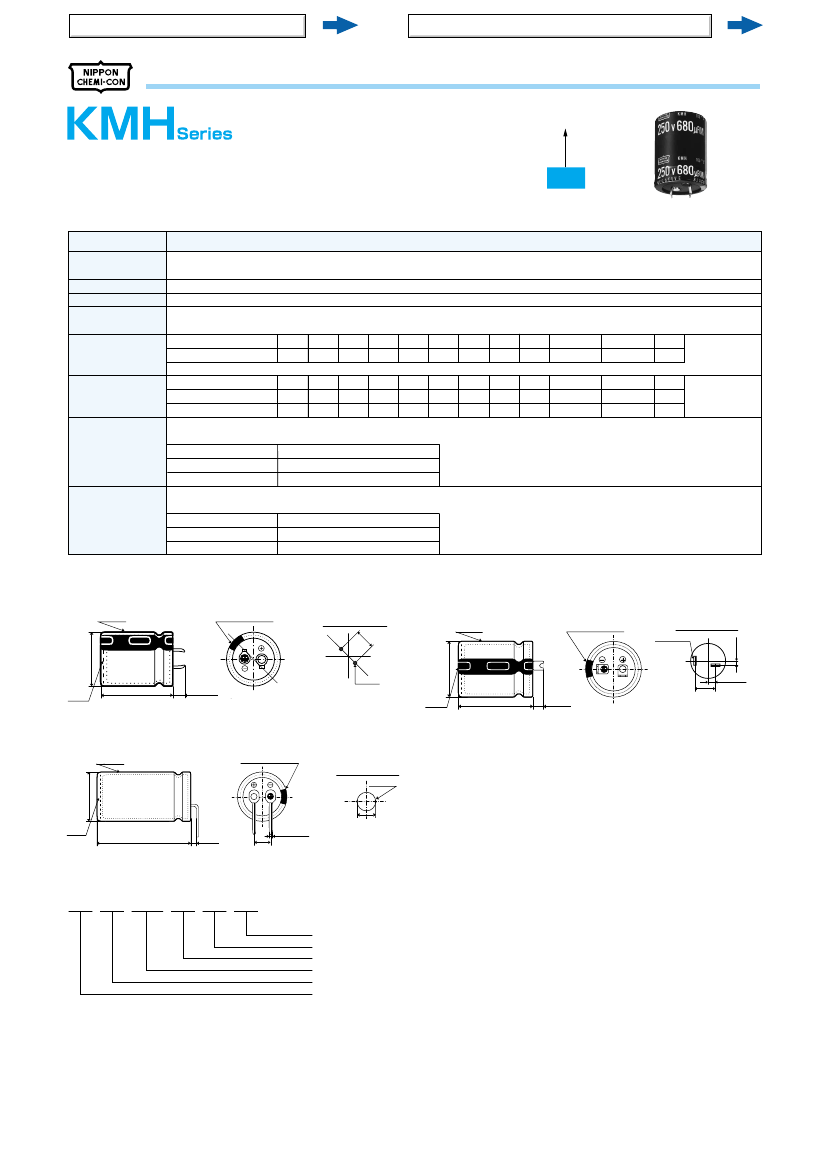

SMQ-Series(Snap-in)
ALUMINUM ELECTROLYTIC CAPACITORS
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
KMM
Standard snap-ins, 105C
@Endurance
with ripple current : 105C 2000 hours
@Non
solvent-proof type
downsized
longer life
KMH
?SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Characteristics
-40 to +105C (6.3 to 100V
dc
) -25 to +105C (160 to 450V
dc
)
6.3 to 450V
dc
P20%
(M)
(at 20C, 120Hz)
I=0.02CV (0.03CV for L=20mm) or 3mA, whichever is smaller
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
(at 20C after 5 minutes)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V315 to 400V 450V
Rated voltage (V
dc
)
0.60 0.50 0.40 0.30 0.25 0.20 0.15 0.15 0.15
0.10*
0.15
0.15
tanE (Max.)
* : 0.15 for D=35mm or L=20mm
(at 20C, 120Hz)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V 315 to 400V 450V
Rated voltage (V
dc
)
8
2
2
2
2
3
3
4
4
4
4
4
Z(-25C)/Z(+20C)
5
5
6
6
8
10
15
15
15
-
-
-
Z(-40C)/Z(+20C)
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 2000 hours at 105C.
Capacitance change
[P20%
of the initial value
D.F. (tanE)
[200%
of the initial specified value
Leakage current
[The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1000 hours at 105C
without voltage applied.
Capacitance change
[P20%
of the initial value
D.F. (tanE)
[150%
of the initial specified value
Leakage current
[The
initial specified value
Shelf Life
?DIMENSIONS
[mm]
@Standard
Terminal Type : VSSN (F22 to
F35)
Sleeve
Negative mark
PC board pin-out
@Terminal
Type : LISN(F35)
Sleeve
FD+1max.
Negative mark
FD+1max.
Vent
LP2
*
4.0P0.5
2-F2
5P0.5
Vent
LP2
4.5P1
14.2P1
*FD=35mm : 3.5P0.5mm
@Terminal
Type : LCSN (F22B30 to 50R)
Sleeve
Negative mark
FD+1max.
PC board pin-out
2-F2
Vent
8
LP2
3P1
8P1
1.5P0.1
?PART
NUMBERING SYSTEM
KMH 100 VSSN 1000
M
25B
Case code
Cap tolerance (P20%)
Nominal cap in
MF
Terminal type
Rated voltage in volts
Series name
(1/4)
CAT. No. E1001D
4.2P0.5
PC board pin-out
2-1.2B6
