PSC2.5VB560MH08 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> PSC2.5VB560MH08

PSC2.5VB560MH08: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount; CategoryPassive components capacitor; File Size610KB，2 Pages; ManufacturerNIPPON CHEMI-CON; Websitehttp://www.chemi-con.co.jp; Environmental Compliance

Download Datasheet Parametric View All

PSC2.5VB560MH08 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount

PSC2.5VB560MH08 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2112731032
package instruction	,
Reach Compliance Code	unknown
Country Of Origin	Taiwan
ECCN code	EAR99
YTEOL	6.5
capacitance	560 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	7 mΩ
leakage current	0.5 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	2.5 V
ripple current	6100 mA
surface mount	NO
Delta tangent	0.1
Terminal shape	WIRE

Preview

Download Datasheet

View All

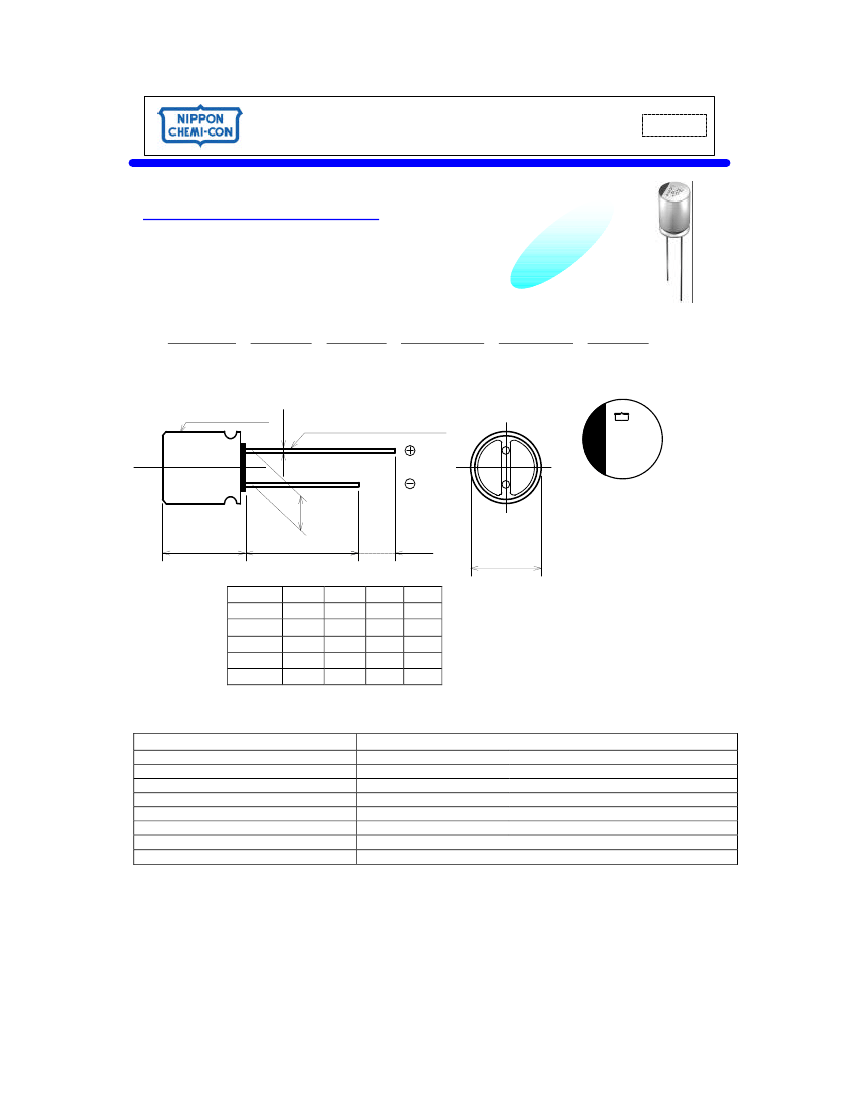

Engineering Bulletin

Conductive polymer Aluminum solid capacitors

Tentative

NP CAP

PSC

series

High CV

Low ESR, Higher Ripple

Suitable for DC-DC converters, voltage regulators

and decoupling applications for computer motherboards

Features

High CV &Low

ESR

Tolerance

Part Number System

PSC

Series

Name

2.5

Rated

Voltage

Shape

Code

820

Capacitance

H08

Size

Code

Dimensions (mm)

φd

Coated Case

Tin plated lead wire

Marking

820

2 5

L+Mmax.

15min.

0. 5

4min.

φD+0.5max.

Code

H08

1.0

3.5

0.6

H11

11.5

1.5

3.5

0.8

J11

11.5

1.5

5.0

0.8

J12

12.5

1.5

5.0

0.6

Specifications

Items

Category Temperature Range

Rated Voltage

Surge Voltage

Capacitance Tolerance

Leakage Current

Dissipation Factor (tand)

Endurance

Bias Humidity

Characteristics

-55 to +105 C

2.5~16 Vdc

Rated Voltage x 1.15

±20%

0.2CV or 500µAmax.

(at 20

C, Rated Voltage, after 2 minutes)

0.10max.

(at 20ºC? 120Hz)

105ºC Rated voltage applied for 2000 hours

60ºC, 90 to 95% RH for 1000 hours.

*Note: If any doubt arises, measure the leakage current after the following voltage treatment.

Voltage treatment: DC rated voltage is applied to the capacitors for 60 minutes at 105ºC.

Nippon Chemi-Con Corporation

Recommended Resources

LAS16U, LAS19U typical application circuit diagram

Memory protection power circuit during power outage

LED display circuit design driven by LED-6B595 (common cathode)

Computer motherboard circuit diagram 810 3_05

Computer motherboard circuit diagram 810 4_32

Is there something wrong with the official example of saving files in CC3200?: In the official file-operation example, when single-stepping into the WriteFileToDevice() function, lRetVal = sl_FsOpen (create file mode), the return value after running is less than 0, and then it e...; yimei11111 Wireless Connectivity

Does TCPMP support image browsing?: Does TCPMP support image browsing? If not, what plug-in can be used instead?...; duguke Embedded System

Show the process of WEBENCH design + 3.3V power supply design: For 430 MCU, 3.3V power supply is essential. Many other chips are powered by 5V, and 5V to 3.3V power supply is essential in 430 development. The input voltage of this scheme is 5V, and the output vol...; buer1209 Analogue and Mixed Signal

RF and microwave power amplifier and transmitter technology: 第一讲：RF and microwave power amplifiers and transmitters are used in a wide variety of applications including wireless communication, jamming, imaging, radar,and RF heating. This article provides an int...; 老夫子 RF/Wirelessly

A newbie would like to ask for advice on large-size LCD backlight circuit design, thank you.: Helping a friend design a large-size LCD backlight driver circuit. I usually work on small-size circuits and am not familiar with large-size circuits, so I don't know the difference. On the surface, i...; aoyezhong Power technology

Can you help me take a look at this FPGA development board?: I don't know much about FPGA. I saw this new board on Mouser a few days ago. It's less than 800 yuan, which is quite cheap. How about it as a beginner? Do I need to provide official routines to play w...; littleshrimp FPGA/CPLD
