3-1546159-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-1546159-1

3-1546159-1: Descriptionterm block 11circ vert WW .375; CategoryThe connector; File Size105KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1546159-1 Overview

term block 11circ vert WW .375

3-1546159-1 Parametric

Parameter Name	Attribute value
Datasheets

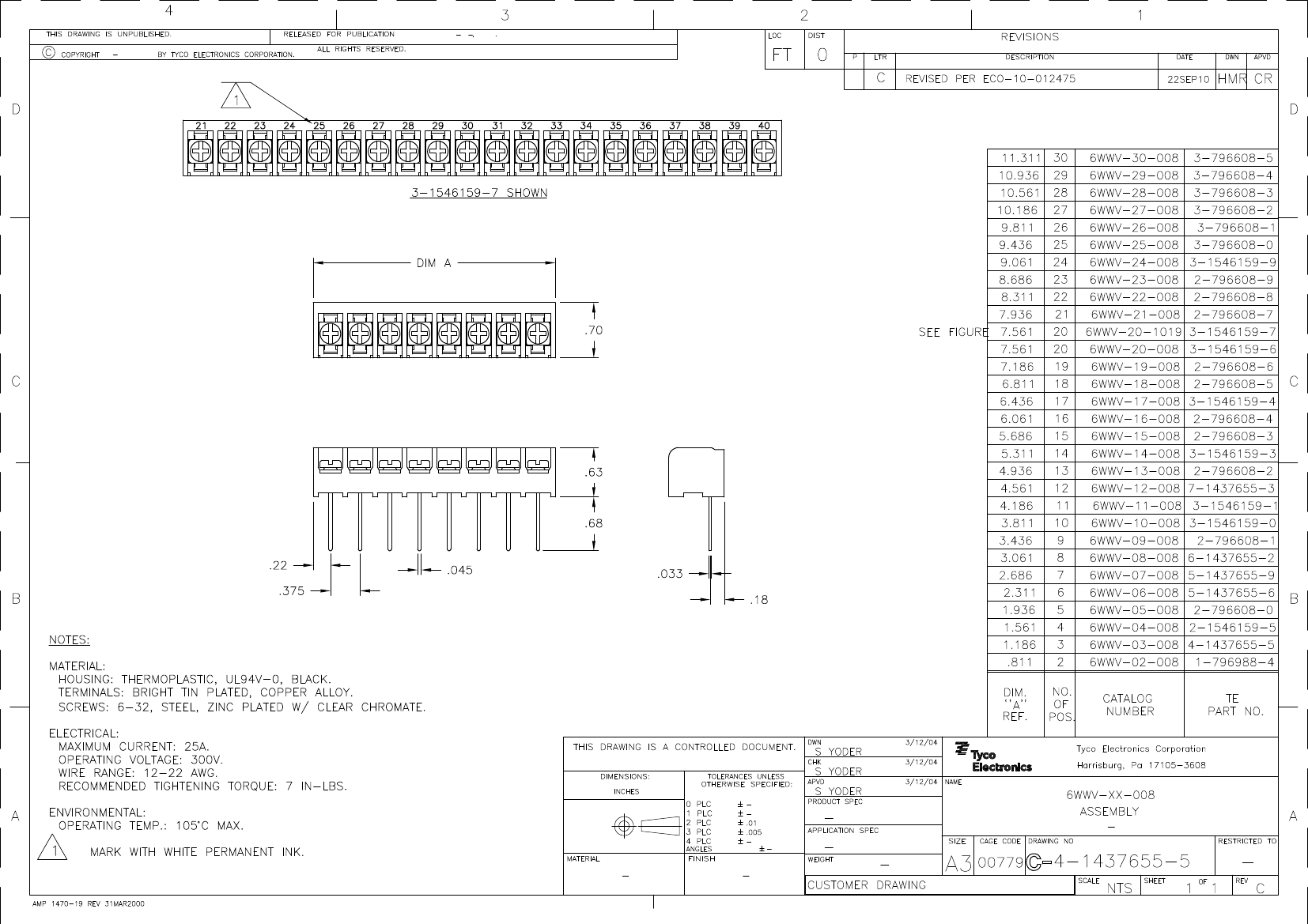

6WWV-xx-008 Assembly
RoHS Informati
3-1546159-1 Statement of Compliance
RoHS 2 Stateme
Standard Package	400
Category	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks
Packaging	Bulk
Terminal Block Type	Barrier Block
Number of Circuits	11
Number of Wire Entries	11
Pitch	0.375" (9.53mm)
Number of Rows	1
Current Rating	25A
Voltage Rating	300V
Wire Gauge	12-22 AWG
Top Terminati	Screws with Captive Plate
Bottom Terminati	Wire W
Barrier Type	3 Wall (Tri)
Features	-
Col	Black
Terminal Screw Material	Steel
Terminal Screw Finish	Zinc, Clear Chromate
Mounting Type	Through Hole
Operating Temperature	105°C
Material - Insulati	Thermoplastic
Material Flammability Rating	UL94 V-0
Other Names	6WWV-11-008

Preview

Download Datasheet

View All

3-1546159-1 Related Products

	3-1546159-1	6WWV-20-008	6WWV-14-008	6WWV-03-008	3-1546159-7	6-1437655-2	5-1437655-9	2-796608-0	1-796988-4
Description	term block 11circ vert WW .375	term block 20circ vert WW .375	tri-barrier StriP 14circ .375	conn barrier block 3circ 9.53mm	term block 20circ vert WW .375	conn barrier block 8circ 9.53mm	conn barrier block 7circ 9.53mm	conn barrier strip 5circ vert	conn barrier block 2circ 9.53mm
Standard Package	400	30	168	210	1,050	270	540	750	720
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Terminal Block Type	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block
Number of Circuits	11	20	14	3	20	8	7	5	2
Number of Wire Entries	11	20	14	3	20	8	7	5	2
Pitch	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)
Number of Rows	1	1	1	1	1	1	1	1	1
Current Rating	25A	25A	25A	25A	25A	25A	25A	25A	25A
Voltage Rating	300V	300V	300V	300V	300V	300V	300V	300V	300V
Wire Gauge	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG
Top Terminati	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate
Bottom Terminati	Wire W	Wire W	Wire W	Wire W	Wire W	Wire W	Wire W	Wire W	Wire W
Barrier Type	3 Wall (Tri)	3 Wall (Tri)	3 Wall (Tri)	3 Wall (Tri)	3 Wall (Tri)	3 Wall (Tri)	3 Wall (Tri)	3 Wall (Tri)	3 Wall (Tri)
Col	Black	Black	Black	Black	Black	Black	Black	Black	Black
Terminal Screw Material	Steel	Steel	Steel	Steel	Steel	Steel	Steel	Steel	Steel
Terminal Screw Finish	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Operating Temperature	105°C	105°C	105°C	105°C	105°C	105°C	105°C	105°C	105°C
Material - Insulati	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Other Names	6WWV-11-008	3-1546159-63-1546159-6-NDA113429	3-1546159-33-1546159-3-ND	4-1437655-54-1437655-5-NDA113645	-	6WWV-08-008	6WWV-07-008	-	6WWV-02-008
