SJE020003: Descriptionsocket junction modules; CategoryThe connector; File Size221KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

SJE020003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SJE020003	-	-	View	Buy Now

SJE020003 Overview

socket junction modules

SJE020003 Parametric

Parameter Name	Attribute value
Datasheets
SJE Socket Junction Modules
Standard Package	1
Category	Connectors, Interconnects
Family	Terminal Junction Systems
Type	Module, Diode
Contact Size	-
Module Capacity	4
Size / Dimensi	1.020" W x 1.170" H (25.91mm x 29.72mm)

Preview

Download Datasheet

View All

Electronic Socket Junction Modules

SJE Component Modules

Operating Range

Temperature:

-65ºC to 200ºC

Insulation Resistance:

5000 Megaohms Min.

Dielectric Withstanding Voltage:

1500 VRMS at Sea Level

200 VRMS at 100,000 ft.

Vibration & Shock:

Per MIL-T-81714

Paragraph 3.5.5 & 3.5.8

Socket Junction Modules

Materials

Insulator Body:

Polyethermide per ASTM-D-5205

Grommet:

Silicone Rubber per A-A-59588

Internal Contact:

Copper Alloy, Gold Finish

per SAE-AMS-MIL-G-45204

Electronic Socket Junction Modules

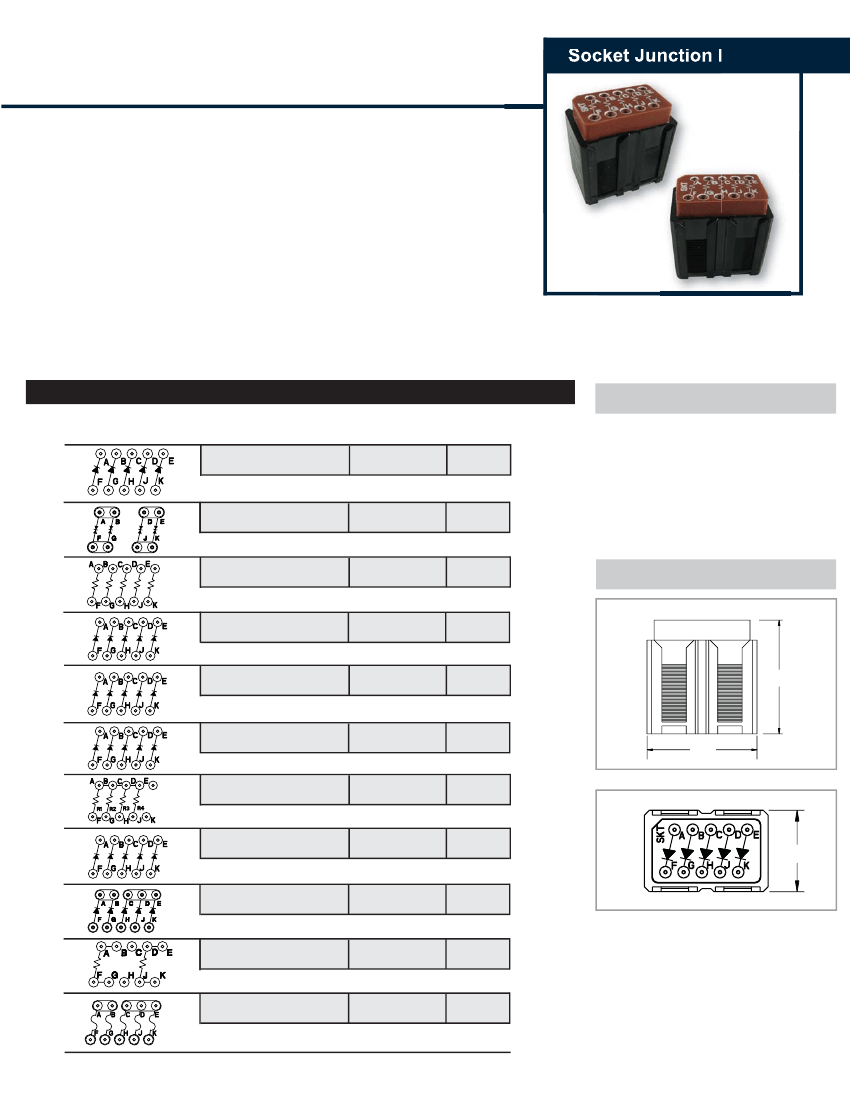

Circuit Diagram

APCD P/N

SJE020001

Component

Diode

Quantity

5

Product Descriptions

Amphenol Pcd’s Electronic Socket Junction

Modules are available with a variety of compo-

nents and in a wide range of configurations.

Components available include, but are not limited

to, diodes, resistors, fuses, thyristors, and

inductors, and are also available with multiple

components within one module. There are new

configurations produced regularly and customized

components are also available.

SJE020003

Diode

4

SJE020006

Resistor

5

Junction Module Dimensions

Side View

SJE020008

Diode

2

SJE020009

Diode

5

1.170 MAX

SJE020016

Diode

5

1.02

SJE020017

Resistor

4

Top View

SJE020022

Diode

5

.672

SJE020045

Diode

5

SJE020290

Resistor

2

SJE020297

Fuse

5

Amphenol Pcd

www.amphenolpcd.com

Milaero@amphenolpcd.com

1-978-624-3400

72 Cherry Hill Drive Beverly, MA 01915

57

SJE020003 Related Products

	SJE020003	SJE020001	SJE020006	SJE020017	SJE020045	SJE020016	SJE020022	SJE020008
Description	socket junction modules	socket junction modules electronic module assembly 5 diode	socket junction modules	socket junction modules	socket junction modules	socket junction modules	socket junction modules	socket junction modules
Standard Package	1	-	1	1	1	1	1	1
Category	Connectors, Interconnects	-	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Junction Systems	-	Terminal Junction Systems	Terminal Junction Systems	Terminal Junction Systems	Terminal Junction Systems	Terminal Junction Systems	Terminal Junction Systems
Type	Module, Diode	-	Module, Resis	Module, Resis	Module, Diode	Module, Diode	Module, Diode	Module, Diode
Module Capacity	4	-	5	4	5	5	5	2
Size / Dimensi	1.020" W x 1.170" H (25.91mm x 29.72mm)	-	1.020" W x 1.170" H (25.91mm x 29.72mm)	1.020" W x 1.170" H (25.91mm x 29.72mm)	1.020" W x 1.170" H (25.91mm x 29.72mm)	1.020" W x 1.170" H (25.91mm x 29.72mm)	1.020" W x 1.170" H (25.91mm x 29.72mm)	1.020" W x 1.170" H (25.91mm x 29.72mm)
