578-2-004-0-F-BS0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 578-2-004-0-F-BS0

Preview

578-2-004-0-F-BS0: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size347KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

578-2-004-0-F-BS0 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking

578-2-004-0-F-BS0 Parametric

Parameter Name	Attribute value
Objectid	308704460
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.37 inch
subject depth	0.63 inch
body length	0.624 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	2100VAC V
insulator material	POLYAMIDE
Manufacturer's serial number	578
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

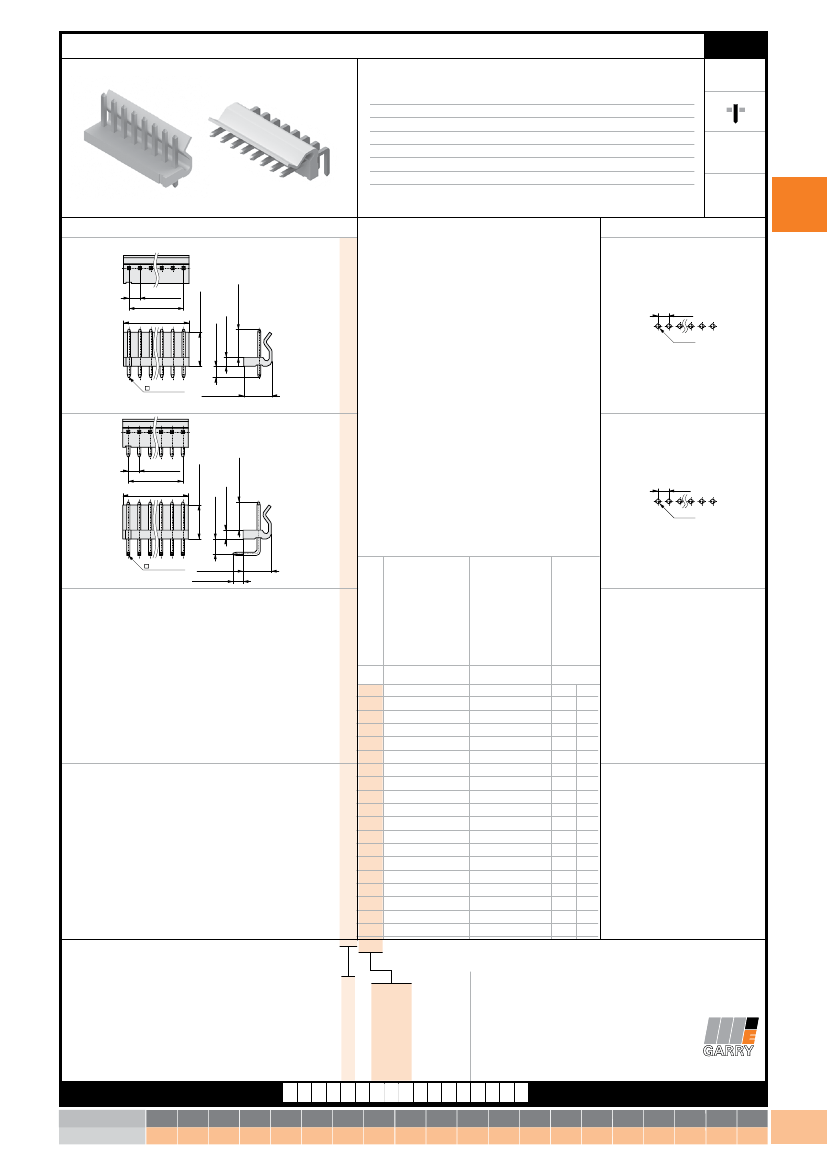

Pin Header 3,96 mm

Rated current

5,0 A

Rated voltage

250 V

RMS

/ V

DC

Withstand voltage

1500 V

RMS

for one minute

Material contact

Brass

Material insulator

PA 6.6, UL94V-0

Operating temperature -25°C to +85°C

Max. processing temper. 230°C for 5 seconds

All dimensions in mm.

Series

578

pitch

termination

contact

size

3,96

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

max.

pincount

☐

1,14

020

Product

group

Variation

PCB Layout

3

12,50±0,15

3,96±0,05

B±0,20

A±0,30

10,60±0,20

3,70±0,20

3,20±0,15

1

3,96

ø1,80

1,14±0,05

9,40±0,15

12,50±0,15

3,96±0,10

B±0,20

A±0,30

12,40±0,20

3,50±0,20

3,20±0,15

2

3,96

ø1,80

002

003

004

005

006

007

008

009

010

011

012

013

014

015

016

017

018

019

020

Plating:

T = Sn

No. of contacts

n

7,92

11,88

15,84

19,80

23,76

27,72

31,68

35,64

39,60

43,56

47,52

51,48

55,44

59,40

63,36

67,32

71,28

75,24

79,20

A

3,96

7,92

11,88

15,84

19,80

23,76

27,72

31,68

35,64

39,60

43,56

47,52

51,48

55,44

59,40

63,36

67,32

71,28

75,24

B

1

available in variation

2

1,14±0,02

9,40±0,15

3,70±0,20

see figure left

Variation

(1,2)

Plating (T,F)

see figure left

no. of pins

www.mpe-connector.de

Order code:

Mating series

see page

578-?-???-0-T-BS0

577

3-73
