3M
™
MetPak
™
2-FB Socket

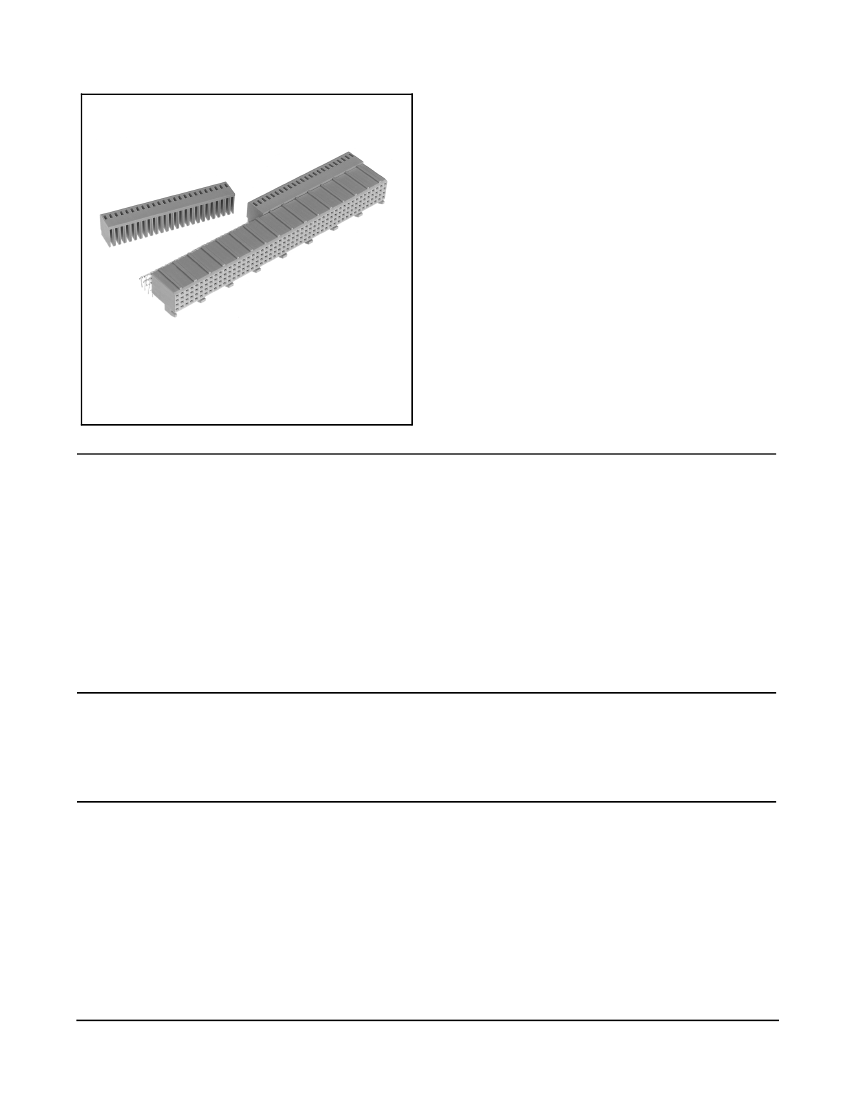

2 mm 4/5-Row, Solder Tail or Press-Fit With Tail Cover, Right Angle
MP2 Series
• End-to-end stackable
• Offset dual-beam contact minimizes
insertion force
• Expanded pin counts
• Protective Push-Cap
• Monoblockable
• Press or heat stake peg
• 12 mm modular units
• Meets global IEC 61076-4-104
Futurebus+® standard
• See Regulatory Information Appendix (RIA)
for chemical compliance information
Date Modified: April 11, 2007
TS-1115-06
Sheet 1 of 4
Physical
Insulation
Material: High Temp LCP
Flammability: UL 94V-0
Color: Beige
Contact
Material: Copper Alloy
Plating
Underplating: 50
μ″
(1.27
μm)
Nickel
Wiping Area: See Ordering Information
Solder Tails: See Ordering Information
Electrical
Current Rating:
Signal: 1.5 A - All contacts simultaneously
Insulation Resistance:
10
3
MΩ
Withstanding Voltage:
1000 V
AC
Environmental
Temperature Rating:
-55°C to +125°C
Process Temperature Rating:
260°C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
MetPak is a trademark of 3M Company
Futurebus+ is a registered trademark of the Institute of Electrical and Electronic Engineers, Inc. (IEEE)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Socket

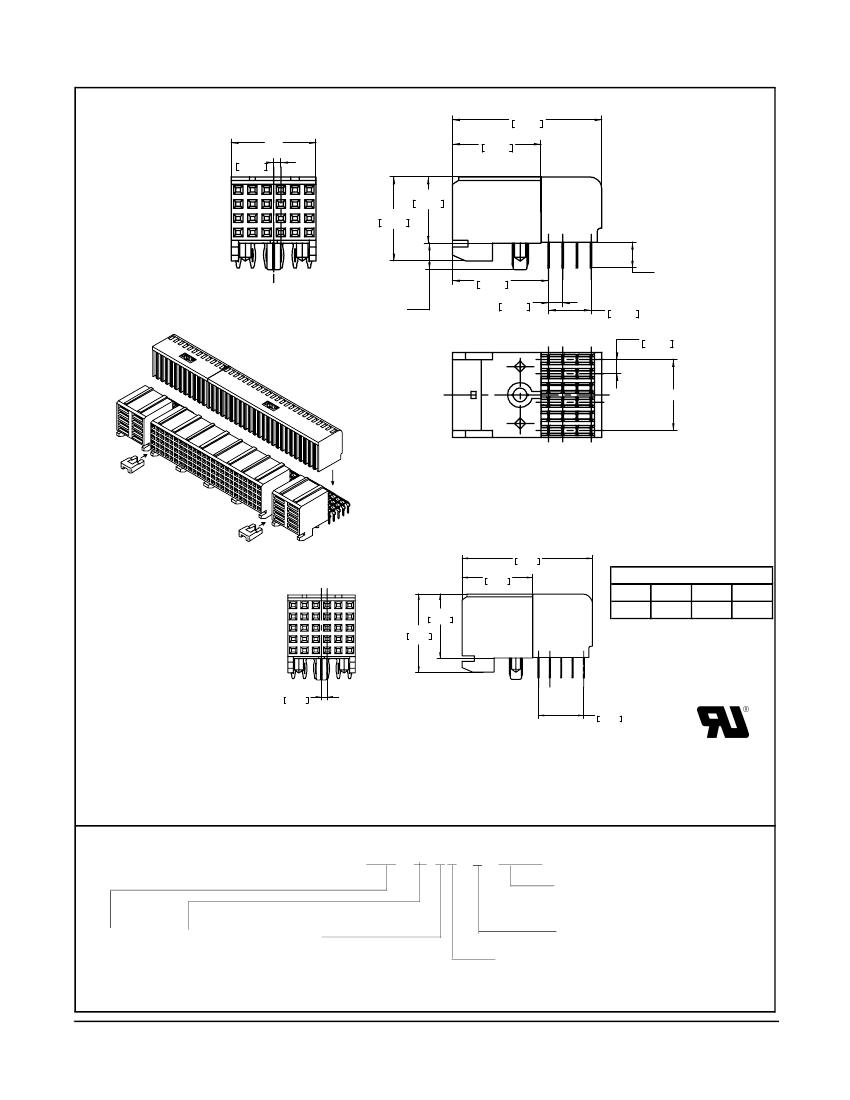

2 mm 4/5-Row, Solder Tail or Press-Fit With Tail Cover, Right Angle
21.00
.827
"A"
1.00
.039
9.30
.366
12.45
.490
MP2 Series
11.80
.465
X
2 1
"D" POST LENGTH
13.50
.531
2.00
.079
TYP.
"C" TAIL LENGTH
6.00
.236
2.00
.079
TYP.
"B"
4 ROW PRODUCT
mm
23.00
.906
[inch]
Tolerance Unless Noted
0
0.0
±0.3
0.00
±0.13
mm
±3
ROW
E
D
C
B
A
11.30
.445
13.80
.543
12.45
.490
FOR SPECIAL MONOBLOCKS
CONTACT 3M SALES
REPRESENTATIVE
[ ] Dimensions for Reference Only
1.00
.039
5 ROW PRODUCT
8.00
.315
Note:
1. Refer to IEC 61076-4-104 Futurebus+® global standard.
2. "Press Fit" describes a contact tail having a compliant section designed to make a reliable electrical connection with a plated through-hole
(PTH) in a printed circuit board, typically a "back plane.”
Ordering Information
MP2 - SXXX - X1XX - X - XXXX
Plating Options:
(See Table 3)
C = Capped Solder Tail
Blank = Press-Fit
Tail Length
(See Table 2)
TS-1115-06
Sheet 2 of 4
Contact Count
(See Table 1)
Rows
4 = 4 Rows
5 = 5 Rows
Termination Style
M = Solder Tail (Press Peg)
S = Solder Tail (Heat Stake)
H = Solder Tail, Special high retention
(press peg requiring arbor press for PCB assembly)
(Contact 3M Sales Rep)
P = Press Fit (w/ Tail Cover)
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Socket
2 mm 4/5-Row, Solder Tail or Press-Fit With Tail Cover, Right Angle
Table 1 - Connector & Row Lengths
Pin
Count
024
048
072
096
120
144
168
192
030
060
090
120
150
180
210
240
Dim. "A"
mm [inch]
11.95
23.95
35.95
47.95
59.95
71.95
83.95
95.95
11.95
23.95
35.95
47.95
59.95
71.95
83.95
95.95
[0.471]
[0.943]
[1.415]
[1.889]
[2.36]
[2.833]
[3.305]
[3.778]
[0.471]
[0.943]
[1.415]
[1.888]
[2.361]
[2.833]
[3.305]
[3.778]
Dim "B"
mm [inch]
10.00
22.00
34.00
46.00
58.00
70.00
82.00
94.00
10.00
22.00
34.00
46.00
58.00
70.00
82.00
94.00
[0.394]
[0.866]
[1.339]
[1.811]
[2.283]
[2.756]
[3.228]
[3.701]
[0.394]
[0.866]
[1.339]
[1.811]
[2.283]
[2.756]
[3.228]
[3.701]
Rows
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
Block
Count
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
MP2 Series
Table 2 - Tail & Post Lengths
Contact-to-PC Board Tail
Termination Option No.
Solder
S1
S2
M1
M2
H1
H2
*Compliant-Pin Tail
P1
Press-Fit*
2.72
3.53
2.72
3.53
2.72
3.53
[0.107]
[0.139]
[0.107]
[0.139]
[0.107]
[0.139]
5.20
5.20
3.57
3.57
3.75
3.75
[0.205]
[0.205]
[0.141]
[0.141]
[0.148]
[0.148]
Dim. "C"
Dim. "D"
Table 3 - Plating
Plating
Suffix
TG
Press-Fit Tails*
(RIA E2 & C2
apply)
Solder Tails
(RIA E3 & C2
apply)
Plating Composition
0.25 µm [10 µ"] Min. Au Contact Area
2.54 µm [100 µ"] Min. SnPb Tail Area
1.27 µm [50 µ"] Min. Ni all over
TG30
(RIA E2 & C2
apply)
(RIA E3 & C2
apply)
0.76 µm [30 µ"] Min. Au Contact Area
2.54 µm [100 µ"] Min. SnPb Tail Area
1.27 µm [50 µ"] Min. Ni all over
0.08 µm [3 µ"] Min. Au Contact Area
TR30
(RIA E2 & C2
apply)
(RIA E3 & C2
apply)
0.67 µm [27 µ"] Min. PdNi Contact Area
2.54 µm [100 µ"] Min. SnPb Tail Area
1.27 µm [50 µ"] Min. Ni all over
0.13 µm [5 µ"] Min. Hard Au Contact Area, Lubricated
TR40B
(RIA E2 & C2
apply)
(RIA E3 & C2
apply)
1.02 µm [40 µ"] Min. PdNi Contact Area
0.10 µm [4 µ"] Min. Pd Contact Area
2.54 µm [100 µ"] Min. SnPb Tail Area
1.27 µm [50 µ"] Min. Ni all over
FJ
(RIA E1 & C1
apply)
(RIA E1 & C1
apply)
0.25 µm [10 µ"] Min. Au Contact Area
5.08 µm [200 µ"] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ"] Min. Ni all over
KR
(RIA E1 & C1
apply)
(RIA E1 & C1
apply)
0.76 µm [30 µ"] Min. Au Contact Area
5.08 µm [200 µ"] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ"] Min. Ni all over
RF
(RIA E1 & C1
apply)
(RIA E1 & C1
apply)
1.27 µm [50 µ"] Min. Au Contact Area, Lubricated
5.08 µm [200 µ"] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ"] Min. Ni all over
0.08 µm [3 µ"] Min. Au Contact Area
LR
(RIA E1 & C1
apply)
(RIA E1 & C1
apply)
0.67 µm [27 µ"] Min. PdNi Contact Area
5.08 µm [200 µ"] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ"] Min. Ni all over
0.13 µm [5 µ"] Min. Hard Au Contact Area, Lubricated
PD
(RIA E1 & C1
apply)
(RIA E1 & C1
apply)
1.02 µm [40 µ"] Min. PdNi Contact Area
0.10 µm [4 µ"] Min. Pd Contact Area
5.08 µm [200 µ"] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ"] Min. Ni all over
*Compliant-Pin Tail
TS-1115-06
Sheet 3 of 4
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Socket
2 mm 4/5-Row, Solder Tail or Press-Fit With Tail Cover, Right Angle
MP2 Series
6.00
.236
4.00
.157
1.00
.039
THESE HOLES CONSTITUTE MODULAR
REPEATING PATTERN
2.00
.079
2.00
.079
TYP.
3X
A1
4.00
.157
"B"
12.00
.472
2.05
+.05
l O
0.10
-.00
.081
+.002
-.000
UNPLATED THROUGH-HOLE
UNPLATED THRU HOLE
O
“D”
"D" PLATED THRU HOLE
PLATED THROUGH-HOLE
l O
0.10
3.00
.118
1.50
+.10
l O
0.10
-.00
.059
+.004
-.000
UNPLATED THROUGH-HOLE
UNPLATED THRU HOLE
O
2.00
.079
4X
8.00
.315

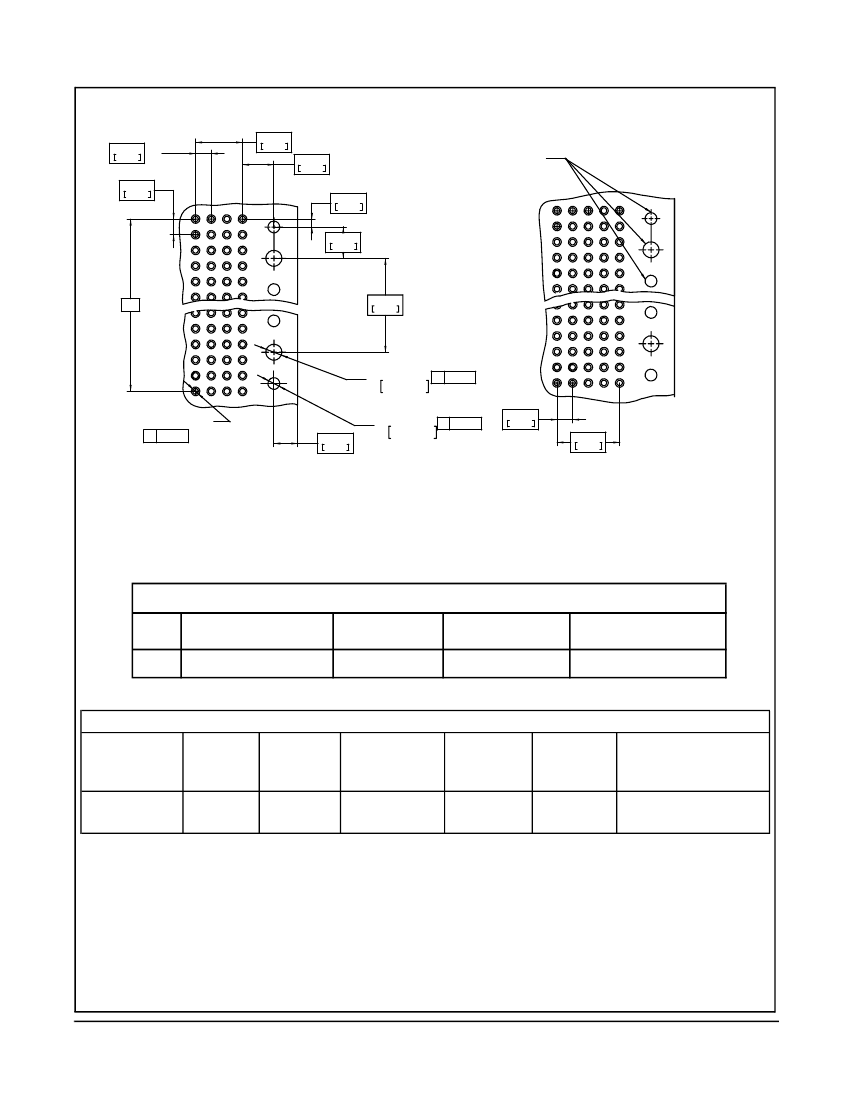

RECOMMENDED 4 ROW PCB HOLE
MOUNTING PATTERN
RECOMMENDED 5 ROW PCB HOLE
MOUNTING PATTERN
Table 4 -- HOLE PLATING For TG, TG30, TR30, TR40B FINISHES ONLY
HOLE
"D"
Finished Dia.
mm [in]
0.65-0.80 [.0256-.0315]
Cu Thickness
mm [in]
0.025 [.001] min
SnPb Thickness
microns [µ"]
15 [600] max
Drilled Hole Dia.
mm [in]
0.81-0.86 [.0319-.0339]
Table 5 -- HOLE PLATING For FJ, KR, RF, LR, and PD FINISHES ONLY
Hole
Finished Dia.
mm [in]
0.700-0.800
[.0276-.0315]
Cu Thickness
mm [in]
0.025-0.045
[0.001-0.002]
Immersion Matte Sn
Thickness
microns [µ"]
0.5 - 2.5
[20 - 100]
Electrolitic Au
Thickness
microns [µ"]
0.1 - 0.5
[4 - 20]
OSP ENTEK
Thickness
microns [µ"]
0.2 - 0.5
[8 - 20]
Drilled Hole Dia.
mm [in]
0.830-0.860 [.0330-.0340] or
0.85mm [ #66] TW IST DRILL
"D"
TS-1115-06
Sheet 4 of 4
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
