DNFR18-205B-C: Descriptionconn QC rcpt 18-22awg 0.187; CategoryThe connector; File Size63KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

DNFR18-205B-C Overview

conn QC rcpt 18-22awg 0.187

Parameter Name	Attribute value
Datasheets

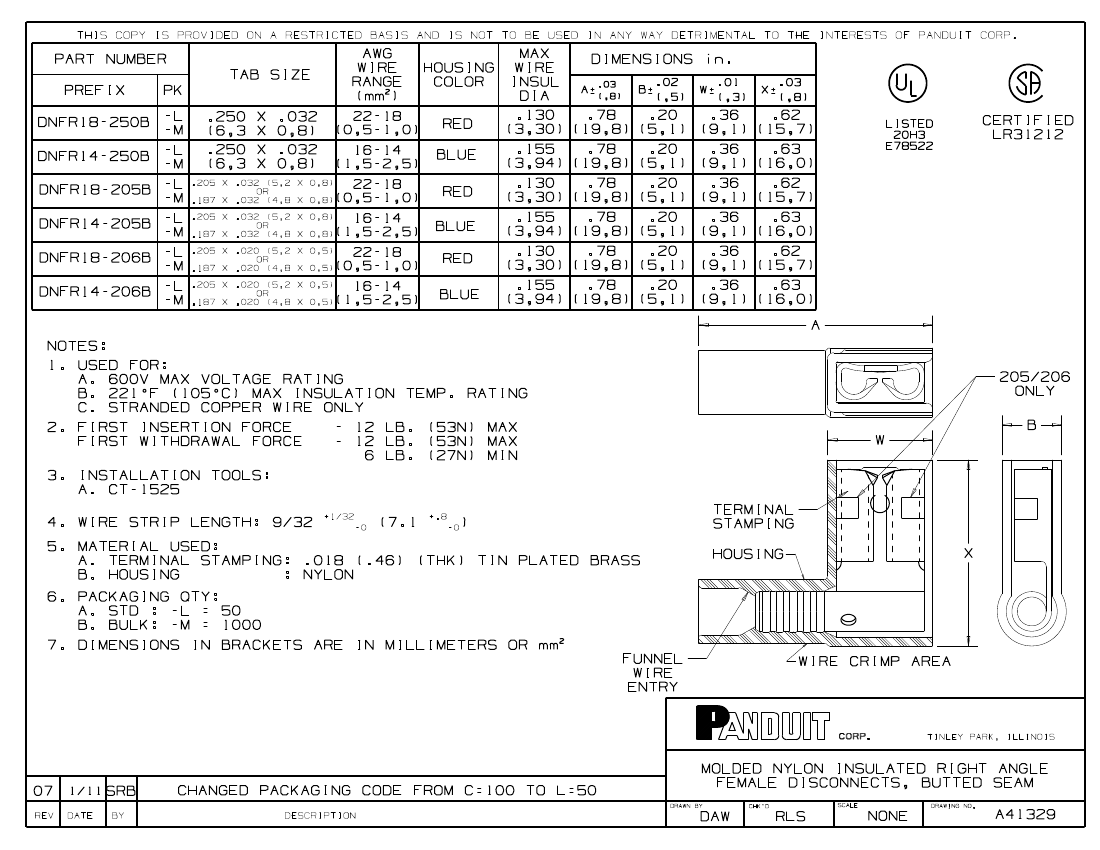

DNFR14, DNFR18 Drawing
Standard Package	100
Category	Connectors, Interconnects
Family	Terminals - Quick Connects, Quick Disconnect Connectors
Packaging	Bulk
Terminal Type	Angled - 90°, Flag
Gende	Female
Tab Width	0.187" (4.75mm), 0.205" (5.21mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	-
Length - Overall	-
Terminati	Crim
Wire Gauge	18-22 AWG
Insulati	Fully Insulated
Mounting Type	Free Hanging (In-Line), Right Angle
Features	-
Col	Red
Contact Material	Brass
Contact Finish	Ti
Insulation Diamete	0.130" (3.30mm)

	DNFR18-205B-C	DNFR14-206B-X	DNFR18-206B-X	DNFR14-205B-C
Description	conn QC rcpt 18-22awg 0.187	conn QC rcpt 14-16awg 0.187	conn QC rcpt 18-22awg 0.187	conn QC rcpt 14-16awg 0.187
Standard Package	100	10	10	-
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	-
Family	Terminals - Quick Connects, Quick Disconnect Connectors	Terminals - Quick Connects, Quick Disconnect Connectors	Terminals - Quick Connects, Quick Disconnect Connectors	-
Packaging	Bulk	Bulk	Bulk	-
Terminal Type	Angled - 90°, Flag	Angled - 90°, Flag	Angled - 90°, Flag	-
Gende	Female	Female	Female	-
Tab Width	0.187" (4.75mm), 0.205" (5.21mm)	0.187" (4.75mm), 0.205" (5.21mm)	0.187" (4.75mm), 0.205" (5.21mm)	-
Tab Thickness	0.032" (0.81mm)	0.020" (0.51mm)	0.020" (0.51mm)	-
Terminati	Crim	Crim	Crim	-
Wire Gauge	18-22 AWG	14-16 AWG	18-22 AWG	-
Insulati	Fully Insulated	Fully Insulated	Fully Insulated	-
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle	-
Col	Red	Blue	Red	-
Contact Material	Brass	Brass	Brass	-
Contact Finish	Ti	Ti	Ti	-
Insulation Diamete	0.130" (3.30mm)	0.155" (3.94mm)	0.130" (3.30mm)	-
