Specifications

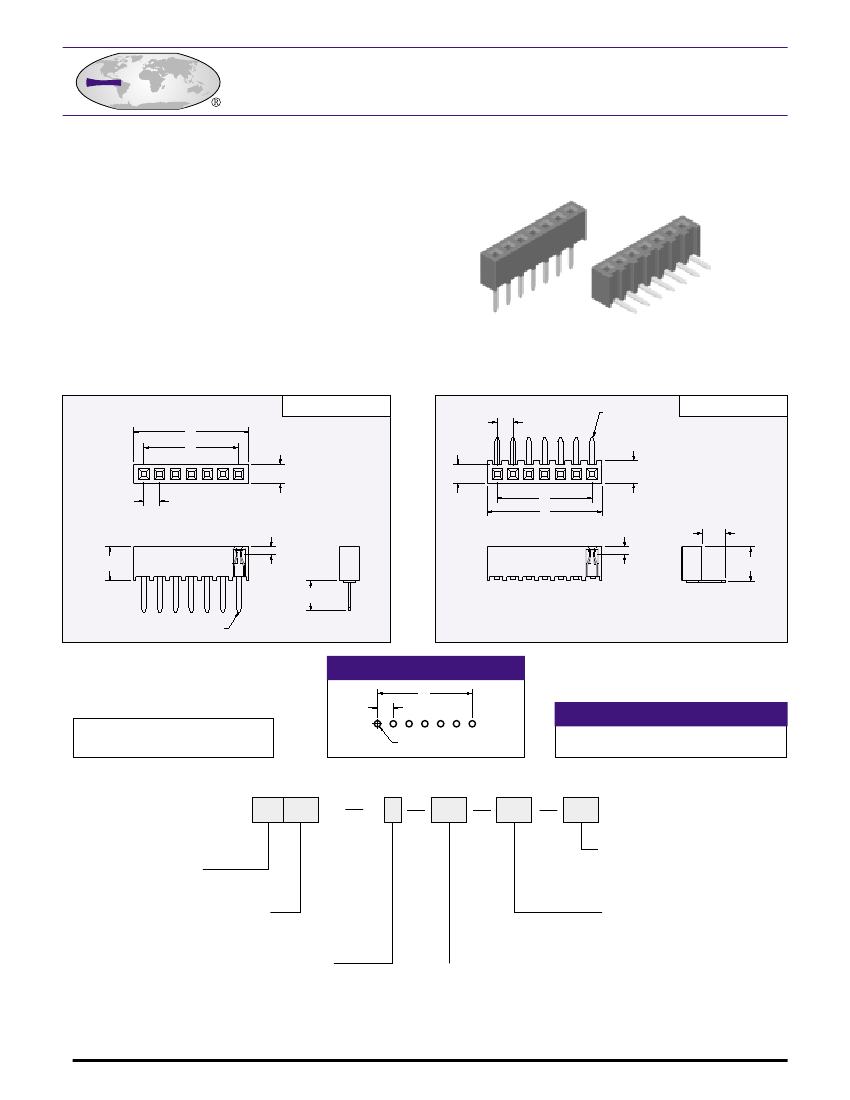

.079 [2.00] Single Row Socket
9400S Series Sockets
Insulator Material: Glass filled polyester, Thermoplastic,
94V-O Nylon-6T, UL Recognized.
Contact Material: Phosphor Bronze
Contact Plating: Gold and/or Tin over .000050” Ni
(See contact plating options)
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Operating Temperature:
-40°C To +105°C
Contact Resistance:
20 m ohms max.
Max Processing Temp.:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
STRAIGHT
A
B
.095 [2.4]
.0787 [2.0] TYP
.
.095 [2.4]
B
A
.0787 [2.0] TYP
.
.020 x.008 [.5 x.2]
RIGHT ANGLE
.110 [2.8]
.122 [3.1]
.059 [1.5]
1.69 [4.3]
.059 [1.5]
.161 [4.1]
TAIL LENGTH
.020 x.008 [.5 x.2]
DIMENSIONS ARE IN INCHES & [MM]
PCB LAYOUT
B
.0787 [2.0] TYP
.
SUGGESTED MATING CONNECTORS
A
= .020 + .0787 x No. of Pos.
B
= .0787 x (No. Of Cont. -1)
Ø.032±.002 [.80±.05]
94XX-AX-XX-XX (PAGE F-22)
94XX-C1-XX-XX (PAGE F-23)
PART NUMBERING
94 XX S
SERIES CODE
.079 SOCKETS
A X
XX
XX
XX
LOCKING LEADS
LL
= LOCKING LEADS
LEAVE BLANK FOR STANDARD
NO. OF CONTACTS
STRAIGHT :
03 - 40
RIGHT ANGLE :
03 - 25
CONTACT PLATING
.000050” Nickel underplate
CONTACT
TAIL
00
= 100µ”Sn 100µ”Sn
01
= Au Flash 100µ”Sn
03
= Au Flash Au Flash
10
= 10µ”Au
100µ”Sn
20
= 15µ”Au
100µ”Sn
30
= 30µ”Au
100µ”Sn
TAIL STYLE
1
= STRAIGHT
2
= RIGHT ANGLE
TAIL LENGTH
01
= .094 [2.40] STRAIGHT (STANDARD)
02
= .047 [1.20] STRAIGHT
05
= .122 [3.10] RIGHT ANGLE
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
