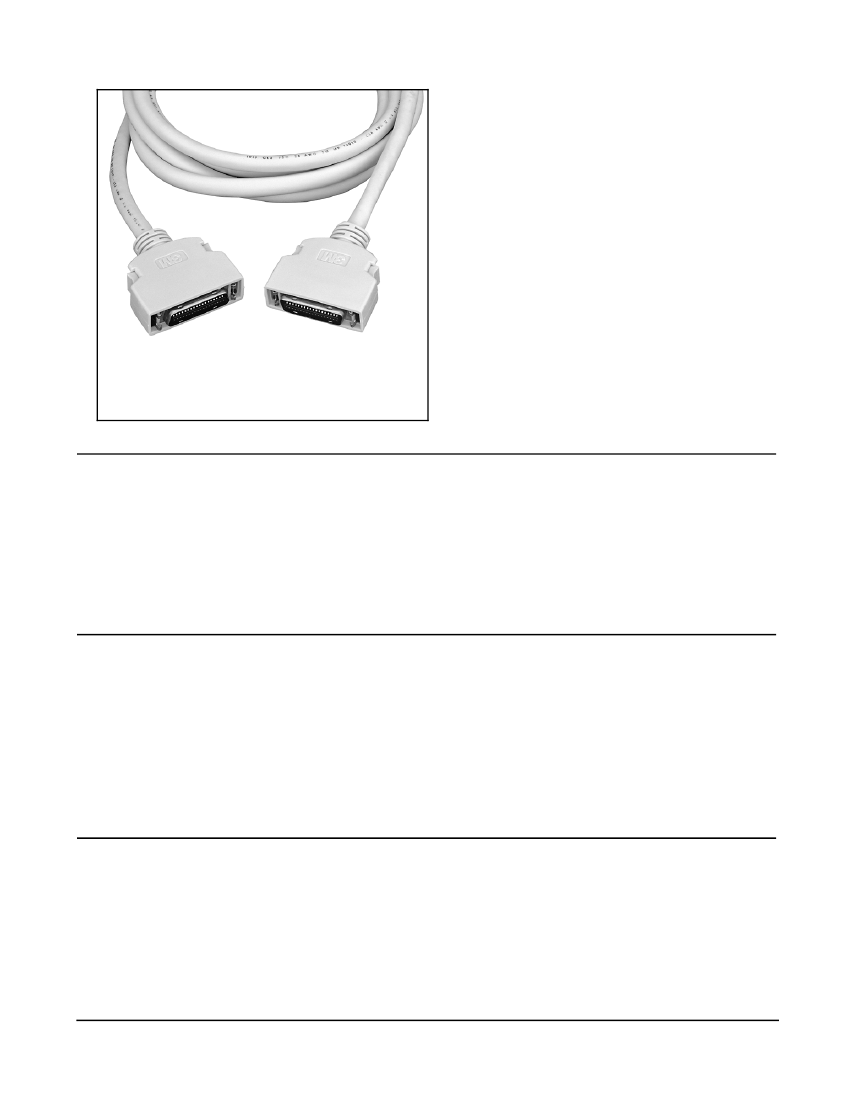

High Speed Digital Data Transmission System, 26 Position
14526-EZLB-XXX-0SC
• Solution for high speed datacom and telecom
applications
• Eight shielded differential pairs plus two
conductors for high bandwidth applications
• Each differential pair has a foil shield and drain
• Entire cable is shielded with a foil and braid for
additional signal protection
• Rugged MDR ribbon type contacts
• Quick release latches
• RoHS* compliant
Date Modified: May 29, 2006
TS-0967-04
Sheet 1 of 3
Physical
Connector Contact Plating
Wiping Area: 30
μ″
[ .76
μm
] Min Gold
Shell Color: Beige
Shell Material:
Acrylonitrile Butadiene Styrene (ABS)
Cable Color:
Beige
Cable Jacket Material:
Polyvinyl Chloride (PVC)
Cable Flammability: AWM VW-1
Electrical
Voltage Rating:
30 V
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
8
Ω
at 100 VDC
Withstanding Voltage:
350 Vrms for 1 minute
Individually Shielded Twisted Pairs
Characteristic Impedance:
100
±
10
Ω
Conductor Size:
28 AWG Stranded
Propogation Velocity:
1.25 ns/ft [4.1 ns/m ]
Environmental
Temperature Rating:
-20°C to +75°C
*RoHS = Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybromianted diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E86982
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

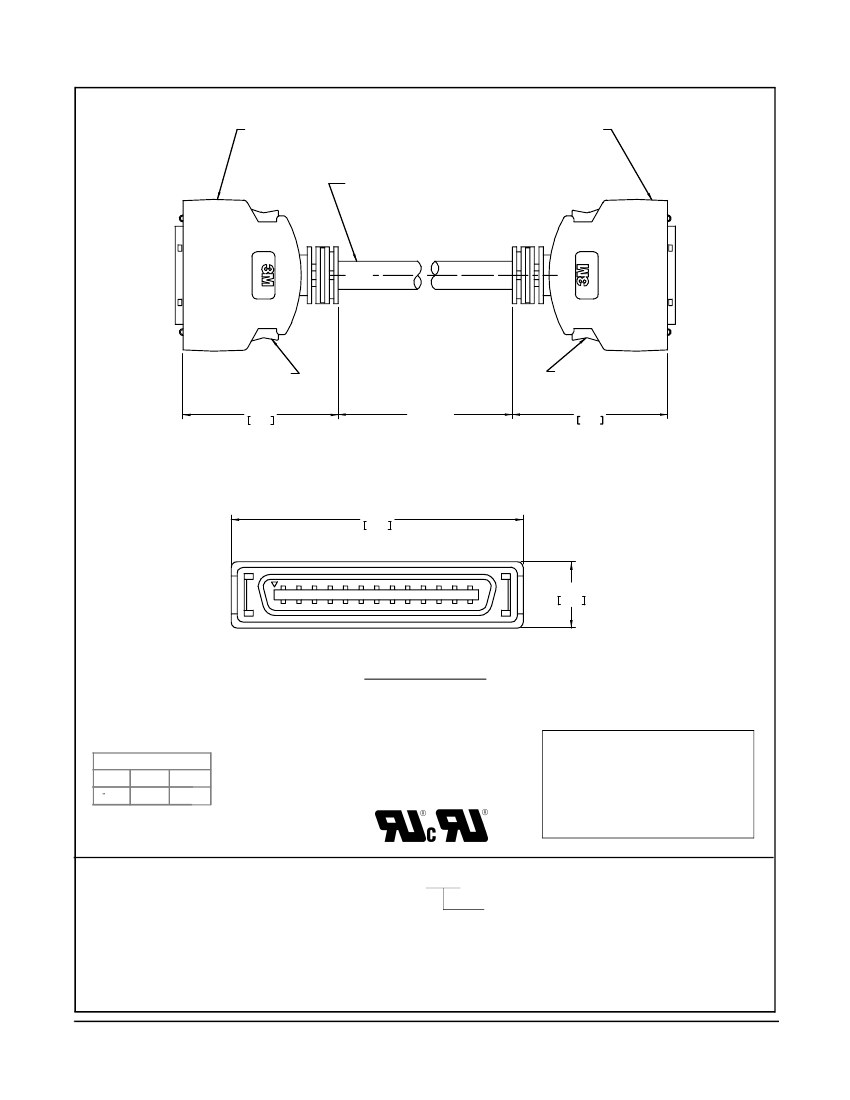

Mini D Ribbon (MDR) Cable Assembly
.050″ High Speed Digital Data Transmission System, 26 Position 14526-EZLB-XXX-0SC
26 Position High Density
Mini D Ribbon (MDR)
Male Plug
26 Position High Density
Mini D Ribbon (MDR)
Male Plug
Cable
(See wiring diagram for cable construction)
2X Squeeze Release
Latches
41.9
1.7
LENGTH
(See ordering information)
2X Squeeze Release
Latches
41.9
1.7
33.5
1.3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
11.5
0.5
MDR 26 Position Plug
( Both Ends )
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±
.1
0.00
± .10
Assembly Length Tolerance
Cable Length:
0.5 to 1.5 meters -0 + .05 meters
2 to 10 meters -0 +3% of length
[ ] Dimensions for
Reference only
Ordering Information
14526-EZLB-XXX-0SC
Length:
050 = .5 meters
100 = 1 meters
150 = 1.5 meters
200 = 2 meters
250 = 2.5 meters
300 = 3 meters
350 = 3.5 meters
400 = 4 meters
500 = 5 meters
600 = 6 meters
700 = 7 meters
800 = 8 meters
900 = 9 meters
A00 = 10 meters
TS-0967-04
Sheet 2 of 3
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Cable Assembly
.050″ High Speed Digital Data Transmission System, 26 Position 14526-EZLB-XXX-0SC

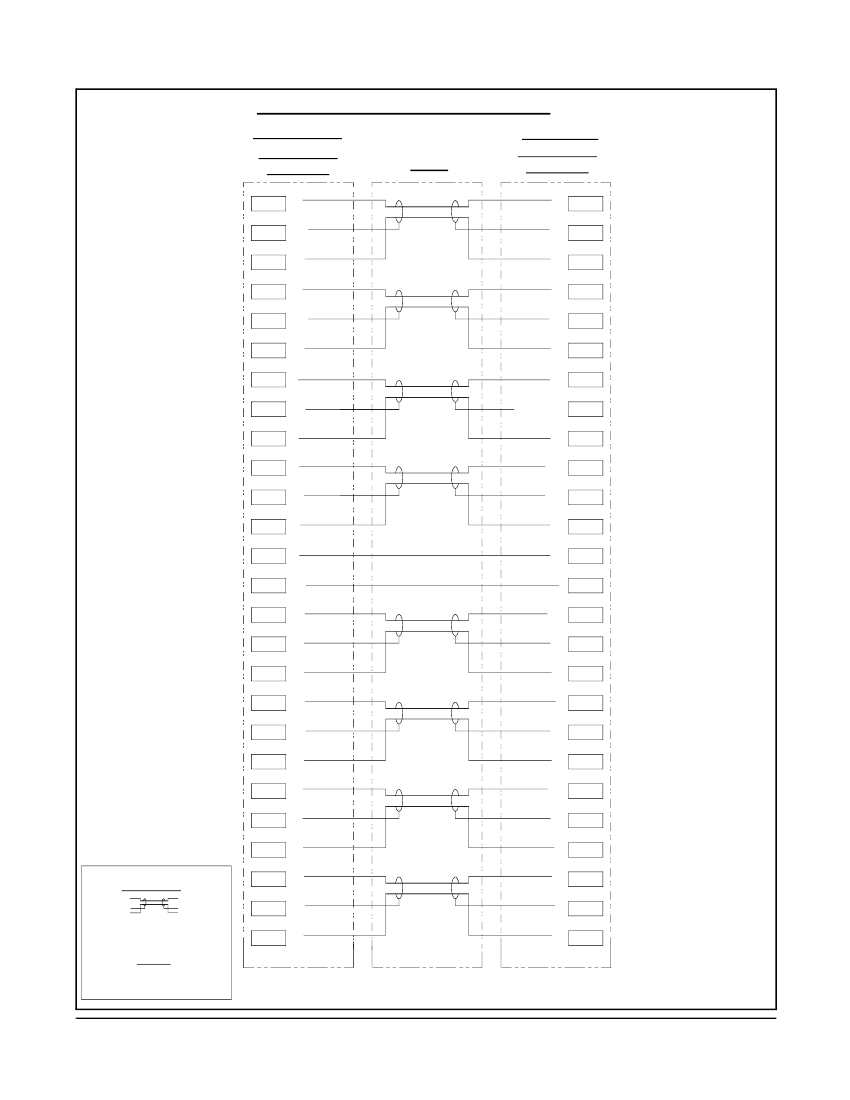

MDR 26 Position, Pinout F26-26 rev 1
Transmitter (Tx)
3M MDR SMT
Receptacle
1
ATxOut0-
14
ATxOut0Gnd
2
ATxOut0+
15
ATxOut1-
3
ATxOut1Gnd
16
ATxOut1+
4
ATxOut2-
17
ATxOut2Gnd
5
ATxOut2+
18
ATxClkOut-
6
ATxClkOutGnd
19
ATxClkOut+
7
CTL_1
20
CTL_2
8
BTxOut0-
21
BTxOut0Gnd
9
BTxOut0+
22
BTxOut1-
10
BTxOut1Gnd
23
BTxOut1+
11
BTxOut2-
24
BTxOut2Gnd
12
BTxOut2+
Symbols Key:
25
BTxClkOut-
13
BTxClkOutGnd
26
BTxClkOut+
Cable
Receiver (Rx)
3M MDR SMT
Receptacle
26
ARxIn0-
13
ARxIn0Gnd
25
ARxIn0+
12
ARxIn1-
24
ARxIn1Gnd
11
ARxIn1+
23
ARxIn2-
10
ARxIn2Gnd
22
ARxIn2+
9
ARxClkIn-
21
ARxClkInGnd
8
ARxClkIn+
20
CTL_1
7
CTL_2
19
BRxIn0-
6
BRxIn0Gnd
18
BRxIn0+
5
BRxIn1-
17
BRxIn1Gnd
4
BRxIn0+
16
BRxIn2-
3
BRxIn2Gnd
15
BRxIn2+
2
BRxClkIn-
14
BRxClkInGnd
1
BRxClkIn+
100 Ohm balanced
individually shielded
twisted pair w/drain
•
28 AWG insulated
conductor
TS-0967-04
Sheet 3 of 3
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations
related to 3M’s products are based on information believed to be
reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if it
is suitable for your intended application. You assume all risks and
liability associated with such use. Any statements related to the
product which are not contained in 3M’s current publications, or
any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing,
by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and
manufacture for a period of one (1) year from the time of
purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to
replace or repair the 3M product or refund the purchase price of
the 3M product.
Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential
loss or damage arising from this 3M product, regardless of
