8Q-38.400MAAV-T

Description
crystal 38.4mhz 8pf smd
CategoryPassive components
File Size1001KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric View All

8Q-38.400MAAV-T Overview

crystal 38.4mhz 8pf smd

8Q-38.400MAAV-T Parametric

Parameter NameAttribute value
Datasheets
Quartz Crystal Part Number Guide
8Q Series
Product Photos
8Q 4-SMD, no-lead
Standard Package3,000
CategoryCrystals and Oscillators
FamilyCrystals
PackagingTape & Reel (TR)
TypeMHz Crystal
Frequency38.4MHz
Frequency Stability±30ppm
Frequency Tolerance±30ppm
Load Capacitance8pF
ESR (Equivalent Series Resistance)80 Ohm
Operating ModeFundamental
Operating Temperature-20°C ~ 70°C
Ratings-
Mounting TypeSurface Mou
Package / Case4-SMD, No Lead (DFN, LCC)
Size / Dimensi0.063" L x 0.047" W (1.60mm x 1.20mm)
Heigh0.016" (0.40mm)
Think of Frequency Think of
come visit our site http://www.txccorp.com
Features
4 pads SMD glass sealed crystal.
Applications in wireless communication ,DSC and USB interface card.
Excellent heat resistance and environmental characteristics.
Contain Pb in sealing glass exempted by RoHS directive.
26001
T u
M

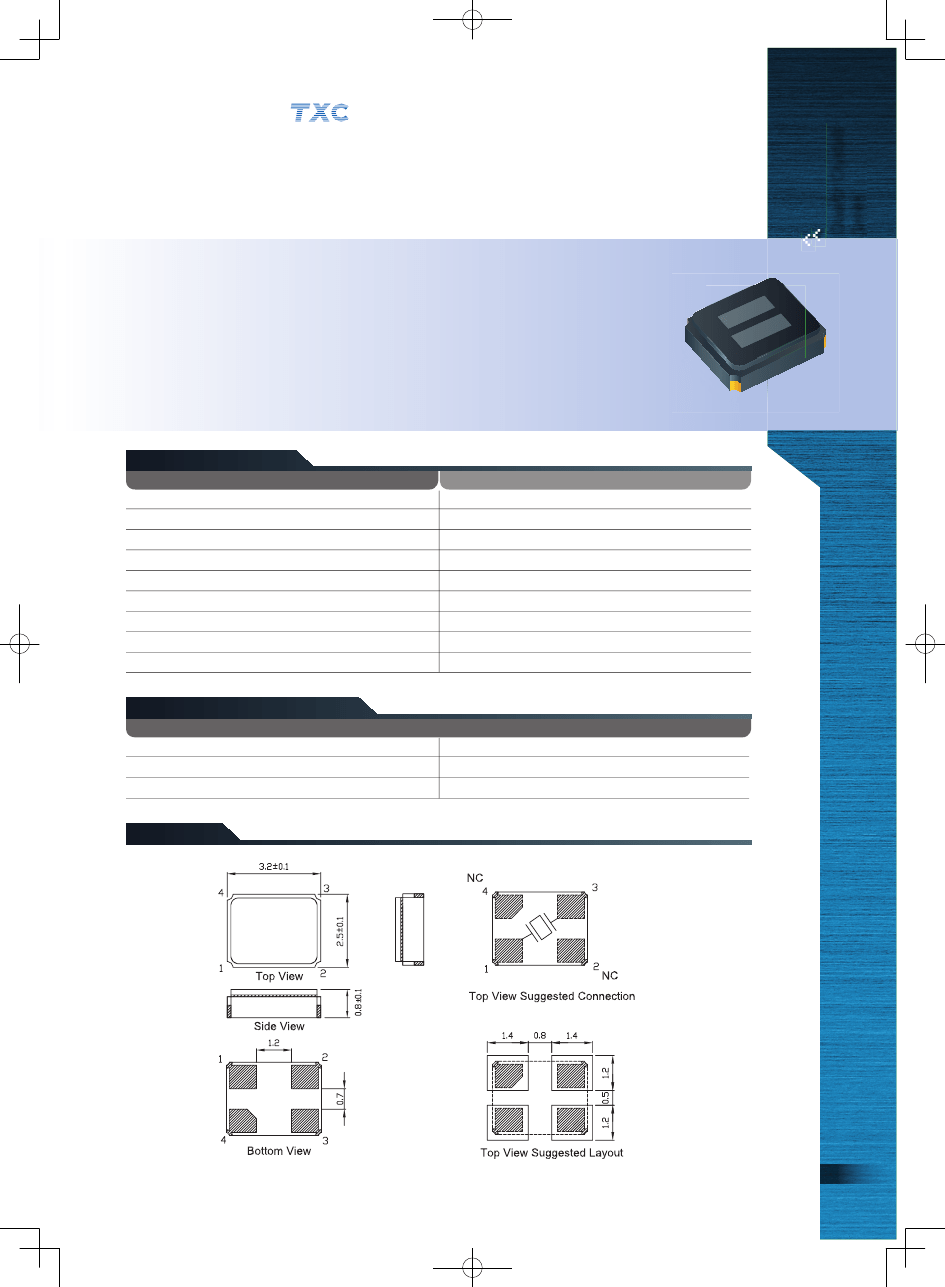

Electrical Specifications
Item / Type
Frequency Range
Frequency Tolerance (at 25
)
Frequency Stability Over Operating Temperature Range
Operating Temperature Range
Shunt Capacitance (C0)
Drive Level
Load Capacitance
Aging (at 25
)
Storage Temperature Range
7V
9.9 ~ 54 MHz
±
30 ppm, or specify
±
30 ppm, or specify
-10 ~ +70
, or specify
3 pF Max.
1 ~ 50
μ
W (10
μ
W typical)
8 pF, 10 pF, or specify
±
3 ppm / year Max.
- 40 ~ + 85
Equivalent Series Resistance(ESR)
Fundamental
9.9 ~ 12 MHz 150
Ω
Max.
12 ~ 16 MHz 100
Ω
Max.
16 ~ 54 MHz
60
Ω
Max.
Dimensions
Units: mm
Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
