ED3001/5-KD

Description
terminal block 5mm 5pos pcb
CategoryThe connector
File Size655KB,1 Pages
ManufacturerOn-Shore Technology ( OST )
Websitehttp://www.on-shore.com
Environmental Compliance
Download Datasheet Parametric View All

ED3001/5-KD Overview

terminal block 5mm 5pos pcb

ED3001/5-KD Parametric

Parameter NameAttribute value
Datasheets
ED(Z)3001/--FD
ED3001/X-KD
Product Photos
ED3001/5-KD
Catalog Drawings
ED3001 F
ED3001 Series Side
Standard Package50
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Wire to Board
PackagingBulk
Number of Levels1
Positions Per Level5
Pitch0.197" (5.00mm)
Mating Orientati45° (135°) Angle with Board
Curre16A
Voltage300V
Wire Gauge14-28 AWG
Mounting TypeThrough Hole
Wire TerminatiScrewless - Leg Spring, Push-In Spring
FeaturesInterlocking (Side), Lever Actuated
ColGray, Slate
Operating Temperature-30°C ~ 105°C
Housing MaterialPolyamide (PA), Nyl
Contact Material - PlatingCoppe
Clamp Material - Plating-
Screw Material - Plating-
Torque - Screw-
Screw Thread-
Dynamic CatalogED3000, ED3001/FD, ED3001/KD and ED3101/WD Series
Other NamesED2262ED30015KD

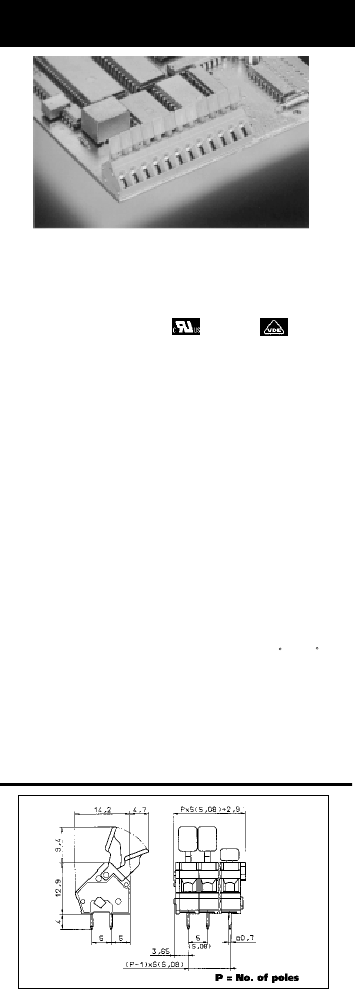

ED3001/X-FD
1-n poles, Spacing 5.0 mm adjustable to 5.08 mm
insert required no. of poles
x
How to order see page 5
Ratings:
Rated Voltage
Rated Current
Wire Size
Test Voltage
Max. Rated Cross Section
Single Wire (solid)
Stranded Wire (flexible)
Stranded wire with Ferrules
Dimensions
Spacing
PCB Hole Diameter
Stripped Length
Materials
Insulating Material
Flammability Class
Temperature Range
Cage Clamp
Wire Guard
Color
Slade Grey
300 V
16 A
AWG 28-14
250 V
24 A (T60)
2.5 mm
2
2.0 kV
2.5 mm
2
2.5 mm
1.5 mm
2
2
5.0 mm (5.08 mm)
1.0 mm (2x)
6.0 mm
PA
UL94 V-0
-30 C/+105 C
Stainless Steel
Cu
