Frontier Electronics Corp.

685 E. COCHRAN STREET, SIMI VALLEY, CA 93065

TEL: (805) 522-9998 FAX: (805) 522-9989

E-mail: frontiersales@frontierusa.com

Web: frontierusa.com

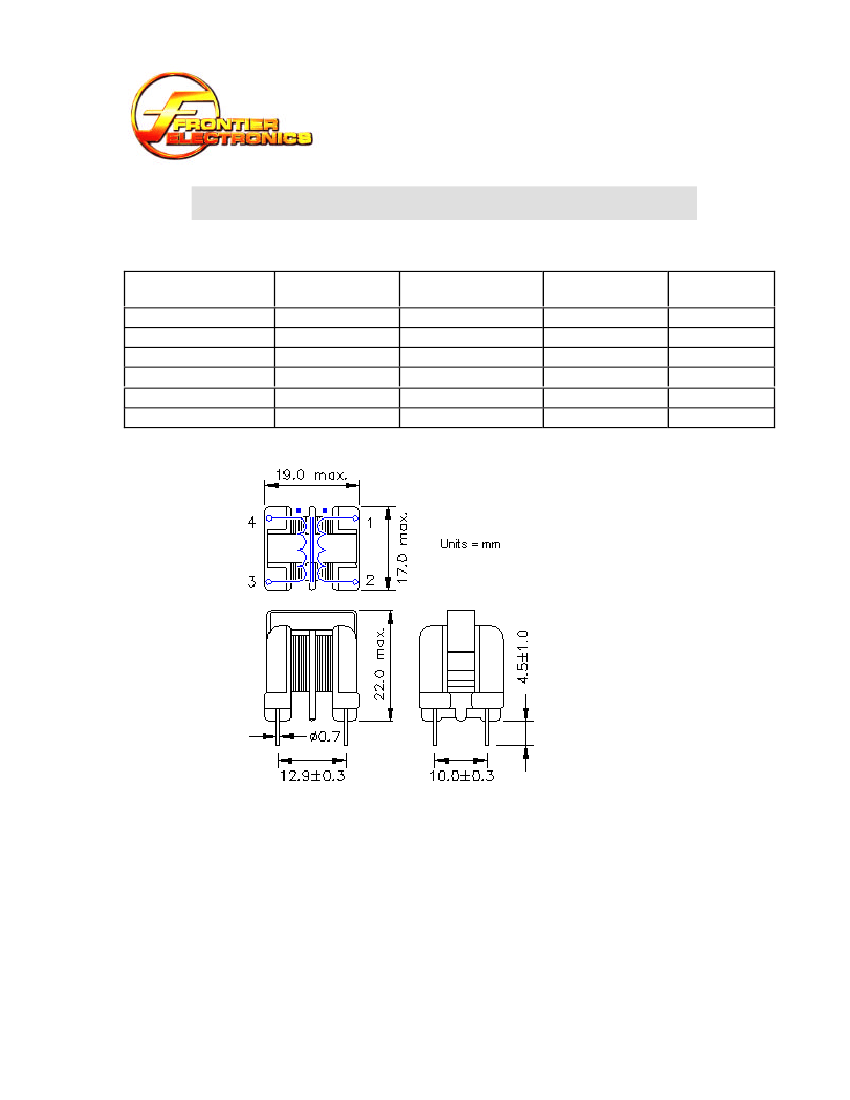

Common Mode Line Filters—

CFU1101 series

A. Specifications:

Part

Number

CFU1101-01

CFU1101-02

CFU1101-03

CFU1101-04

CFU1101-05

CFU1101-06

Inductance

(mH)

2 x 3.0

2 x 1.5

2x8

2 x 20

2 x 1.0

/ L1-L2/

(uH) Max.

80

200

80

DCR

(OHMS) Max.

0.5

0.15

0.65

1.2

1.8

0.1

Rated Current

(A) rms.

0.9

1

0.8

0.7

0.5

2.9

B.

Mechanical Dimensions:

C. General information:

1.

2.

3.

4.

5.

6.

7.

Test Condition: 1.0KHz / 1V.

Electrical specifications at 25°C.

Temperature Rise: 40°C.

Operating temperature: -20°C TO +105°C.

Insulation Resistance: 100M OHMS at 500VDC.

Rated Voltage: 100V to 270V / 50-60 Hz.

Hi-Pot Voltage: 1500VAC for one minute.

.

Custom specifications are available.

Common Mode Line Filter P/N: CF1101 Series

Apr. 15, 2002 Page 1 of 1
