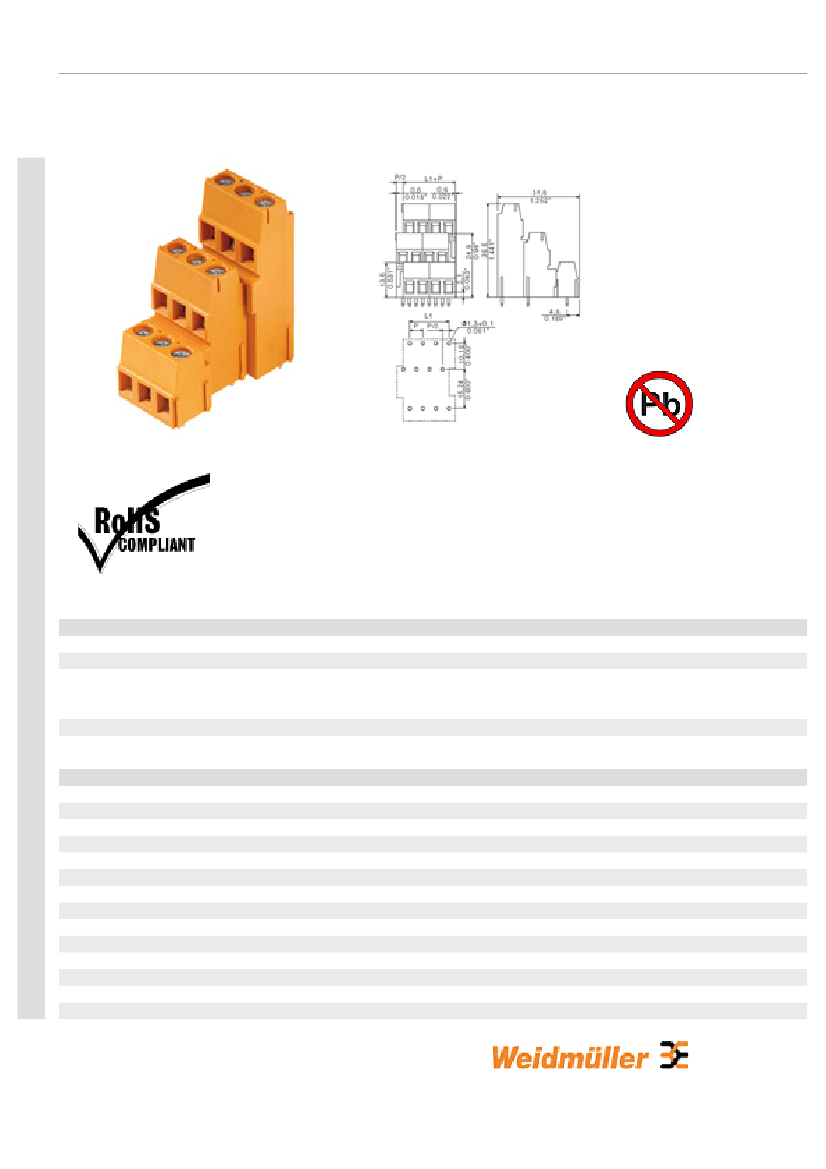

Product catalogue | PCB connection systems | PCB terminals | Clamping yoke connection | LM 5.08 multiple lines | LM3R
5.08
System parameters
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Temperature of glow-wire test
Duration of glow-wire test
Contact base material
Contact surface
Storage temperature, min.
Storage temperature, max.
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
O.D. of conductor insulation, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
6 mm
81.28 mm
3.2 inch
IP 20
Safe from finger touch
Wemid (PA)
orange
Similar to RAL 2000
I
V-0
>= 600
750 °C
30 S
Copper alloy
tinned
-25 °C
55 °C
0.2 mm²
2.5 mm²
24
14
2.9 mm
0.2 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
2.4 mm x 1.5 mm; 1.9mm
17.5 A
16 A
17.5 A
14.2 A
630 V
320 V
-2-
Product catalogue | PCB connection systems | PCB terminals | Clamping yoke connection | LM 5.08 multiple lines | LM3R
5.08
DIN IEC rating data
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
Approvals
Approvals institutes
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
300 V
10 A
24
14
300 V
10 A
24
14
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
LM3R.lib
NK
EC001284
NK
NK
NK
Similar products
Order No.
1769620000
1769630000
Part designation
LM3R5.08/6 3.5 OR
LM3R5.08/9 3.5 OR
Version
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
90°, Box
-3-
Product catalogue | PCB connection systems | PCB terminals | Clamping yoke connection | LM 5.08 multiple lines | LM3R
5.08
1769640000
1769650000
1769660000
1769670000
1769680000
1769690000
1769700000
1769710000
1769720000
1769730000
1769740000
1769750000
1769760000
1769780000
1769790000
1769800000
1769810000
LM3R5.08/12 3.5 OR
LM3R5.08/15 3.5 OR
LM3R5.08/18 3.5 OR
LM3R5.08/21 3.5 OR
LM3R5.08/24 3.5 OR
LM3R5.08/27 3.5 OR
LM3R5.08/30 3.5 OR
LM3R5.08/33 3.5 OR
LM3R5.08/36 3.5 OR
LM3R5.08/39 3.5 OR
LM3R5.08/42 3.5 OR
LM3R5.08/45 3.5 OR
LM3R5.08/48 3.5 OR
LM3R5.08/54 3.5 OR
LM3R5.08/57 3.5 OR
LM3R5.08/60 3.5 OR
LM3R5.08/63 3.5 OR
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 12,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 15,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 18,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 21,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 24,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 27,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 30,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 33,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 36,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 39,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 42,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 45,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 48,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 54,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 57,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 60,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 63,
90°, Box
-4-
Product catalogue | PCB connection systems | PCB terminals | Clamping yoke connection | LM 5.08 multiple lines | LM3R
5.08
1769820000
1769830000
1769840000
LM3R5.08/66 3.5 OR
LM3R5.08/69 3.5 OR
LM3R5.08/72 3.5 OR
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 66,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 69,
90°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 72,
90°, Box
