5962R9575001V9A datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9575001V9A

5962R9575001V9A: DescriptionHCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, UUC14, DIE-14; Categorylogic logic; File Size238KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9575001V9A Overview

HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, UUC14, DIE-14

5962R9575001V9A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Parts packaging code	DIE
package instruction	DIE, DIE OR CHIP
Contacts	14
Reach Compliance Code	compli
Counting direction	UP
series	HCT
JESD-30 code	S-XUUC-N14
Load capacitance (CL)	50 pF
Load/preset input	NO
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Su	18000000 Hz
Operating mode	ASYNCHRONOUS
Number of digits	4
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	SQUARE
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	59 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	100k Rad(Si) V
Trigger type	NEGATIVE EDGE
Base Number Matches	1

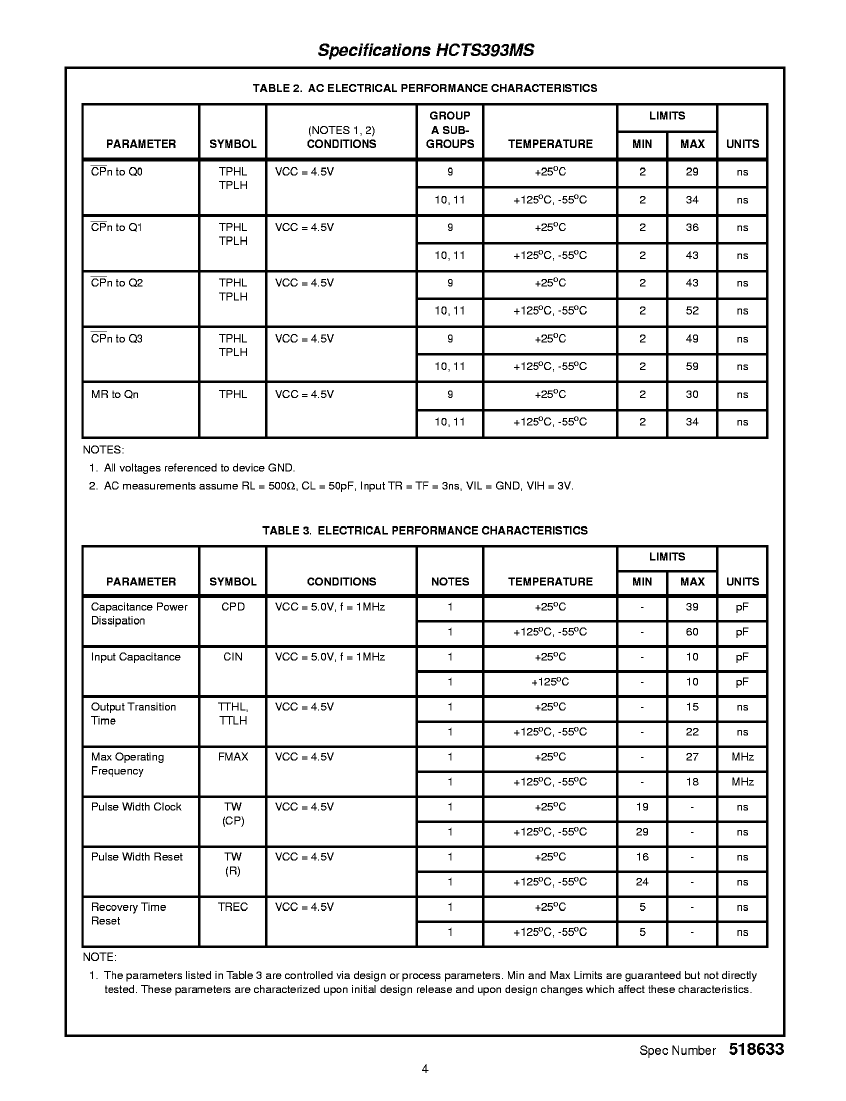

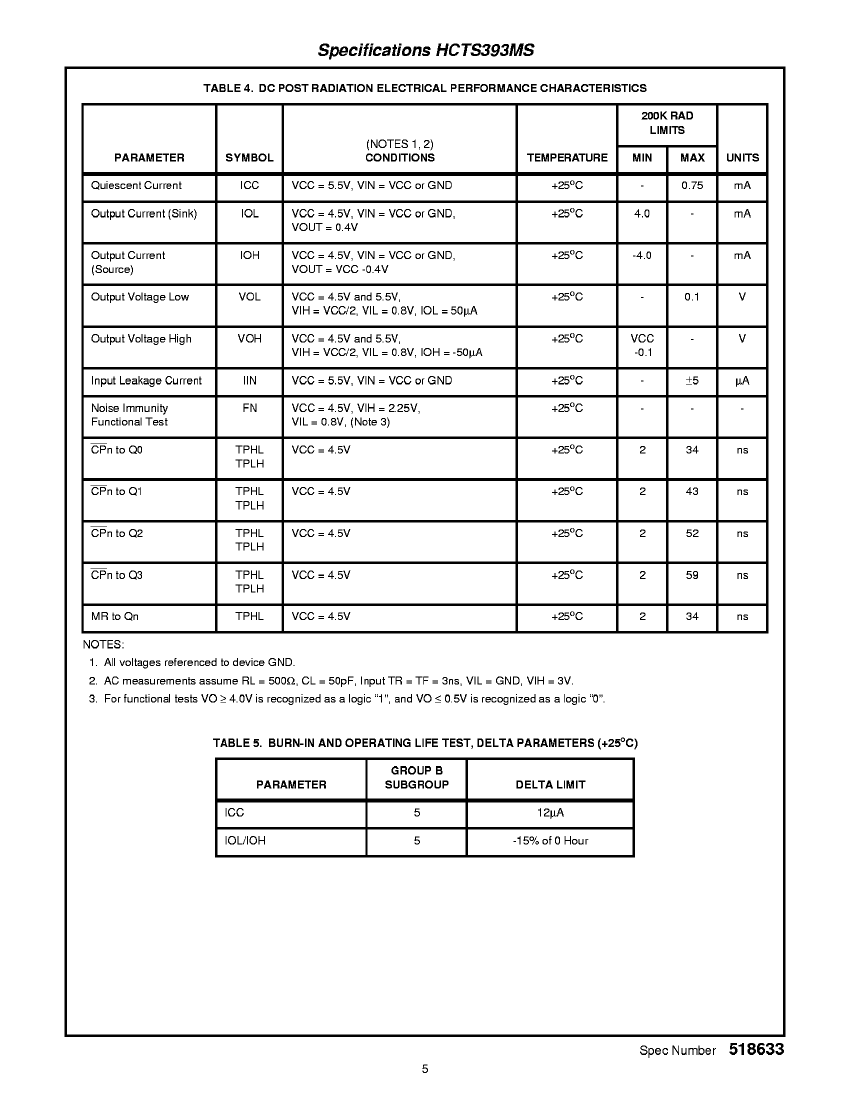

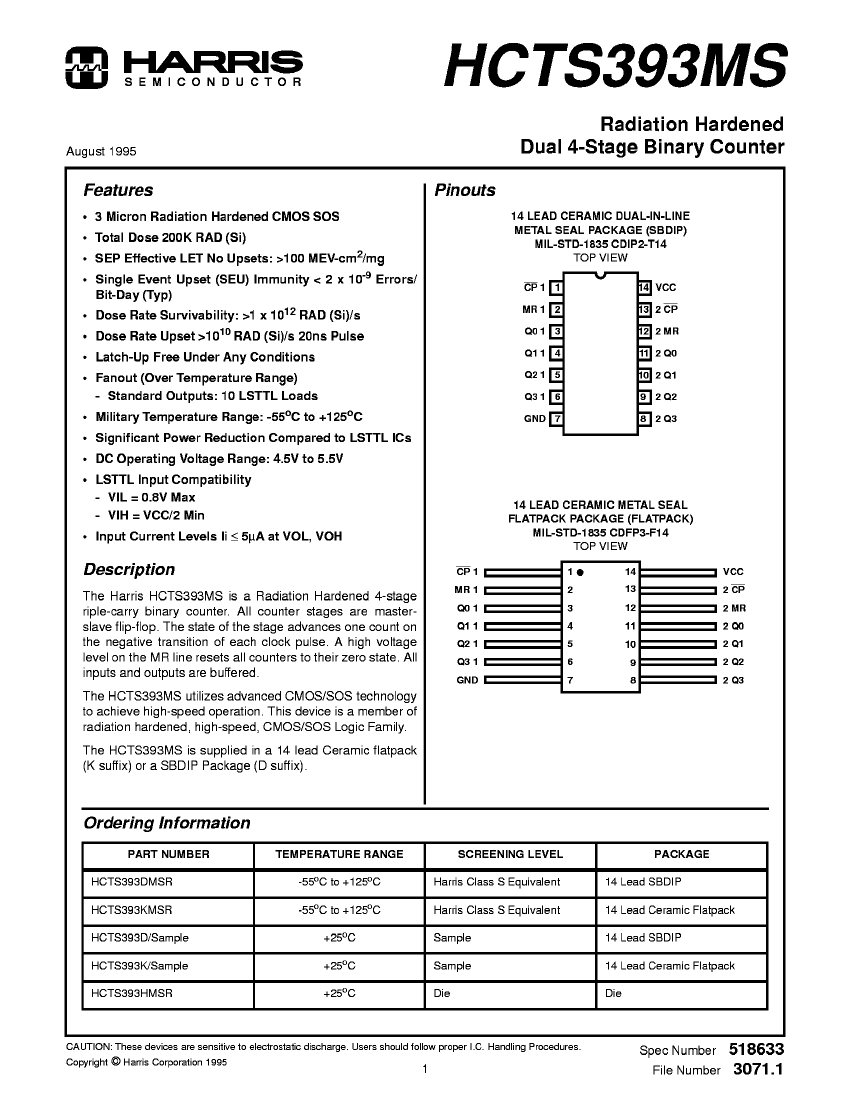

Preview

Download Datasheet

View All

5962R9575001V9A Related Products

	5962R9575001V9A	5962R9575001VCC	5962R9575001VXC
Description	HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, UUC14, DIE-14	HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP14, CERAMIC, DIP-14	HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP14, CERAMIC, DFP-14
Parts packaging code	DIE	DIP	DFP
package instruction	DIE, DIE OR CHIP	DIP, DIP14,.3	DFP, FL14,.3
Contacts	14	14	14
Reach Compliance Code	compli	unknow	compliant
Counting direction	UP	UP	UP
series	HCT	HCT	HCT
JESD-30 code	S-XUUC-N14	R-CDIP-T14	R-CDFP-F14
Load capacitance (CL)	50 pF	50 pF	50 pF
Load/preset input	NO	NO	NO
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	4	4	4
Number of functions	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIE	DIP	DFP
Encapsulate equivalent code	DIE OR CHIP	DIP14,.3	FL14,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	FLATPACK
power supply	5 V	5 V	5 V
propagation delay (tpd)	59 ns	59 ns	59 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535V;38534K;883S	38535V;38534K;883S	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	UPPER	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
Base Number Matches	1	1	1
Maximum Frequency@Nom-Su	18000000 Hz	18000000 Hz	-
JESD-609 code	-	e4	e4
length	-	19.43 mm	9.525 mm
Maximum seat height	-	5.08 mm	2.92 mm
Terminal surface	-	GOLD	GOLD
Terminal pitch	-	2.54 mm	1.27 mm
width	-	7.62 mm	6.285 mm
