B40HFL10S10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B40HFL10S10

B40HFL10S10: DescriptionRectifier Diode, 1 Phase, 1 Element, 40A, 100V V(RRM), Silicon, POWER MODULE-2; CategoryDiscrete semiconductor diode; File Size527KB，7 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

B40HFL10S10 Overview

Rectifier Diode, 1 Phase, 1 Element, 40A, 100V V(RRM), Silicon, POWER MODULE-2

B40HFL10S10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	POWER MODULE-2
Reach Compliance Code	compli
Other features	UL RECOGNIZED
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.55 V
JESD-30 code	R-PUFM-X2
Maximum non-repetitive peak forward current	500 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	40 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	1 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Base Number Matches	1

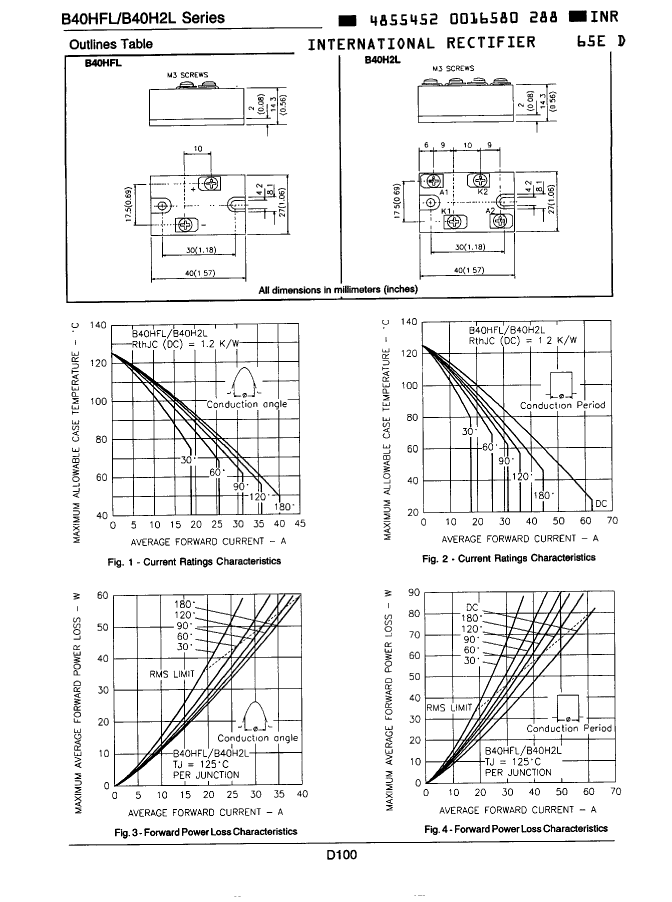

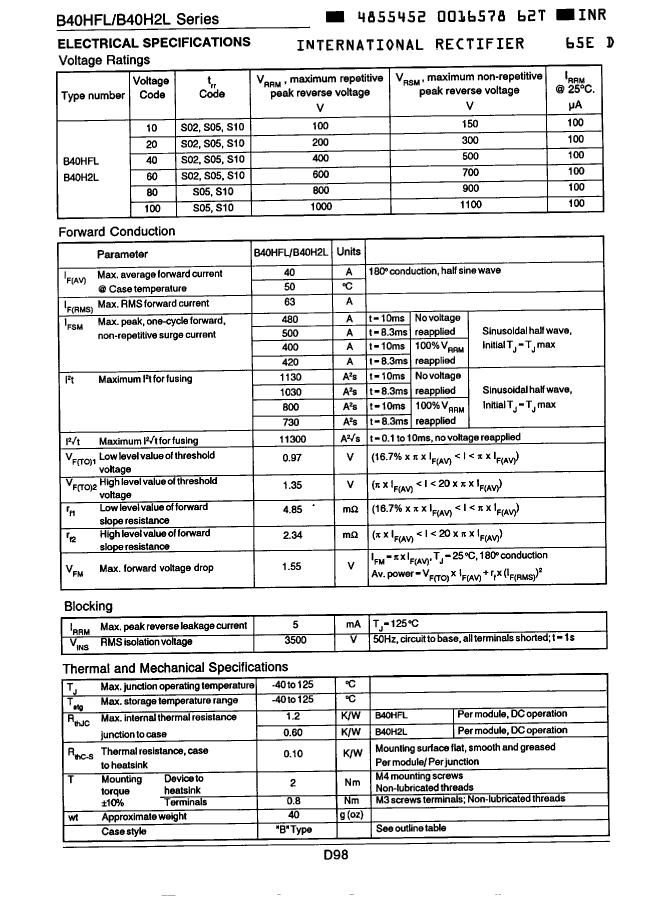

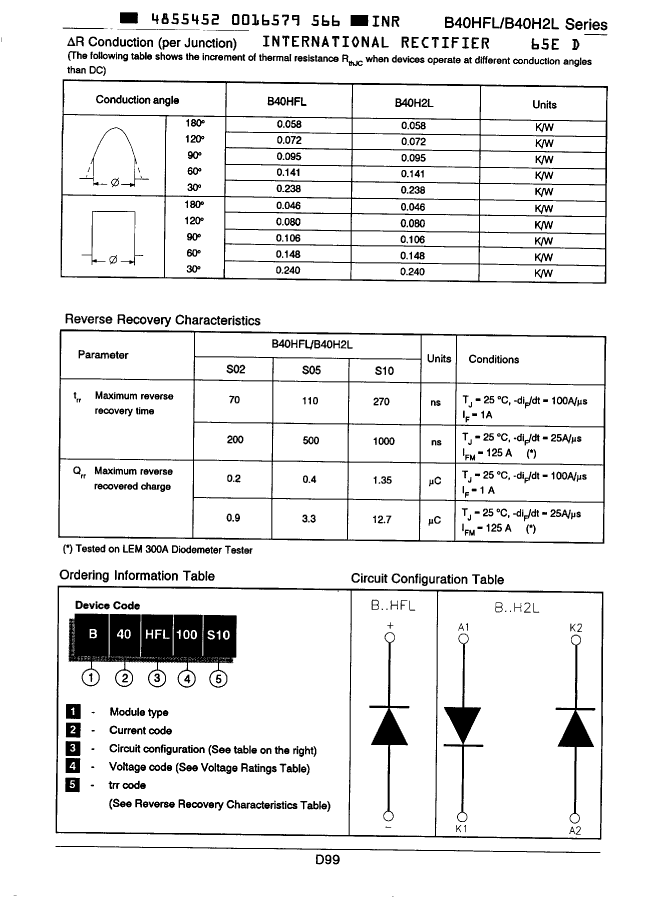

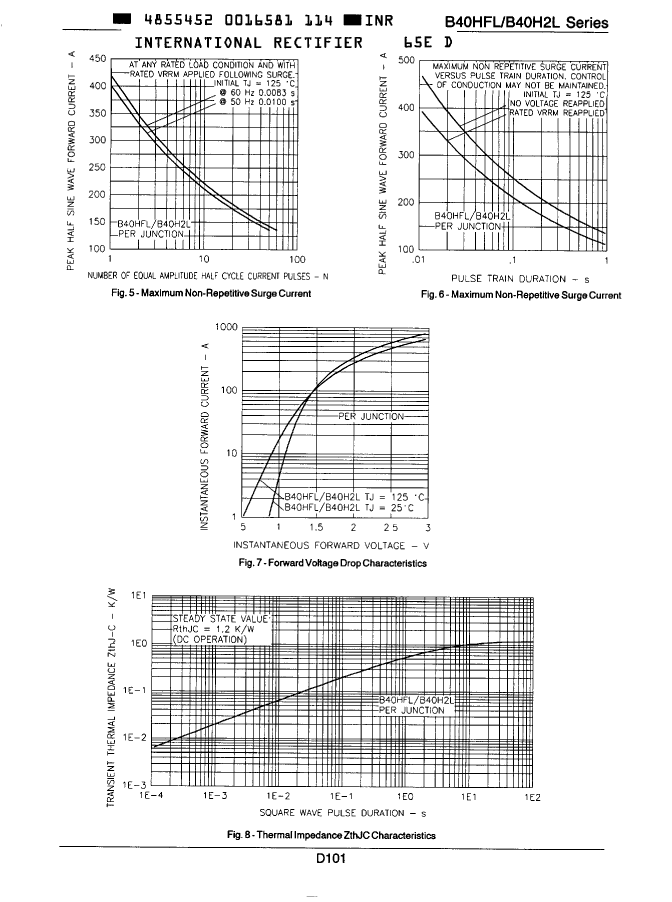

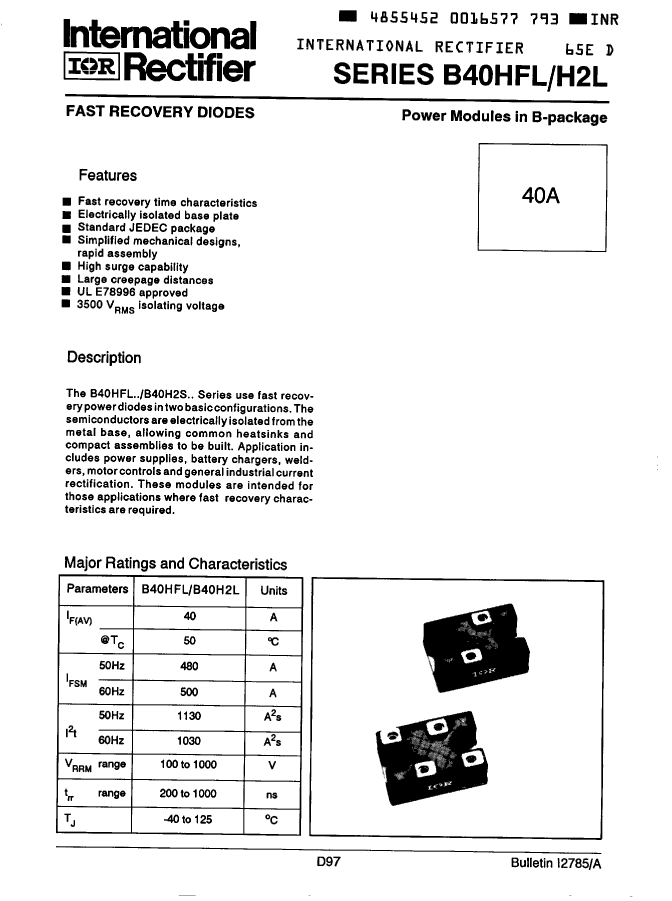

Preview

Download Datasheet

View All

B40HFL10S10 Related Products

	B40HFL10S10	B40HFL60S10	B40HFL100S10	B40H2L60S02	B40H2L10S05	B40H2L80S10	B40H2L20S10
Description	Rectifier Diode, 1 Phase, 1 Element, 40A, 100V V(RRM), Silicon, POWER MODULE-2	Rectifier Diode, 1 Phase, 1 Element, 40A, 600V V(RRM), Silicon, POWER MODULE-2	Rectifier Diode, 1 Phase, 1 Element, 40A, 1000V V(RRM), Silicon, POWER MODULE-2	Rectifier Diode, 1 Phase, 2 Element, 40A, 600V V(RRM), Silicon, POWER MODULE-4	Rectifier Diode, 1 Phase, 2 Element, 40A, 100V V(RRM), Silicon, POWER MODULE-4	Rectifier Diode, 1 Phase, 2 Element, 40A, 800V V(RRM), Silicon, POWER MODULE-4	Rectifier Diode, 1 Phase, 2 Element, 40A, 200V V(RRM), Silicon, POWER MODULE-4
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	POWER MODULE-2	POWER MODULE-2	POWER MODULE-2	POWER MODULE-4	POWER MODULE-4	POWER MODULE-4	POWER MODULE-4
Reach Compliance Code	compli	unknown	unknown	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.55 V	1.55 V	1.55 V	1.55 V	1.55 V	1.55 V	1.55 V
JESD-30 code	R-PUFM-X2	R-PUFM-X2	R-PUFM-X2	R-PUFM-X4	R-PUFM-X4	R-PUFM-X4	R-PUFM-X4
Maximum non-repetitive peak forward current	500 A	500 A	500 A	500 A	500 A	500 A	500 A
Number of components	1	1	1	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	40 A	40 A	40 A	40 A	40 A	40 A	40 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	600 V	1000 V	600 V	100 V	800 V	200 V
Maximum reverse recovery time	1 µs	1 µs	1 µs	0.2 µs	0.5 µs	1 µs	1 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	40	40	40	40	40	40	40
Base Number Matches	1	1	1	1	-	-	-
Maker	-	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
Minimum operating temperature	-	-	-	-40 °C	-40 °C	-40 °C	-40 °C
Maximum reverse current	-	-	-	5000 µA	5000 µA	5000 µA	5000 µA
Reverse test voltage	-	-	-	600 V	100 V	800 V	200 V
