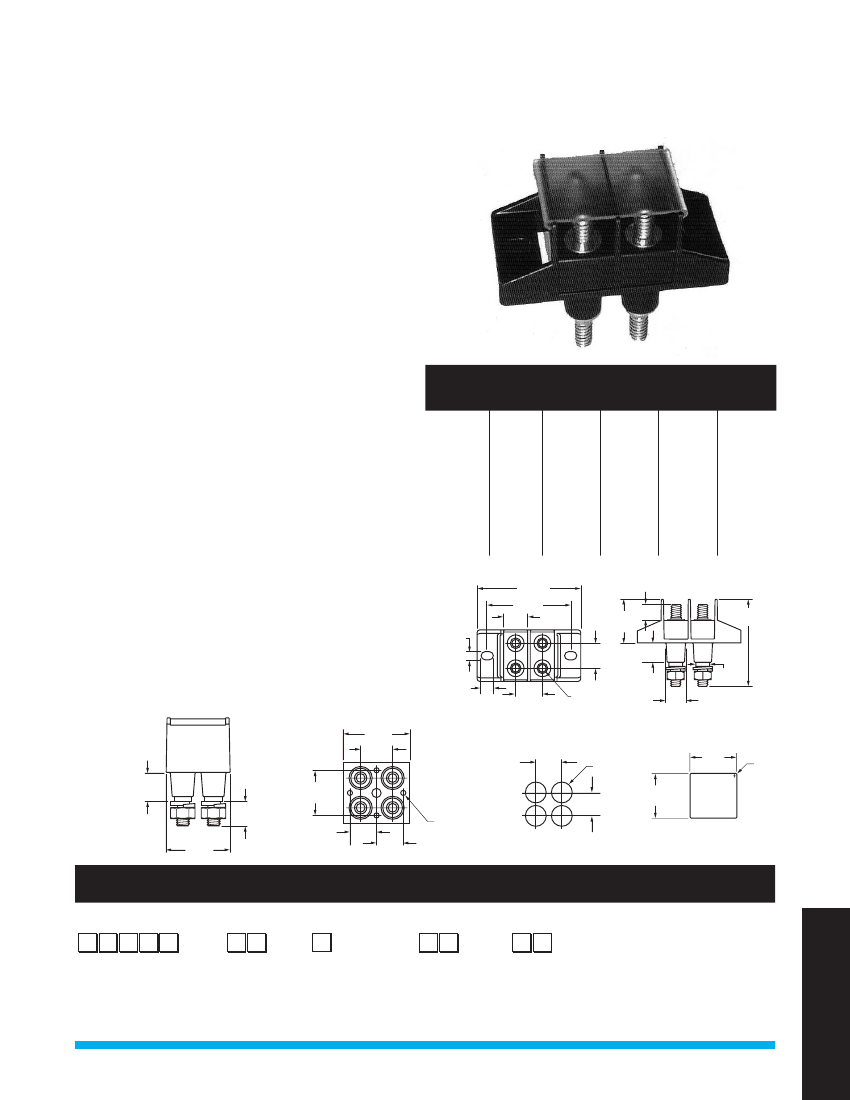

Series C7021
Power Feed Thru Terminal Block
Single & Double Row
Filtered Connectors
MAGNUM
®
is pleased to introduce a UL and CUL recognized,
power feed through terminal block. The C7021 Series block
has rows of two 1/4-20 studs which are capable of accom-
modating the industry standard two-hole compression lugs on
5/8" centers. The block is rated at 300V and 175A when using
both studs in parallel or 115A using a single stud per line.
The C7021 is manufactured using a durable UL 94V-0 ther-
moplastic in order to minimize barrier breakage. The block
can be mounted using four #6 thread cutting screws that
mount from the backside or using the optional mount ends
to secure the block to the panel from the front. Additional
hardware and optional dead-front covers (Part No.
CSB7021-XX) are also available.
APPLICATIONS
The C7021 terminal block is intended for use in applications
requiring up to 175A utilizing a 2-hole compression lug on
5/8" centers. It is ideal for use as an input/output block for
telecommunications power panels, or anywhere in which
-eliminating busbars would be an advantage.
SPECIFICATIONS
Ratings:
175A* per pole, 300V.
Center Spacing:
0.690" (17.5mm)
Wire Range:
AWG #2/0-8
Number of Poles:
2-6
Bolt Hole Spacing:
0.625" (15.88mm)
Stud:
Standard 1/4-20 stud or optional M6 stud.
Mounting:
Optional mounting ears.
Stud Material:
Brass, Tin Plated.
Torque Rating:
36 in-lb
Operating Temperature:
130°C
Agency Information:
UL/CSA; CE Certified
*175 achieved using both studs in parallel, 115A using a single stud per line.
B
17.5 TYP
(0.69)
A
15.0 TYP
(0.59)
12.7
(0.50)
14.5 TYP
(0.57)
14.2
( ¿.56)
30.0
(1.18)
Blind Hole for #6
Thread Cutting
Screw
14.5 TYP
(0.57)
POTION 1
Part
No.
C7021-01-X
C7021-02-X
C7021-03-X
C7021-04-X
C7021-05-X
C7021-06-X
C7021-01N-X
C7021-02N-X
C7021-03N-X
C7021-04N-X
C7021-05N-X
C7021-06N-X
A
B
C
D
E
Euro-MAG Series
PCB – Spring Clamp
17.5 (0.69)
34.9 (1.37)
52.3 (2.06)
69.8 (2.75)
87.2 (3.44)
17.5 (0.69)
34.9 (0.69)
52.3 (2.06)
69.8 (2.75)
87.2 (3.44)
-
-
-
-
-
36.1 (1.42)
53.5 (2.11)
71.0 (2.80)
88.4 (3.48)
105.9 (4.17)
54.4 (2.14)
70.9 (2.83)
89.3 (3.52)
106.8 (4.20)
124.2 (4.89)
-
-
-
-
-
67.3 (2.65)
84.8 (3.34)
102.2 (4.02)
119.7 (4.71)
134.1 (5.40)
-
-
-
-
-
31.8 (1.25)
49.2 (1.94)
66.7 (2.63)
84.2 (3.31)
101.7 (4.00)
31.8 (1.25)
49.2 (1.94)
66.7 (2.63)
84.2 (3.31)
101.7 (4.00)
Base & Rail Mount
Connectors
D
C
15.8
(0.62)
5.4
(0.21)
15.8
(0.62)
9.6
28.0 (0.38)
(1.10)
12.5
(0.49)
fl 9.0 TYP
(0.35)
A
1/4-20 UNC-2A
Thread TYP
¿12.2 TYP
(0.48)
55.7
(2.19)
7.9
(0.31)
Power Distribution Blocks
E
1.6
(R.06)
24.0
(0.94)
OPTION 2
33.0
(1.30)
OPTION 1
PANEL CUTOUTS
Part Numbering System
Series
Poles
Mount Ends
Studs
Hardware
Inches (Millimeters)
WIRE MANAGEMENT PRODUCTS
C 7 0 2 1
–
01 –
1 pole (2 studs)
02 –
2 pole (4 studs)
03 –
3 pole (6 studs)
04 –
4 pole (8 studs)
05 –
5 pole (10 studs)
06 –
6 pole (12 studs)
Blank – Mount ends
N
– No mount ends
–
Blank – Standard
1/4
– 20 studs
M6
– M6 studs
Blank – No hardware
0
– Bulk pack, one set
1
– Bulk pack, two sets
2
– Assembled, bottom
3
– Assembled, top
4
– Assembled, both sets
