RF1111X823K500X102N: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, BX, 15% TC, 0.082uF, Surface Mount, 1111, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size201KB，2 Pages; ManufacturerKnowles; Websitehttp://www.knowles.com; Environmental Compliance

Download Datasheet Parametric View All

RF1111X823K500X102N Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, BX, 15% TC, 0.082uF, Surface Mount, 1111, CHIP, ROHS COMPLIANT

RF1111X823K500X102N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2087154406
package instruction	, 1111
Reach Compliance Code	compliant
Country Of Origin	Mainland China, USA
ECCN code	EAR99
YTEOL	6.85
capacitance	0.082 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	RF1111
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
size code	1111
surface mount	YES
Temperature characteristic code	BX
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

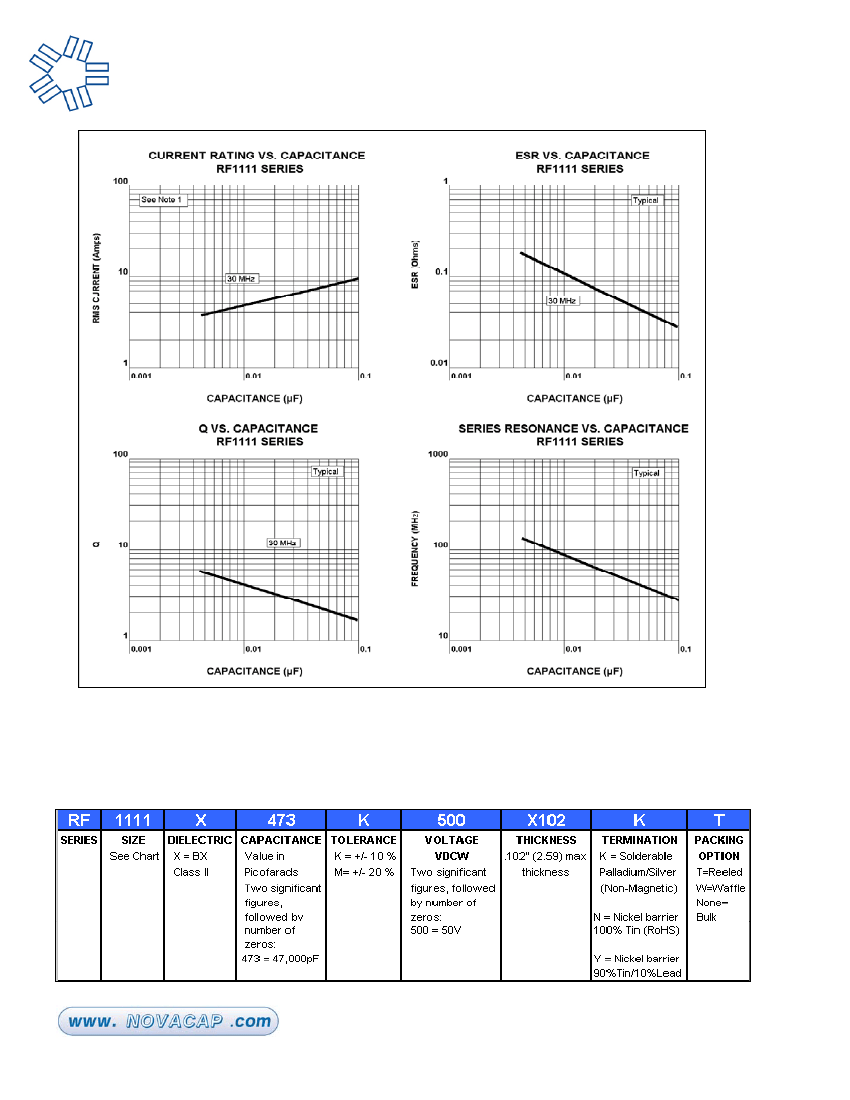

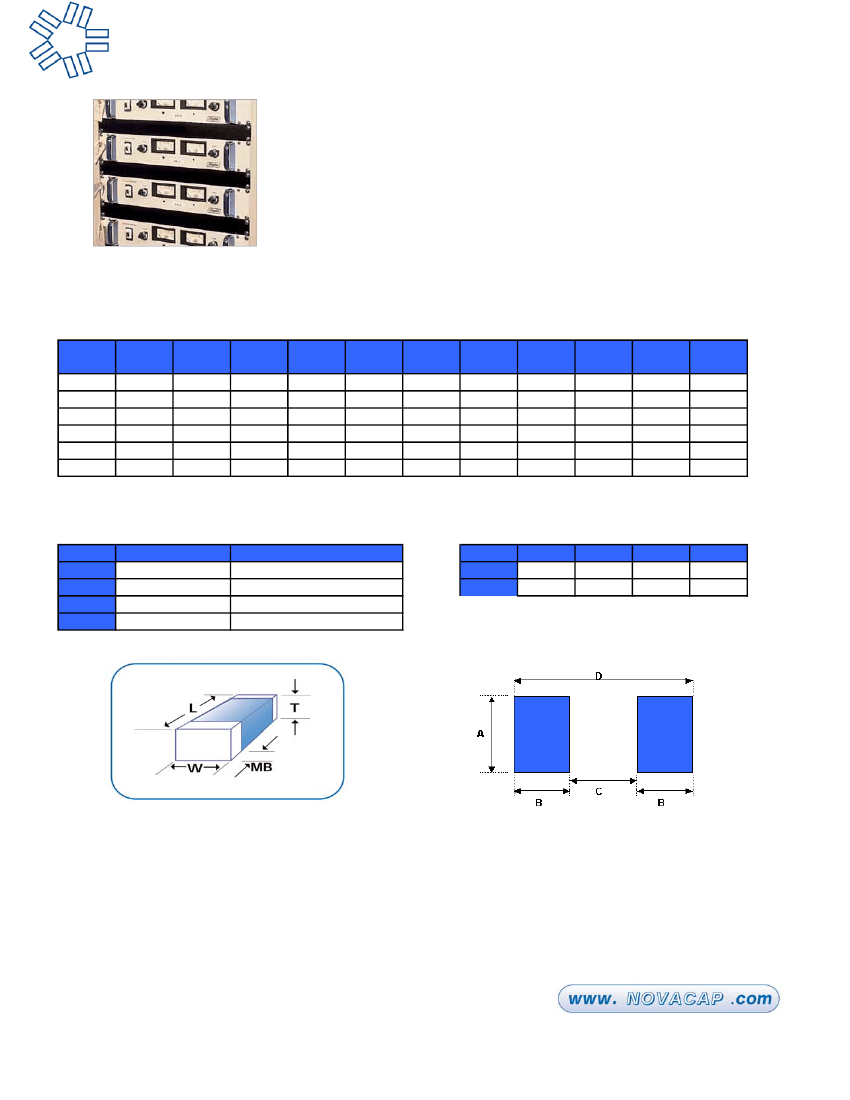

NOVACAP RF1111 SERIES CAPACITORS

-55

-25

-15.6

0

-7.6

NOVACAP manufactures a new improved ESR performance

RF1111 series capacitors. This series has been designed for

25

50

75

100

125

150

200

rugged environments in high power broadband coupling and

175

0

5

9

12

13

12.5

10.5

8

switching power supplies. The Class II ceramic dielectric affords

high volumetric efficiency with negligible piezoelectric effects.

Please contact the factory for higher WVDC, capacitance values not

listed, tolerance, or leading options.

250

5

H

CAPACITANCE & VOLTAGE SELECTION

CAP

CODE

472

562

682

822

103

123

CAP

(pF)

4700

5600

6800

8200

10,000

12,000

TOL.

K,M

RATED

WVDC

50

CAP

CODE

153

183

223

273

333

393

CAP

(pF)

15,000

18,000

22,000

27,000

33,000

39,000

TOL.

K,M

RATED

WVDC

50

CAP

CODE

473

503

563

683

823

104

CAP

(pF)

47,000

50,000

56,000

68,000

82,000

100,000

TOL.

K,M

RATED

WVDC

50

DIMENSIONS INCHES (MM)

SIZE

LENGTH L

WIDTH W

T MAX

MB

RECOMMENDED MOUNTING PADS

SIZE

VERT

HORIZ

A Min.

.120"

.130"

B Min.

.050"

C Min.

.075"

D Min.

.175"

NOMINAL

.110 (2.79)

.102 (2.59)

.020 (.508)

TOLERANCE

+.025-.010 (+0.64-0.25)

±.015 (0.38)

Maximum

±.010 (0.25)

VERT =Vertical Mount,HORIZ =Horizontal Mount

DIELECTRIC CHARACTERISTICS

Operating Temp Range

Temp Voltage Coefficient

Dissipation Factor

Insulation Resistance @ 25°C

Insulation Resistance @ 125°C

Dielectric Withstanding Voltage

Test Parameters

-55°C to 125°C

+15/-25% Delta C Max

.025 (2.5%) Max

>1000ΩF

>100ΩF

2.5X WVDC, 5 Seconds

1KHz, 1.0VRMS, 25°C
