5137-0-00-15-00-00-38-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 5137-0-00-15-00-00-38-0

Preview

5137-0-00-15-00-00-38-0: Descriptionconn PC pin circ .018dia gold; CategoryThe connector terminals; File Size714KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5137-0-00-15-00-00-38-0 Overview

conn PC pin circ .018dia gold

5137-0-00-15-00-00-38-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

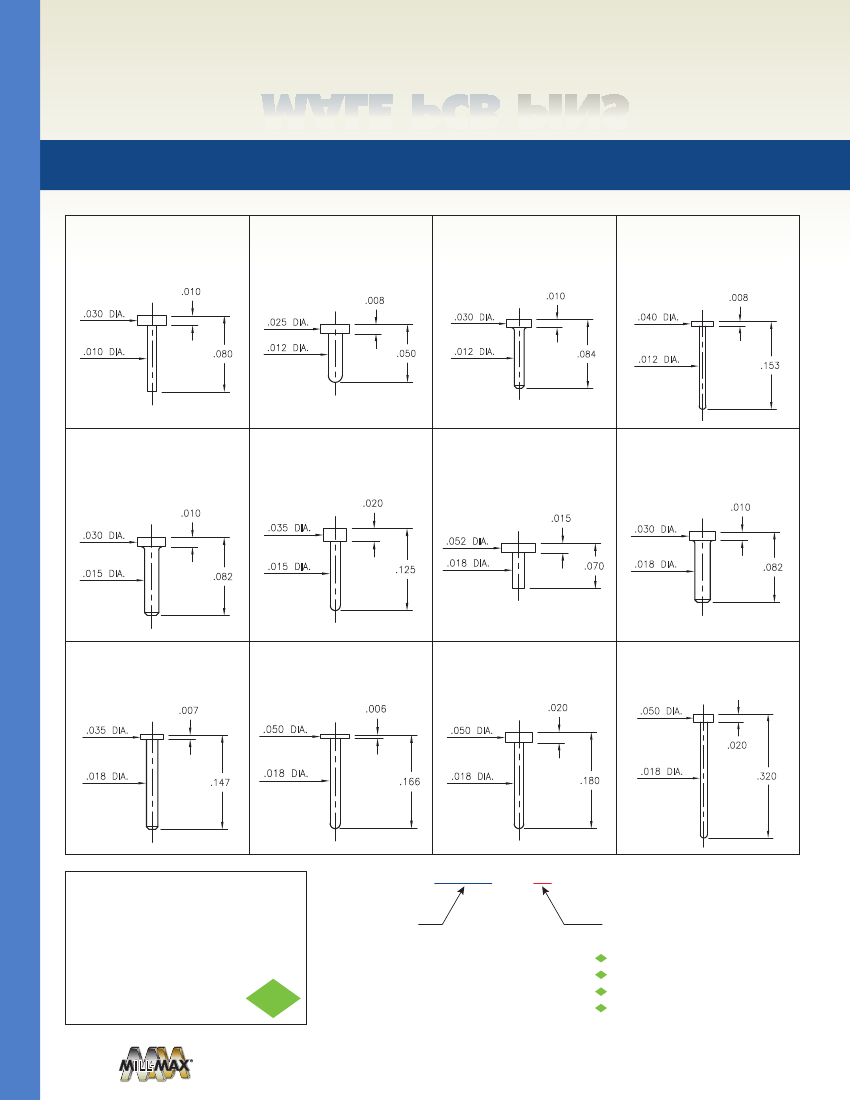

MALE PCB

PINS

PRINTED CIRCUIT PINS • NAIL HEAD TYPE

4184

4184-0-00-XX-00-00-33-0

Solder mount in .014 mounting hole

.010

.030 DIA.

9050

9050-0-00-XX-00-00-33-0

Solder mount in .016 mounting hole

4353

4353-0-00-XX-00-00-33-0

Solder mount in .016 mounting hole

9083

9083-0-00-XX-00-00-38-0

.008

.040 DIA.

Solder mount in .016 mounting hole

Also available on 16mm wide carrier tape:

1,950 parts per 13” reel.

See page 224.2 for Tape & Reel details

.008

.025 DIA.

.030 DIA.

.010

.010 DIA.

.080

.012 DIA.

.050

.012 DIA.

.084

.012 DIA.

.153

4825

4825-0-00-XX-00-00-33-0

.010

.030 DIA.

4689

Solder mount in .019 mounting hole

Also available on 16mm wide carrier tape:

3,250 parts per 13” reel.

See page 224.1 for Tape & Reel details

4689-0-00-XX-00-00-33-0

Solder mount in .019 mounting hole

.020

.035 DIA.

4361

4361-0-00-XX-00-00-33-0

Solder mount in .022 mounting hole

4288

4288-0-00-XX-00-00-33-0

Solder mount in .022 mounting hole

.010

.030 DIA.

.015

.052 DIA.

.015 DIA.

.082

.015 DIA.

.125

.018 DIA.

.070

.018 DIA.

.082

4068

4068-0-00-XX-00-00-33-0

Solder mount in .022 mounting hole

.007

.035 DIA.

9113

9113-0-00-XX-00-00-38-0

Solder mount in .022 mounting hole

.006

.050 DIA.

9137

9137-0-00-XX-00-00-38-0

Solder mount in .022 mounting hole

.020

.050 DIA.

5137

5137-0-00-XX-00-00-38-0

Solder mount in .022 mounting hole

.050 DIA.

.020

.018 DIA.

.147

.018 DIA.

.166

.018 DIA.

.180

.018 DIA.

.320

PAGE 204 | MALE PCB PINS

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Except where noted )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - 00 -

XX

- 00 - 00 - XX - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

15

10

μ”

GOLD OVER NICKEL (RoHS)

21

20

μ”

GOLD OVER NICKEL (RoHS)

34

50

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
