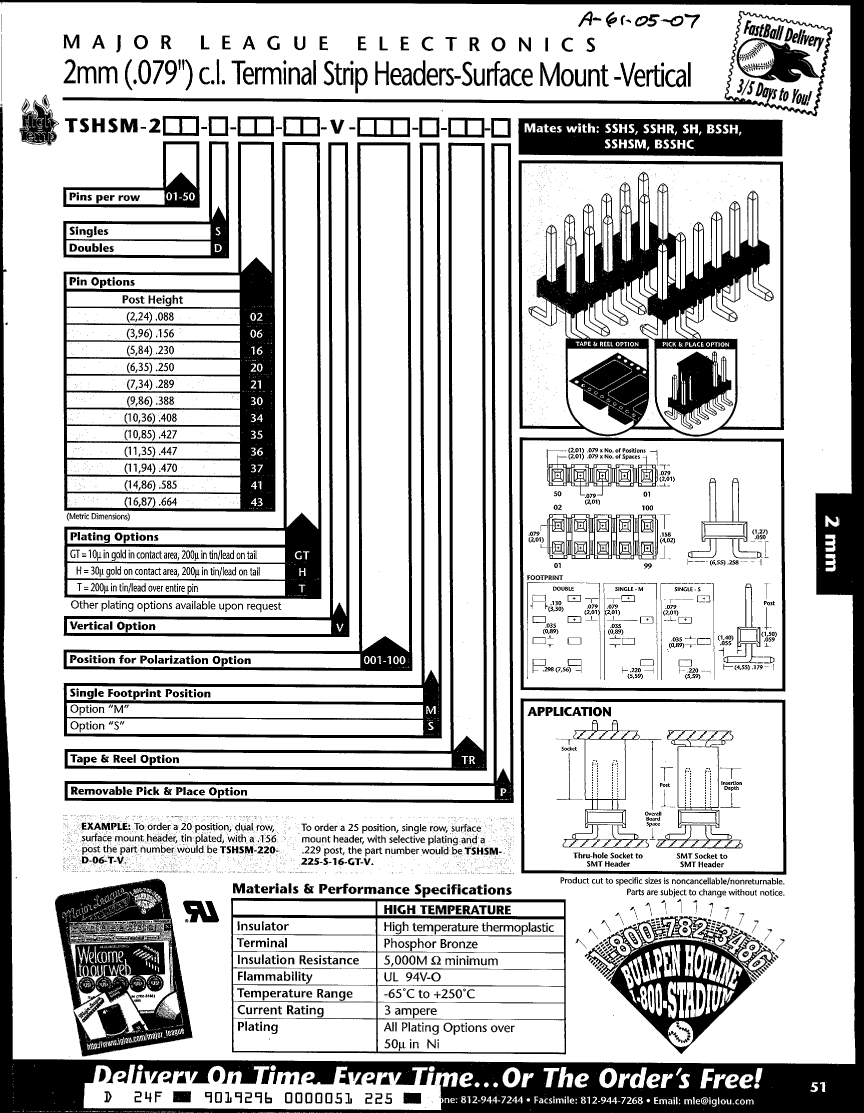

TSHSM-205-D-20-T-V datasheet, PDF

TSHSM-205-D-20-T-V: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Receptacle; CategoryThe connector The connector; File Size150KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

Download Datasheet Parametric View All

TSHSM-205-D-20-T-V Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1163041340
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATING PIN LENGTH=0.250 INCH
body width	0.158 inch
subject depth	0.059 inch
body length	0.396 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (50)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	TSHSM
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	250 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2418 mm
Plating thickness	200u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Total number of contacts	10
