UWT1V2R2MCR1GB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> UWT1V2R2MCR1GB

Preview

UWT1V2R2MCR1GB: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 2.2uF, Surface Mount, 1313, CHIP; CategoryPassive components capacitor; File Size50KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UWT1V2R2MCR1GB Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 2.2uF, Surface Mount, 1313, CHIP

UWT1V2R2MCR1GB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1929766498
package instruction	, 1313
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Available with 3mm Dia. On Request
diameter	4 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.00077 mA
length	10 mm
Manufacturer's serial number	WT
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	7.5 mA
series	WT
size code	1313
surface mount	YES
Delta tangent	0.14
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	FLAT

Preview

Download Datasheet

View All

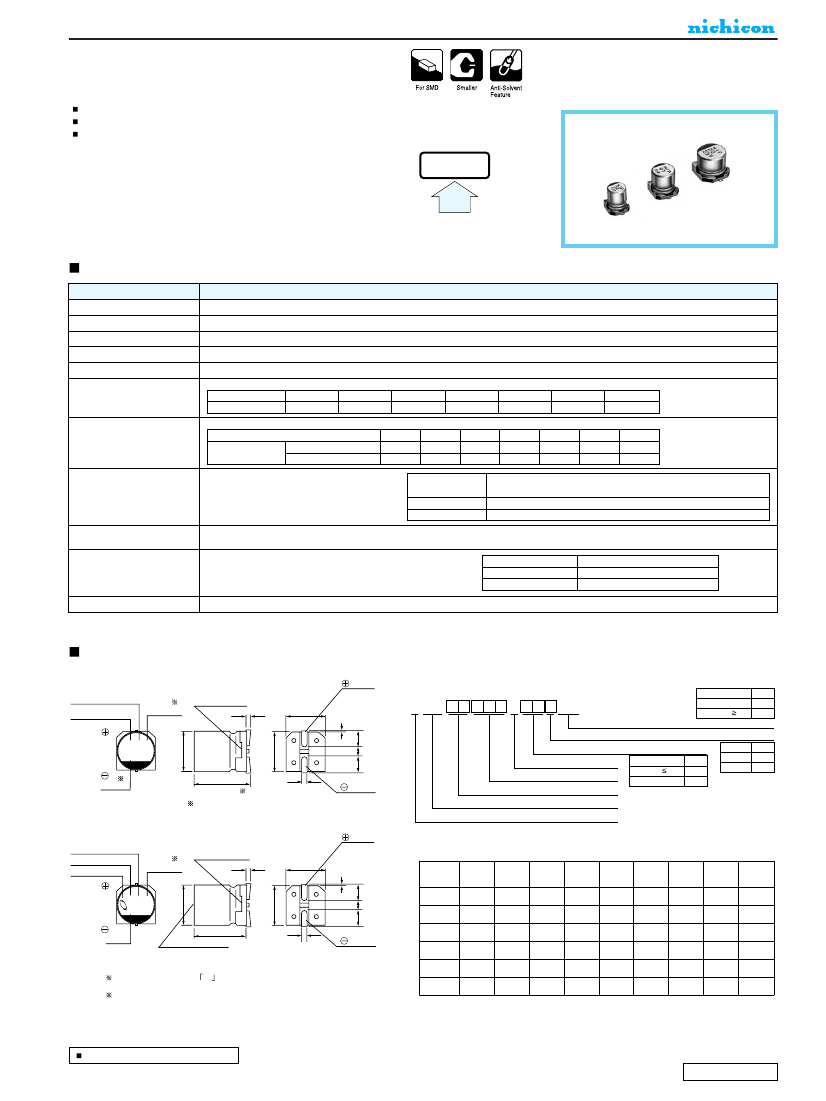

ALUMINUM ELECTROLYTIC CAPACITORS

WT

Chip Type, Wide Temperature Range

series

Chip type operating over wide temperature range of to – 55 ~ +105

°C

.

Designed for surface mounting on high density PC board.

Applicable to automatic mounting machine using carrier tape.

WT

High

Temperature

WX

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

δ

Performance Characteristics

– 55 ~ +105°C

4 ~ 50V

0.1 ~ 1500µF

±20% at 120Hz, 20°C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage (V)

tan

δ

(MAX.)

4

0.40

6.3

0.30

4

7

15

10

0.24

6.3

4

8

16

0.20

10

3

8

25

0.16

16

2

4

25

2

4

35

0.14

35

2

3

50

0.14

50

2

3

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

Z– 40°C / Z+20°C

ZT / Z20 (MAX.)

Endurance

After 1000 hours' application of rated voltage

at 105°C, capacitors meet the characteristic

requirements listed at right.

Within ±25% of initial value for capacitors of

φ

3mm unit, and 16V or less.

Within ±20% of initial value for capacitors of 25V or more.

200% or less of initial specified value

Leakage current

Initial specified value or less

Capacitance

change

tan

δ

Shelf Life

Resistance to soldering

heat

Marking

After leaving capacitors under no load at 105°C for 1000 hours,

they meet the specified value for endurance characteristics listed above.

The capacitors shall be kept on the hot plate maintained at 250°C

Capacitance change

for 30 seconds. After removing from the hot plate and restored

tan

δ

at room temperature, they meet the characteristic requirements

Leakage current

listed at right.

Black print on the case top.

Within ±10% of initial value

Initial specified value or less

Chip Type

(φ3 ~

φ8 ×

5.4L)

Capacitance

105°C Marking

1

Voltage

Plastic platform

0.3 MAX.

0.5 MAX.

C±0.2

Positive

Type numbering system (Example : 16V 10

µ

F)

φD

code

3 ~ 8 (5.4L)

GB

6.3 ~ 10 (L 5.8) GS

Package code

Case dia. code

Configuration

Capacitance tolerance (±20%)

Rated Capacitance (10µF)

Rated voltage (16V)

Series name

Type

φD

3 ~ 8 (L 7.7)

8 ~ 10 (L = 10)

code

CR

NR

φD

3

4 ~ 10

code

2

1

2

3

4

5

6

7

8

9 10 11 12 13 14

UWT 1 C 1 0 0 MC R 1 GB

A±0.2

E

φD±0.5

A2P

10

16V

B±0.2

2

Lot No.

L

+0.1

–0.2

(L±0.3)

3

H

Negative

3 Apply to

φ6.3 ×

5.8,

φ6.3 ×

7.7

(φ8

×

10L,

φ10 ×

10L)

105°C Marking

Trade mark

1

Voltage

Plastic platform

0.3 MAX.

0.5 MAX.

Capacitance

Positive

C±0.2

A±0.2

3

×

5.4

A±0.2

4

×

5.4

1.8

4.3

1.0

5.4

5

×

5.4 6.3

×

5.4 6.3

×

5.8 6.3

×

7.7 8

×

5.4

2.1

5.3

1.3

5.4

2.4

6.6

2.2

5.4

2.4

6.6

2.2

5.8

2.4

6.6

2.2

7.7

3.3

8.3

2.3

5.4

8

×

10

2.9

8.3

3.1

10

×

10

3.2

10.3

4.5

10

φD±0.5

B±0.2

A2P

100

35V

A

B

C

1.5

3.3

0.8

5.4

E

Negative

H

A±0.2

L±0.5

Lot No.

Pressure relief vent

E

L

1. Voltage mark for 6.3V is 6V . In case of marking for

φ3

units, “V” for rated

voltage is omitted.

2. In case of marking for

φ3

units. Lot No is expressed by a digit (month code).

H

0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.8 ~ 1.1 0.8 ~ 1.1

Dimension table in next page.
