833202B04800 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Thermal management products> 833202B04800

Preview

833202B04800: Descriptionheatsink stamp 10x21.2x19mm; CategoryThermal management products; File Size269KB，1 Pages; ManufacturerComair Rotron; Environmental Compliance

Download Datasheet Parametric View All

833202B04800 Overview

heatsink stamp 10x21.2x19mm

833202B04800 Parametric

Parameter Name	Attribute value
Datasheets
833202B04800
Fans, Blowers, Impellers Catalog
Product Photos
833202B04800
Catalog Drawings
833202B0(3,4)x00
Standard Package	50
Category	Fans, Thermal Manageme
Family	Thermal - Heat Sinks
Type	Board Level, Vertical
Package Cooled	TO-220
Attachment Method	Bolt On and PC Pi
Shape	Rectangul
Length	0.750" (19.05mm)
Width	0.835" (21.21mm)
Diamete	-
Height Off Base (Height of Fin)	0.394" (10.00mm)
Power Dissipation @ Temperature Rise	3W @ 60°C
Thermal Resistance @ Forced Air Flow	12.0°C/W @ 200 LFM
Thermal Resistance @ Natural	-
Material	Aluminum
Material Finish	Black Anodized
Other Names	833202B04800-NDCR487

Preview

Download Datasheet

View All

Board Level

Heat Sinks

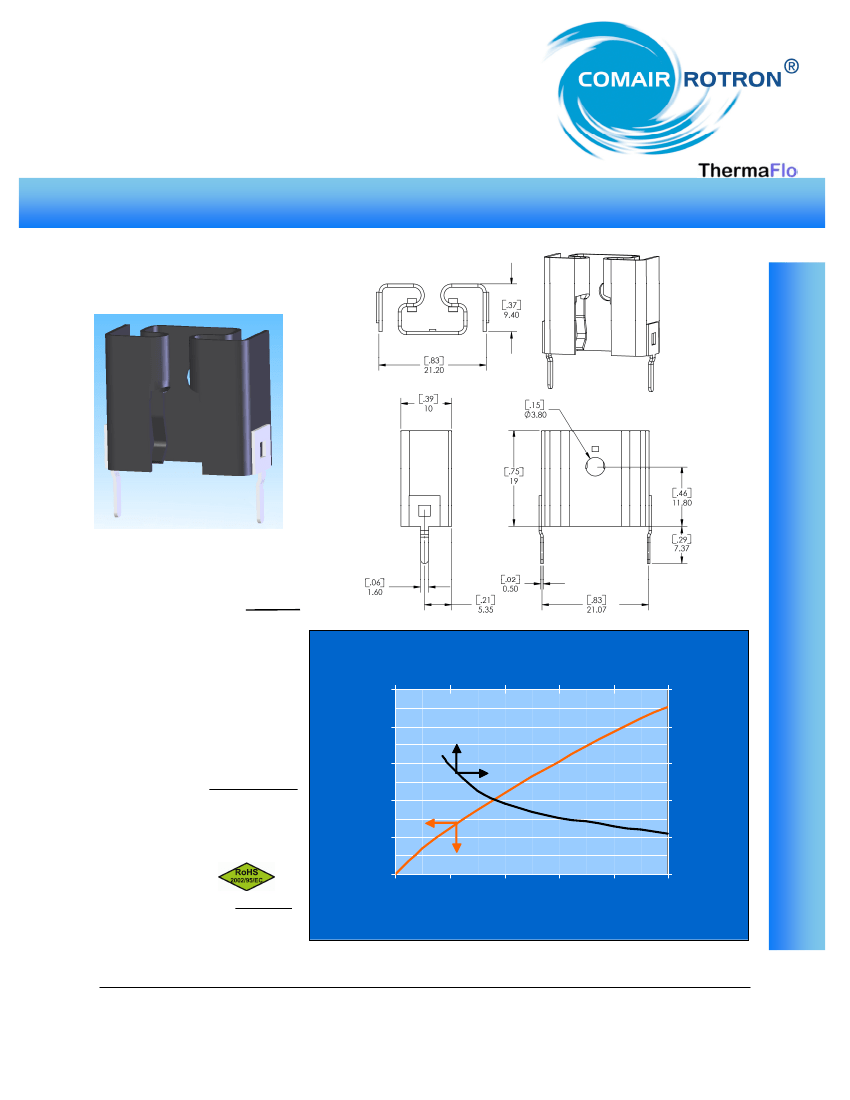

P/N: 833202B04800

TO-220

PRODUCT SPECIFICATIONS

• Devices: TO-220

• Size: 10.0 x 21.2 x 19.0 mm

• Material: Aluminum, 0.8 mm Thick

• Type: Stamped

• IC Mounting: Integrated Spring

• PCB Mounting: Solderable Tabs

• Finish: Black Anodized

• Package: Bulk

Air Velocity - LFM

0

Temp Rise Above Ambient -

o

C

(Mounting Surface)

100

80

60

40

20

0

1

2

3

4

5

Heat Dissipated - Watts

200

400

600

800

1000

Thermal Resistance -

o

C/ Watt

(Mounting Surface to Ambient)

20

16

12

8

4

0

FEATURES & BENEFITS

• No Hardware Device Attachment

•

Constant Spring Force Tension

• Vertical Mounting via Solderable Tabs

• RoHS Compliant

CUSTOMIZED HEATSINKS

• Specialized Tabs, Plating

• Specialized Body Configurations

• Contact Applications Engineering

COMAIR ROTRON, INC

8929 Terman Court, San Diego, CA 92121

Ph (858) 348-6200 Fax (858) 566-4577

E-mail: sales@comairrotron.com,

Web: www.comairrotron.com
