C-2 26.6670K-P:PBFREE datasheet, PDF

Datasheet> All Categories > Passive components> C-2 26.6670K-P:PBFREE

C-2 26.6670K-P:PBFREE: Descriptioncrystal 26.667khz 11pf thru; CategoryPassive components; File Size362KB，1 Pages; ManufacturerEPSON; Websitehttp://www.epsondevice.com; Environmental Compliance

Download Datasheet Parametric View All

C-2 26.6670K-P:PBFREE Overview

crystal 26.667khz 11pf thru

C-2 26.6670K-P:PBFREE Parametric

Parameter Name	Attribute value
Datasheets
C,C-2,C-4-Type
C-(2-4), FC-xx5, MC-x0x Part No. Guide
Product Photos
C-(2)Type
Catalog Drawings
C-2-Type Series
Standard Package	1,000
Category	Crystals and Oscillators
Family	Crystals
Packaging	Bulk
Type	kHz Crystal (Tuning Fork)
Frequency	26.667kHz
Frequency Stability	-
Frequency Tolerance	±100ppm
Load Capacitance	11pF
ESR (Equivalent Series Resistance)	55 kOhm
Operating Mode	Fundamental
Operating Temperature	-10°C ~ 60°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Cylindrical Can, Radial
Size / Dimensi	0.079" Dia x 0.236" L (2.00mm x 6.00mm)
Heigh	0.236" (6.00mm)
Other Names	C-226.6670K-P

Preview

Download Datasheet

View All

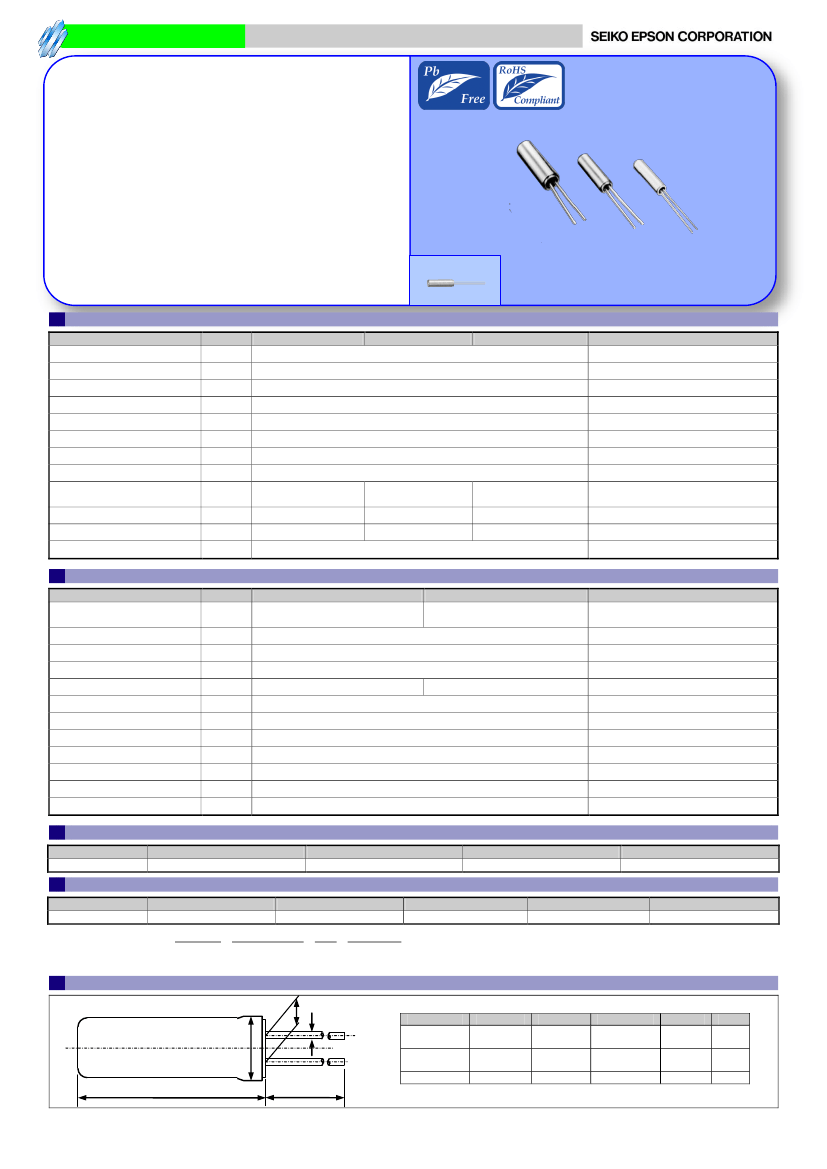

Crystal unit

Product Number (please contact us)

C-002RX

: Q11C02RX1xxxx00

C-004R

: Q11C004R1xxxx00

C-005R

: Q11C005R1xxxx00

C-2 TYPE

: Q12C20001xxxx00

C-4 TYPE

: Q12C40001xxxx00

kHz RANGE CRYSTAL UNIT

C - TYPE

C - 2 TYPE

C - 4 TYPE

Frequency

range

Thickness

Overtone

order

Applications

32.768 kHz（20 kHz½120 kHz）

φ1.2

½φ2.0

mm Max.

Fundamental

Clock and Microcomputer

Actual size

C-002RX

C-2 TYPE

C-004R

C-4 TYPE

C-005R

Specifications for C-TYPE (characteristics)

Item

Nominal frequency range

Storage temperature

Operating temperature

Level of drive

Frequency tolerance (standard)

Symbol

f_nom

T_stg

T_use

f_tol

f_age

C-002RX

C-004R

32.768 kHz

-20 °C to +70 °C

-10 °C to +60 °C

1.0 µW Max.

±20 × 10

-6

+25 °C ± 5 °C

0.04

× 10

-6

/ °C

Max.

6 pF to ∞

50 kΩ Max.

（30

kΩ Typ.）

2.0 fF

0.85 pF

±3 × 10 / year Max.

-6

C-005R

Conditions / Remarks

Storage as single product.

+25 °C, DL=0.1 µW

Turnover temperature

Parabolic coefficient

Load capacitance

Motional resistance (ESR)

Motional capacitance

Shunt capacitance

Frequency aging

Please specify

50 kΩ Max.

（37

kΩ Typ.）

1.9 fF Typ.

0.75 pF Typ.

+25 °C, First year

50, 60 kΩ Max.

（30

kΩ Typ.）

2.0 fF

0.85 pF

Specifications for C-2 TYPE C-4 TYPE (characteristics)

Item

Nominal frequency range

Storage temperature

Operating temperature

Level of drive

Frequency tolerance (standard)

Symbol

f_nom

T_stg

T_use

f_tol

f_age

-6

C-2 TYPE

20 kHz to 120 kHz

-20 °C to +70 °C

-10 °C to +60 °C

1.0 µW Max.

±20 × 10 ,±50 × 10 ,±100 × 10

-6

C-4 TYPE

32 kHz to 120 kHz

Conditions / Remarks

Please contact us about available

frequencies.

Storage as single product.

±50 × 10 ,±100 × 10

-6

+25 °C, DL=0.1 µW

Turnover temperature

Parabolic coefficient

Load capacitance

Motional resistance (ESR)

Motional capacitance

Shunt capacitance

Frequency aging

+25 °C ± 5 °C

0.04

× 10 / °C Max.

6 pF to ∞

As per table below

4.0 fF to 0.6 fF

2.0 pF to 0.6 pF

±5 × 10

-6

/ year Max.

+25 °C, First year

Please specify

Motional resistance

Frequency

Motional resistance

C-2 TYPE

31.2 kHz≦f_nom＜40 kHz

35 kΩ Max.

40 kHz≦f_nom＜90 kHz

20 kΩ Max.

90 kHz≦f_nom≦120 kHz

12 kΩ Max.

20 kHz≦f_nom＜31.2 kHz

55 kΩ Max.

Motional resistance

Frequency

Motional resistance

C-4 TYPE

38 kHz≦f_nom＜60 kHz

30 kΩ Max.

60 kHz≦f_nom＜74 kHz

25 kΩ Max.

74 kHz≦f_nom≦100 kHz

22 kΩ Max.

100 kHz＜f_nom≦120 kHz

15 kΩ Max.

32 kHz≦f_nom＜38 kHz

55 kΩ Max.

Product name

(Standard form)

C-002RX 32.768000kHz 12.5 +20.0-20.0

①

②

③

④

①Model

②Frequency

③Load

capacitance(pF)

④Frequency

tolerance(

+25

C)

(Unit:mm)

-6

External dimentions

Model

C-002RX

C-2 TYPE

C-004R

C-4 TYPE

C-005R

6.0 Max.

5.0 Max.

4.6 Max.

4.0 Min.



2.0 Max.



1.5 Max.



1.2 Max.



0.2



0.18



0.15

0.7

0.5

0.3
