3-1542003-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Thermal management products> 3-1542003-4

Preview

3-1542003-4: Description35mm HS assy ultem CL; CategoryThermal management products; File Size23KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

3-1542003-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1542003-4	-	-	View	Buy Now

3-1542003-4 Overview

35mm HS assy ultem CL

3-1542003-4 Parametric

Parameter Name	Attribute value
Datasheets
3-1542003-4 Drawing
RoHS Informati
3-1542003-4 Statement of Compliance
RoHS 2 Stateme
Standard Package	500
Category	Fans, Thermal Manageme
Family	Thermal - Heat Sinks
Other Names	HTS559-U

Preview

Download Datasheet

View All

8

7

6

5

4

3

LTR

2

1

REVISION(S)

DESCRIPTION

ECN: 0S60-0055-04

ECR-06-014978

INIT

APP'D

2

D

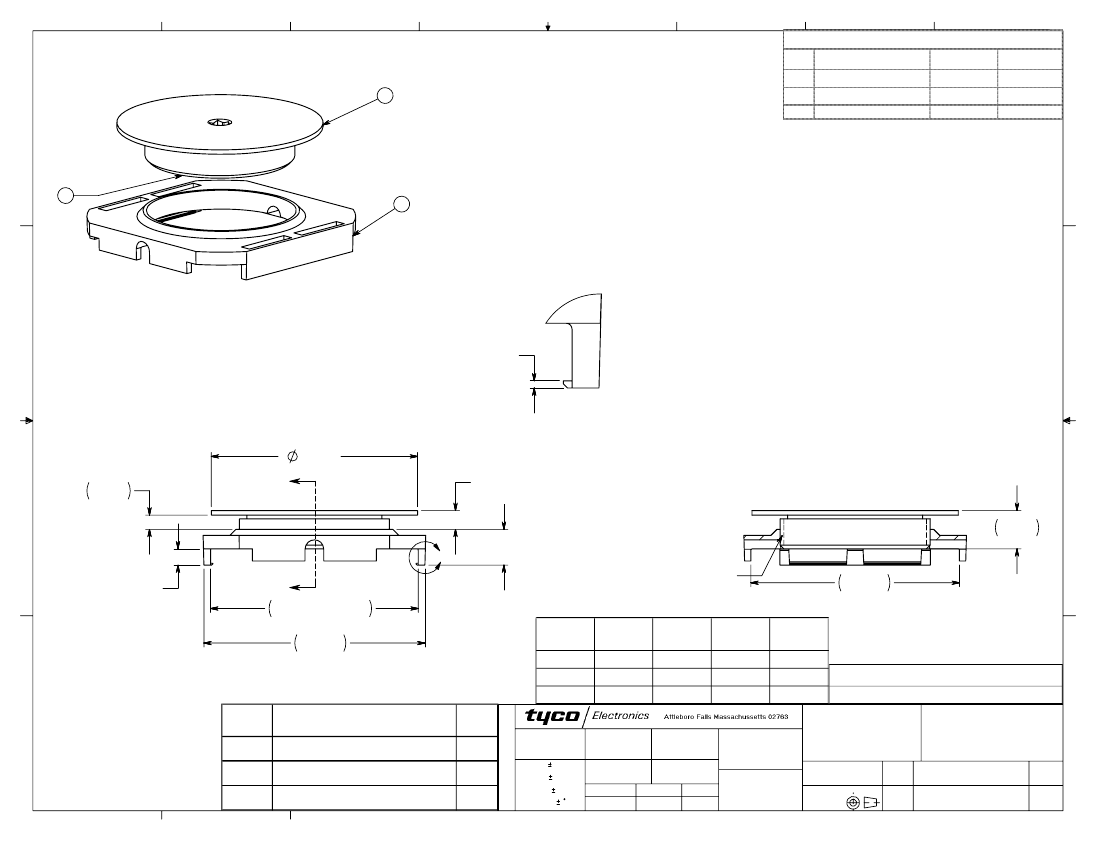

1-FIN HEAT SINK: 1.375 DIA.

0.255 HT.

O

A

E.T 03/09/04 S.D 03/11/04

E.T 6/23/06 V.K 6/26/06

D

1. MATERIAL:

HEAT SINK: ALUM. (BLACK ANODIZE)

CLIP:

BLACK PEI (UL94-VO)

3

1

4-LEG CLIP SIZE: 35mm

2. BEFORE THE HEATSINK APPLICATION, THE USER SHOULD

IDENTIFY THE SPECIFICATION OF MAXIMUM LOAD ON

THE BGA PACKAGE.

HEATSINK TORQUE SPECIFICATIONS CONVERTED TO FORCE.

BARE DIE PACKAGE:

2.0 POUND-FORCE INCH TORQUE = 8.1 POUND-FORCE

(0.23 NEWTON METER TORQUE = 36.03 NEWTON)

2.5 POUND-FORCE INCH TORQUE = 10.1 POUND-FORCE

(0.28 NEWTON METER TORQUE = 44.93 NEWTON)

C

.012±.001

FULL SIZE LID PACKAGE:

2.0 POUND-FORCE INCH TORQUE = 6.9 POUND-FORCE

(0.23 NEWTON METER TORQUE = 30.69 NEWTON)

DETAIL C

SCALE 6 : 1

1.375

.095

B

2.5 POUND-FORCE INCH TORQUE = 8.7 POUND-FORCE

(0.28 NEWTON METER TORQUE = 38.70 NEWTON)

3. REMOVE CLIP WITH REMOVAL TOOL P/N: 1542616-1

B

.125 MAX

4. RoHS COMPLIANT AND CERTIFIED.

B

.255

C

.108±.005

B

1.384 LIP LEG

1.474

° C/W @ ° C/W @ ° C/W @ ° C/W @

Power

Ambient 200 LFM 400 LFM 600 LFM

5 Watts

12.77

8.19

5.26

4.31

10 Watts

11.46

8.05

5.21

4.51

15 Watts

10.60

7.93

5.45

4.41

.238±.005

1 - 27 UNS - 2A

THREAD

1.390

SECTION B-B

CUSTOMER DRAWING

SPECIFICATIONS ARE SUBJECT TO CHANGE W ITHOUT NOTICE

DO NOT SCALE

A

ITEM

1

2

3

8

7

DESCRIPTION

MOUNTING CLIP

HEAT SINK

INTERFACE

QTY

1

UNLESS OTHERWISE

SPECIFIED

TOLERANCES ARE:

.XX

.XXX

.XXXX

ANGLES

.

DRAWN BY:

DATE

MATERIAL:

3/9/04

SEE NOTE

FINISH:

E.TAO

ENGINEER:

DATE

CONFIDENTIAL PROPERTY OF TYCO

ELECTRONICS. NOT TO BE DISCLOSED

TO OTHERS. REPRODUCED OR USED FOR

ANY PURPOSES EXCEPT AS AUTHORIZED

IN WRITING BY AN AUTHORIZED OFFICIAL

OF TYCO. MUST BE RETURNED TO TYCO

ON DEMAND, ON COMPLETION OF ORDERS

OR OTHER PURPOSES FOR WHICH LENT.

DIMENSONS ARE IN:

TITLE:

35mm HEATSINK

ASSEMBLY

(HTS559-U)

3-1542003-4

SHEET:

A

S.D

FILENAME

PROJECT

3/9/04

SYSTEM

INCHES

SEE NOTE

TNIRD ANGLE

PROJECTION

SCALE:

1.5:1

SIZE:

PART NO:

1 OF 1

REV:

A

DWG. NO.

C-3-1542003-4

A
