KN3270036 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> KN3270036

KN3270036: Descriptionosc XO 32.768khz cmos smd; CategoryPassive components oscillator; File Size580KB，2 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

KN3270036 Overview

osc XO 32.768khz cmos smd

KN3270036 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
package instruction	DILCC4,.2,200
Reach Compliance Code	compli
ECCN code	EAR99
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
power supply	2.5 V
Certification status	Not Qualified
Maximum slew rate	0.4 mA
Nominal supply voltage	2.5 V
surface mount	YES

Preview

Download Datasheet

View All

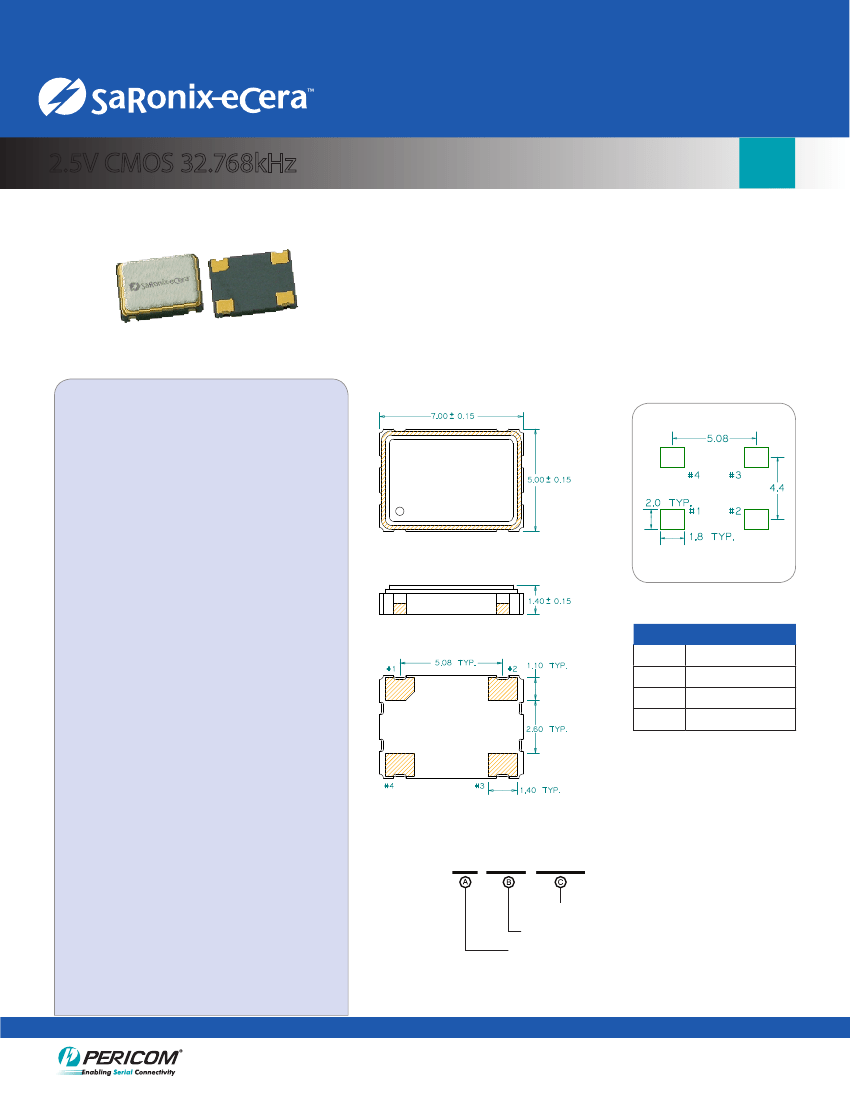

KN Series 2.5V CMOS kHz Crystal Oscillator

7.0 x 5.0mm

2.5V CMOS 32.768kHz

KN Series Real Time Clock Oscillator

7.0x5.0mm (XO)

7.0 x 5.0mm Ceramic SMD

Product Features

•32.768 kHz

•2.5V

CMOS compatible logic levels

•Low

power standby mode (< 10µA)

•Low

power active mode (< 0.25mA typ.)

•Designed

for standard reflow and washing

techniques

•Pb-free and RoHS/Green compliant

Package: (

Dimensions are in mm

)

Recommended Land Pattern:

CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.

Product Description

The KN Series is a real time clock oscillator

that achieves superb stability over a broad

range of operating conditions. The output

clock signal is compatible with LVCMOS/LVTTL

logic levels. The device, available on tape and

reel, is contained in a 7.0 x 5.0mm surface-

mount ceramic package.

Pin Functions:

Function

OE Function

Ground

Clock Output

Applications

Real-Time Clock Oscillator

CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.

Part Ordering Information:

KN XXX YYYY

YYYY = Specification½Code

XXX = Frequency½Code

Product½Family

Following the above format, SaRonix-eCera part numbers will be assigned upon

confirmation of exact customer requirements.

SaRonix-eCera™ is a Pericom® Semiconductor company • US: +1-408-435-0800 TW: +886-3-4518888

11-0039

All specifications are subject to change without notice.

• www.saronix-ecera.com

KN 2.5V REV B

2011_DEC 07

KN3270036 Related Products

	KN3270036	KN3270028	KN3270032	KN3270026	KN3270027
Description	osc XO 32.768khz cmos smd	osc XO 32.768khz cmos smd	osc XO 32.768khz cmos smd	osc XO 32.768khz cmos smd	osc XO 32.768khz cmos smd
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Reach Compliance Code	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	4	4	4	4	4
Nominal operating frequency	0.032768 MHz	0.032768 MHz	0.032768 MHz	0.032768 MHz	0.032768 MHz
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-20 °C	-40 °C	-20 °C	-20 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200
power supply	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	0.4 mA	0.4 mA	0.4 mA	0.4 mA	0.4 mA
Nominal supply voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES	YES
