PFB0824UHE-F00

Description
24v DC fan 80x80x38 MM
CategoryThermal management products
File Size421KB，1 Pages
ManufacturerDELTA
Websitehttp://www.deltaww.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

PFB0824UHE-F00 Online Shopping

Suppliers Part Number Price MOQ In stock
PFB0824UHE-F00 - - View Buy Now

PFB0824UHE-F00 Overview

24v DC fan 80x80x38 MM

PFB0824UHE-F00 Parametric

Parameter NameAttribute value
Datasheets
PFB 80x80x38MM
PFB0824UHE-F00
Product Photos
PFB0824UHE-F00
Other Related Documents
Part Number Break-Down and Other Notes
Product Training Modules
Fan Options
RoHS Informati
DC Fans RoHS Cert of Compliance
Standard Package90
CategoryFans, Thermal Manageme
FamilyDC Fans
Voltage - Rated24VDC
Size / DimensiSquare - 80mm L x 80mm H x 38mm W
Air Flow107.3 CFM (3.04m³/min)
Static Pressure1.368 in H2O (340.8 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesSpeed Sensor (Tach)
Noise61 dB(A)
Power (Watts)18.5W
RPM7500 RPM
Terminati3 Wire Leads
Ingress Protecti-
Weigh0.441 lb (200.03g)
Operating Temperature14 ~ 140°F (-10 ~ 60°C)
Current Rating0.770A
Voltage Range14 ~ 26.4VDC
Life Expectancy50000 hrs @ 40°C
Material - FramePlastic
Material - BladePlastic
Dynamic CatalogPFB Series
Associated ProducR87F-FL80-ND - FAN FILTER FOR 80X80MM PLASTIC1053-1403-ND - FAN GUARD 80MM WIRE MESH BLACK1053-1402-ND - FAN GUARD 80MM WIRE MESH NATURAL1053-1394-ND - FAN FILTER 80MM 45PPI1053-1393-ND - FAN FILTER 80MM 30PPI1053-1382-ND - FAN GUARD PLASTIC 80MM1053-1381-ND - FAN GUARD METAL 80MM BLACK1053-1380-ND - FAN GUARD METAL 80MM381-2396-ND - FAN FILTER ASSEMBLY 80MM381-2344-ND - GRILL GRD FLTR&SPACR F/80MM FANR87F-FG80-ND - GRILL GUARD FOR 80MM FANS259-1626-ND - FAN GUARD 80MM METAL08258-ND - WIRE FORM FAN GUARD 80MM08221-ND - WIRE FORM FAN GUARD 80MM08191-ND - WIRE FORM FAN GUARD 80MM08188-ND - WIRE FORM FAN GUARD 80MM08156-ND - WIRE FORM FAN GUARD 80MM08138-ND - WIRE FORM FAN GUARD 80MM08121-ND - WIRE FORM FAN GUARD 80MM09325-R-ND - PLASTIC FAN GUARD RETAINER 80MMQ845-ND - PLASTIC FAN GUARD 80MMQ343-ND - FAN FILTER SCREEN 80MMQ330-ND - FILTER GUARD EMI 80MMQ325-ND - FILTER MEDIA 80MM WHITEQ320-ND - FINGER GUARD 80MM BLACKRMS-080-NV-ND - FILTER METAL SCREEN 80X80RFF-080-NV-ND - FILTER FELT 80X80RCPF-080-NV-ND - ASSY GUARD/COVER/FILTER 80X80RCP-080-NV-ND - ASSY GUARD/CVR/SCREEN/FLTR 80X80RFG-080-NV-ND - FAN FINGER GUAR

Preview

Download Datasheet

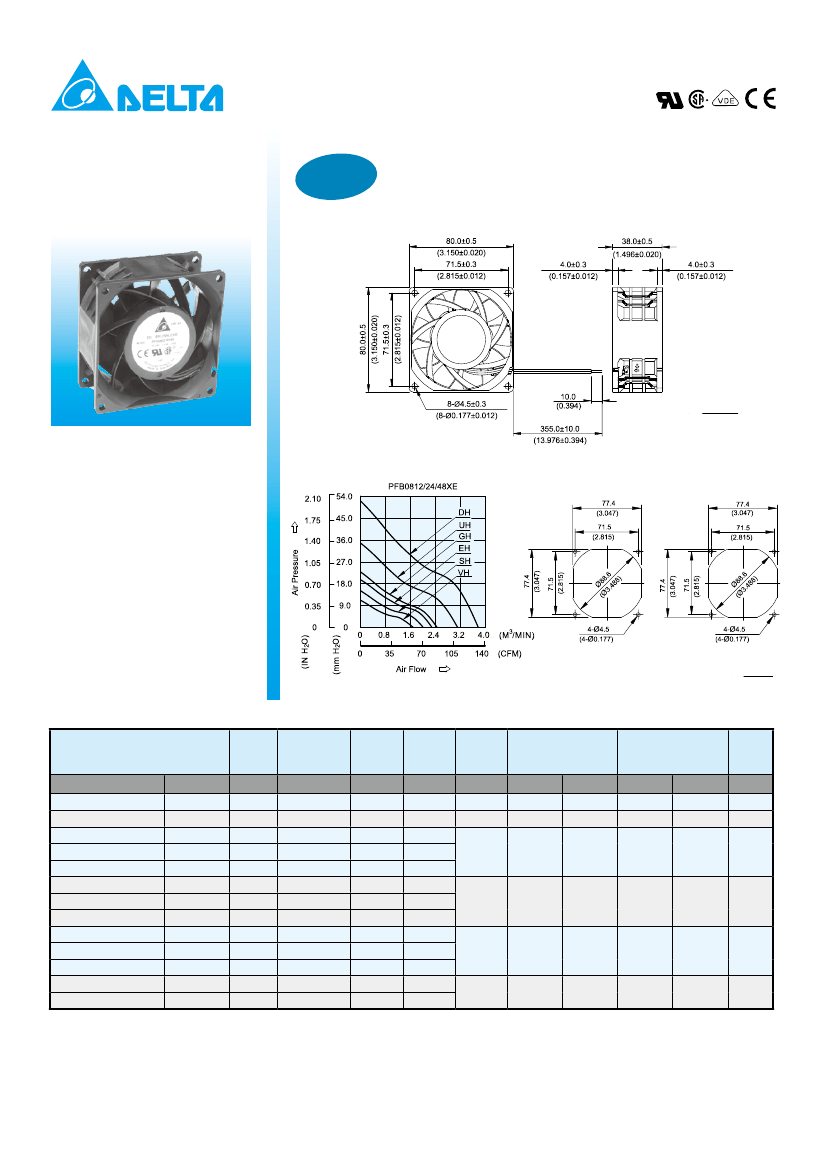

PFB
80 x 80 x 38 MM SERIES
DRAWING
■
DIMENSIONS
LABEL
UNIT :
mm
(INCH)
*
Bearing Type
Ball Bearings
*
Material
Impeller & Frame: Plastic (UL 94V-0)
Lead Wires :
*
UL 1007 AWG #24 OR Equivalent
Red Wire Positive(+)
Black Wire Negative(-)
*
Weight : 200g (7.05 oz)
■
P
& Q CURVE
(AT RATED VOLTAGE)
■
MOUNTING
OUTLET SIDE
PANEL CUTOUT
INLET SIDE
UNIT:
mm
(INCH)
MODEL
PART NO.
PFB0812VHE
PFB0812SHE
PFB0812EHE
PFB0824EHE
PFB0848EHE
PFB0812GHE
PFB0824GHE
PFB0848GHE
PFB0812UHE
PFB0824UHE
PFB0848UHE
PFB0812DHE
PFB0824DHE
FUNCTION
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
Rated
Voltage
VDC
12
12
12
24
48
12
24
48
12
24
48
12
24
Operating
Voltage
Range
VDC
7.0 to 13.2
7.0 to 13.2
7.0 to 13.2
14.0 to 26.4
28.0 to 56.0
7.0 to 13.2
14.0 to 26.4
28.0 to 56.0
7.0 to 13.2
14.0 to 26.4
28.0 to 56.0
7.0 to 13.2
14.0 to 26.4
Input
Current
Amp
0.39
0.51
0.72
0.36
0.23
0.85
0.45
0.27
1.55
0.77
0.42
2.75
1.35
Input
Power
Watt
4.68
6.12
8.64
8.64
11.04
10.20
10.80
12.96
18.60
18.48
20.16
33.00
32.40
Speed
R.P.M.
4200
4900
5600
Maximum
Air Flow
m
3
/min
1.649
1.967
2.243
CFM
58.23
69.49
79.23
Maximum
Air Pressure
mmH
2
O
10.70
14.53
19.50
IN H
2
O
0.421
0.571
0.767
Noise
dB-A
45.1
49.3
53.0
6100
2.448
86.44
22.80
0.898
55.5
7500
9000
3.038
3.754
107.30
132.56
34.75
51.57
1.368
2.030
61.0
65.0
* Function type is optional.
* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
* Noise is measured in anechoic chamber in free air, one meter from intake side.
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
104
http://www.deltaww.com
