Part Number

Search

19032556A

Description
fan 24v 80x32mm 45cfm st24z3
CategoryThermal management products
File Size151KB,1 Pages
ManufacturerComair Rotron
Environmental Compliance
Download Datasheet Parametric View All

19032556A Overview

fan 24v 80x32mm 45cfm st24z3

19032556A Parametric

Parameter NameAttribute value
Datasheets
Sprint Fan Drawing
032556 - ST24Z3
Fans, Blowers, Impellers Catalog
Product Photos
032556
Product Training Modules
Air Moving & Cooling Solutions
3D Model
sprint-dc.s
PCN Part Numbe
Multiple Devices 17/Jan/2013
Standard Package1
CategoryFans, Thermal Manageme
FamilyDC Fans
Voltage - Rated24VDC
Size / DimensiSquare - 80mm L x 80mm H x 32mm W
Air Flow45.0 CFM (1.27m³/min)
Static Pressure0.372 in H2O (92.7 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise-
Power (Watts)6.70W
RPM4700 RPM
Terminati2 Wire Leads
Ingress Protecti-
Weigh0.397 lb (180.08g)
Operating Temperature-
Current Rating0.260A
Voltage Range12 ~ 28VDC
Life Expectancy-
Material - FramePlastic
Material - BladePlastic
Other Names032556032556 - ST24Z3CR538

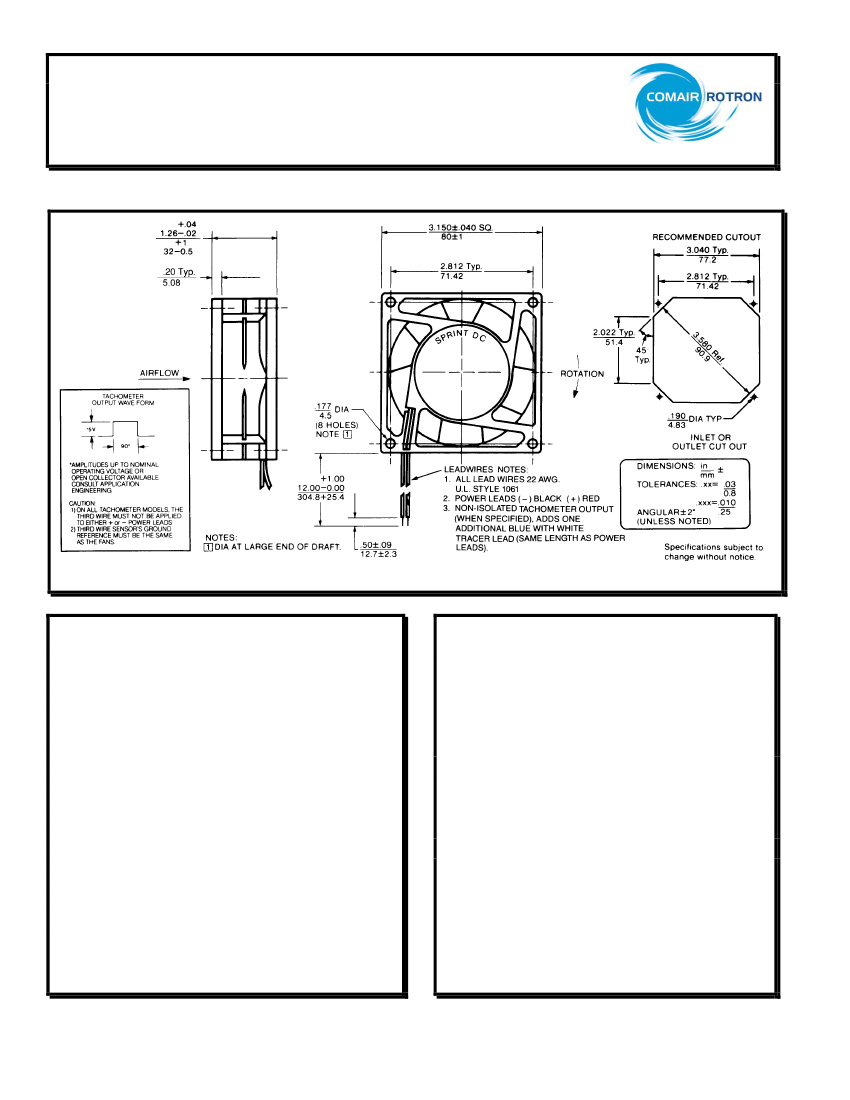

SPECIFICATIONS
(RoHS Compliant)
Model Number:
Part Number:
SPEC
Number:
ST24Z3
19032556A
26013978A01
Feb 1, 2013
Mechanical Drawing:
Motor:
Nominal Voltage
Operating Voltage Range
Nominal Running Current
Max. Locked Rotor Current
Running Power
Average Speed
Bearings
Air Flow
Acoustic:
= 24 vdc
= 12 - 28 vdc
= 0.260 amps
= 1.130 amps
= 6.7 watts
= 4700 RPM
= Ball
= 45 CFM
= 51.5 dBA
Additional Features:
Brushless DC motor
Locked Rotor Protection
Polarity Protected
Automatic Restart Capability
Operating Temperature:
Storage Temperature:
-10C to 70C
-40C to 85C
Termination:
12” Lead wires, 22 AWG, UL 1061
Red
= Power (+)
Black = Return (-)
Construction:
Venturi: Plastic, Black, UL 94V-0.
Propeller: Plastic, Black, UL 94V-0
Agency Approvals:
UL, CE
Life Expectancy:
This fan is designed for continuous duty life of 78,000
hours at 40C.
