REVISION B
DO NOT
SCALE FROM
THIS PRINT
.200 5.08
REF
N/2 + 1
N
N/2
C
MRTDX-XX-XXX-X-XX.X-XX
FEP CABLE OPTION
-T: FEP
(LEAVE BLANK FOR
STANDARD PVC INSULATION)
.300 7.62
REF
No OF POSITIONS
-02 THRU -15 (PER ROW)
WIRE GAUGE (AWG)
-20, -22, -24, -26, -28, -30
FEP: -20, -24, -28, -30
COLOR CODE
-C (SEE TABLE 2)
(LEAVE BLANK FOR
STANDARD BLACK CABLE)
(NOT AVAILABLE WITH FEP OPTION)
PLATING SPECIFICATION
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
PINOUT
(LEAVE BLANK FOR SINGLE END ASSEMBLY)
-1: TRANSFER LATCH UP, STRAIGHT
(PIN 01 TO 01, SEE FIG 2 & 4, SHT 2)
-4: TRANSFER LATCH DOWN, STRAIGHT
(PIN 01 TO N, SEE FIG 3 & 5, SHT 2)
LATCH OPTION
(LEAVE BLANK FOR SINGLE END ASSEMBLY)
-L: PLASTIC LATCH
(SEE FIG 4 & 5, SHT 2)
-M: METAL LATCH
(SEE FIG 2 & 3, SHT 2)
ASSEMBLED LENGTH
SPECIFY IN INCHES [USE DWCX-XX-XX]
(SINGLE END: 03.0[76] INCH MINIMUM,
DOUBLE END: 03.3[84] INCH MINIMUM)
01
.100 2.54 REF
"A" REF
C
(SEE TABLE 4, SHT 3)
.099 2.52
REF (2 PLCS)
"A"
IPR1-XX-D
C
.690 17.53
REF
.360 9.14
REF
C
T-1M74-XX-X
(SEE TABLE 1, SHT 2)
XX.XX
(SEE NOTE 8)
"A"
DWCX-XX-XX
(SEE TABLE 1, SHT 2)
'B'
.004 0.10 REF
(SEE NOTE 3)
NOTES:

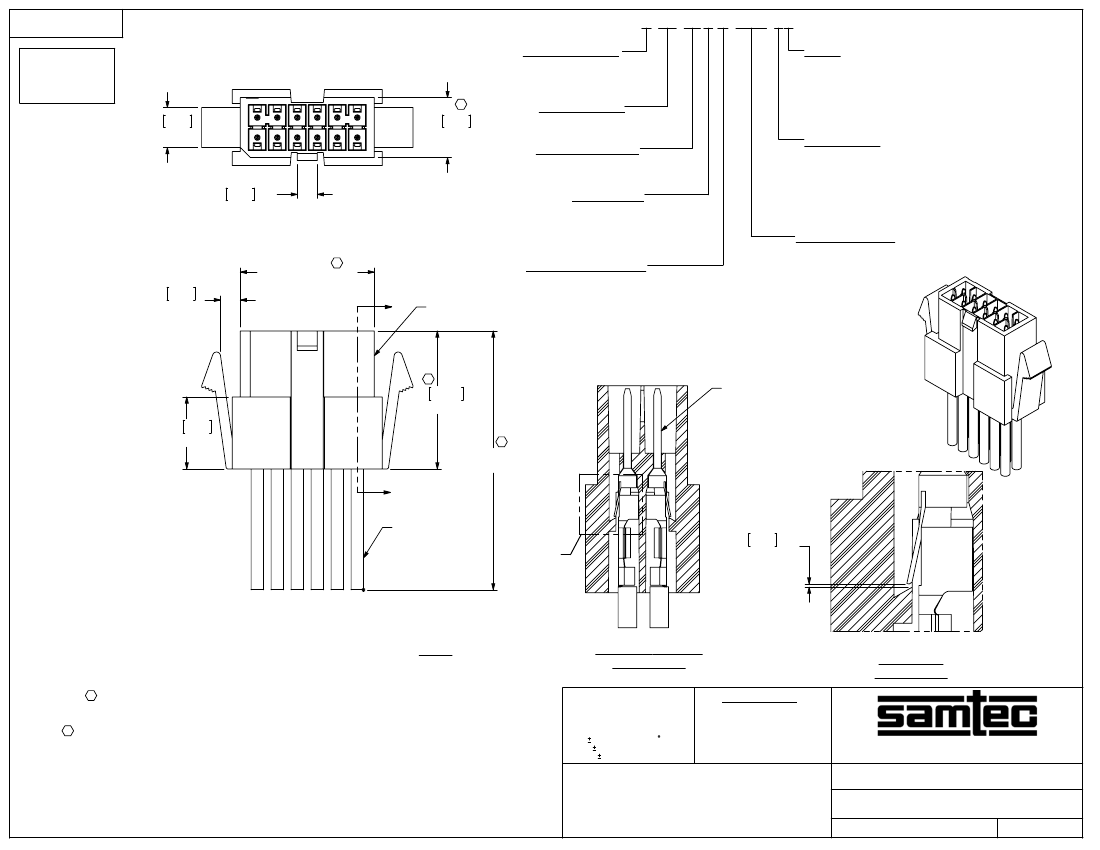

MRTD-06-XXX-X-XX.X SHOWN
FIG 1
SECTION "A"-"A"
SCALE 3 : 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
DETAIL 'B'
SCALE 8 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PULLOUT FORCE: 0.5 lbs [2.22 N].
3. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS INTO PLACE.
C
4. ALL FINISHED GOODS ARE TO BE ELECTRICAL TESTED INCLUDING
HI-POT TEST @ 1000 VOLTS DC.
5. TINNED COPPER WIRE IS ROHS COMPLIANT.
6. PARTS ARE TO BE LAYER PACKAGED.
7. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING AND ITS REQUIREMENTS.
8. FOR LENGTHS LESS THAN 12 IN[304.8], TOLERANCE SHALL BE ±.125[3.18].
FOR OTHER LENGTHS, TOLERANCES SHALL BE ± 2%.
9. PANEL HOLE TO BE PUNCHED OUT IN THE SAME DIRECTION AS INSERTION
INTO THE PANEL.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
HOUSING: NYLON 66, COLOR: NATURAL
CONTACT: PHOS BRONZE
CABLE: INSULATION: SEE CALLOUT
WIRE: TINNED COPPER
F:\DWG\MISC\MKTG\MRTDX-XX-XXX-X-XX.X-XX-MKT.SLDDRW
.100[2.54] PANEL MOUNT TERMINAL CABLE ASSEMBLY
MRTDX-XX-XXX-X-XX.X-XX
7/5/2013
SHEET
1
OF
3
BY:
JESSIE W
REVISION B
XX.XX
C
(SEE NOTE 8)
C-179-XX-X
N/2
N
01
N/2 + 1
N/2
N
N
N/2
01
N/2 + 1
N/2
N
01
N/2 + 1
N/2 + 1
01
SEE TABLE 4, SHT 3
SEE TABLE 4, SHT 3
END 1
END 2
IPD1-XX-D-M
SEE TABLE 4, SHT 3
END 1
END 2
SEE TABLE 4, SHT 3

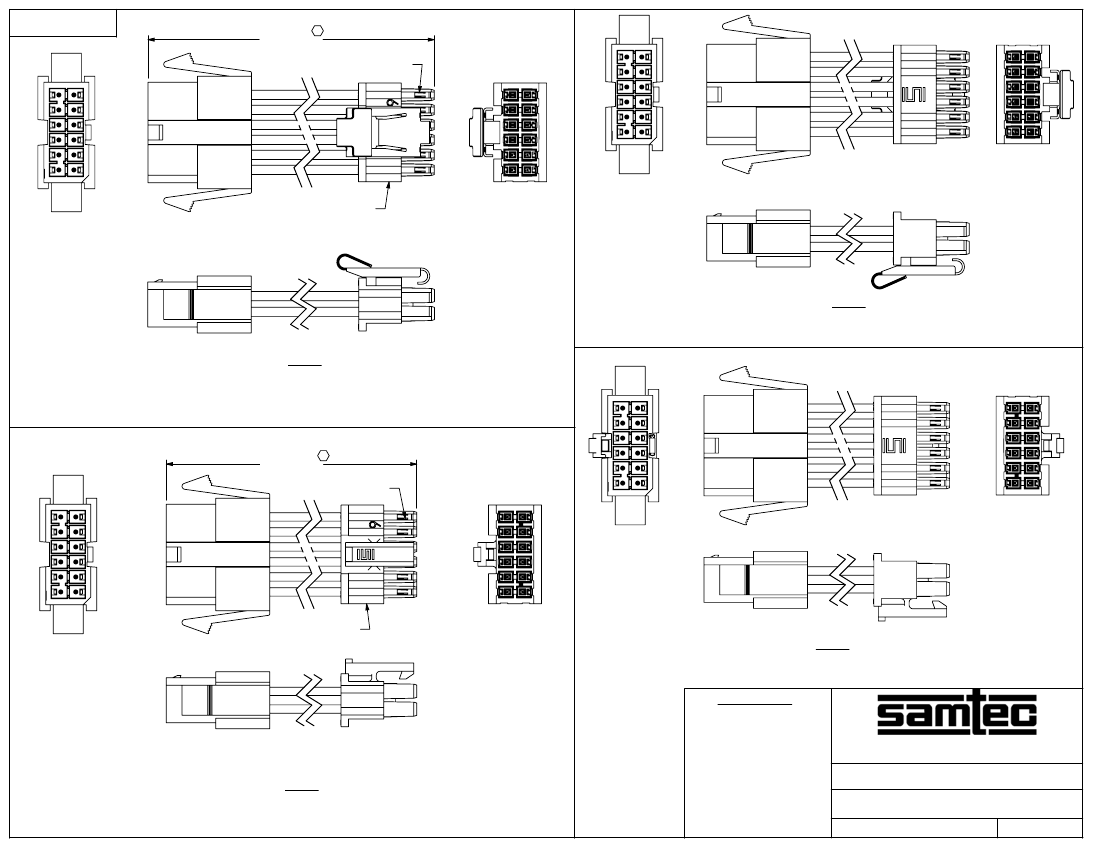

MRTD-06-XXX-X-XX.X-M4 SHOWN
(TRANSFER,LATCH DOWN, STRAIGHT)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 2)
MRTD-06-XXX-X-XX.X-M1 SHOWN
(TRANSFER,LATCH UP, STRAIGHT)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
N/2
N
01
N/2 + 1
FIG 3
FIG 2
XX.XX
C
(SEE NOTE 8)
C-179-XX-X
N/2
N
N
N/2
01
N/2 + 1
N/2
N
SEE TABLE 4, SHT 3
SEE TABLE 4, SHT 3
END 1
END 2
01
N/2 + 1
N/2 + 1
01
IPD1-XX-D-K
SEE TABLE 4, SHT 3
END 1
END 2
SEE TABLE 4, SHT 3
MRTD-06-XXX-X-XX.X-L4 SHOWN
(TRANSFER,LATCH DOWN, STRAIGHT)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 4)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 5
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
MRTD-06-XXX-X-XX.X-L1 SHOWN
(TRANSFER,LATCH UP, STRAIGHT)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
DO NOT SCALE DRAWING
SHEET SCALE: 3:2
.100[2.54] PANEL MOUNT TERMINAL CABLE ASSEMBLY
DWG. NO.
MRTDX-XX-XXX-X-XX.X-XX
7/5/2013
SHEET
2
OF
3
BY:
JESSIE W
F:\DWG\MISC\MKTG\MRTDX-XX-XXX-X-XX.X-XX-MKT.SLDDRW
REVISION B

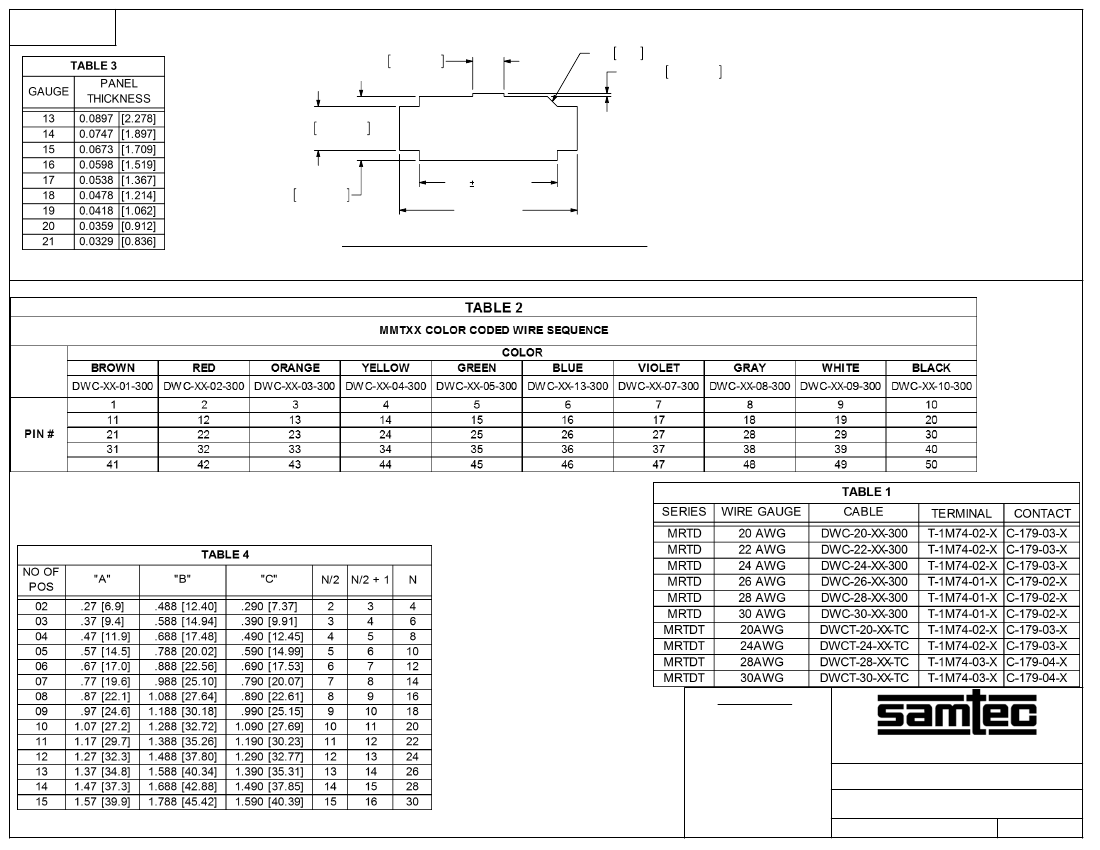

.157±.008 3.99±0.20
.050 1.27 x 45°
.015±.004 0.38±0.10
.220±.004 5.59±0.10
.320±.004 8.13±0.10
"C" .004[0.10]
"B"
+.002
[+0.05]
- .004
[-0.10]
RECOMMENDED PANEL CUT OUT DIMENSIONS
THICKNESS: SEE TABLE 3
(SEE NOTE 9)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100[2.54] PANEL MOUNT TERMINAL CABLE ASSEMBLY
DWG. NO.
MRTDX-XX-XXX-X-XX.X-XX
7/5/2013
SHEET
3
OF
3
BY:
JESSIE W
F:\DWG\MISC\MKTG\MRTDX-XX-XXX-X-XX.X-XX-MKT.SLDDRW
