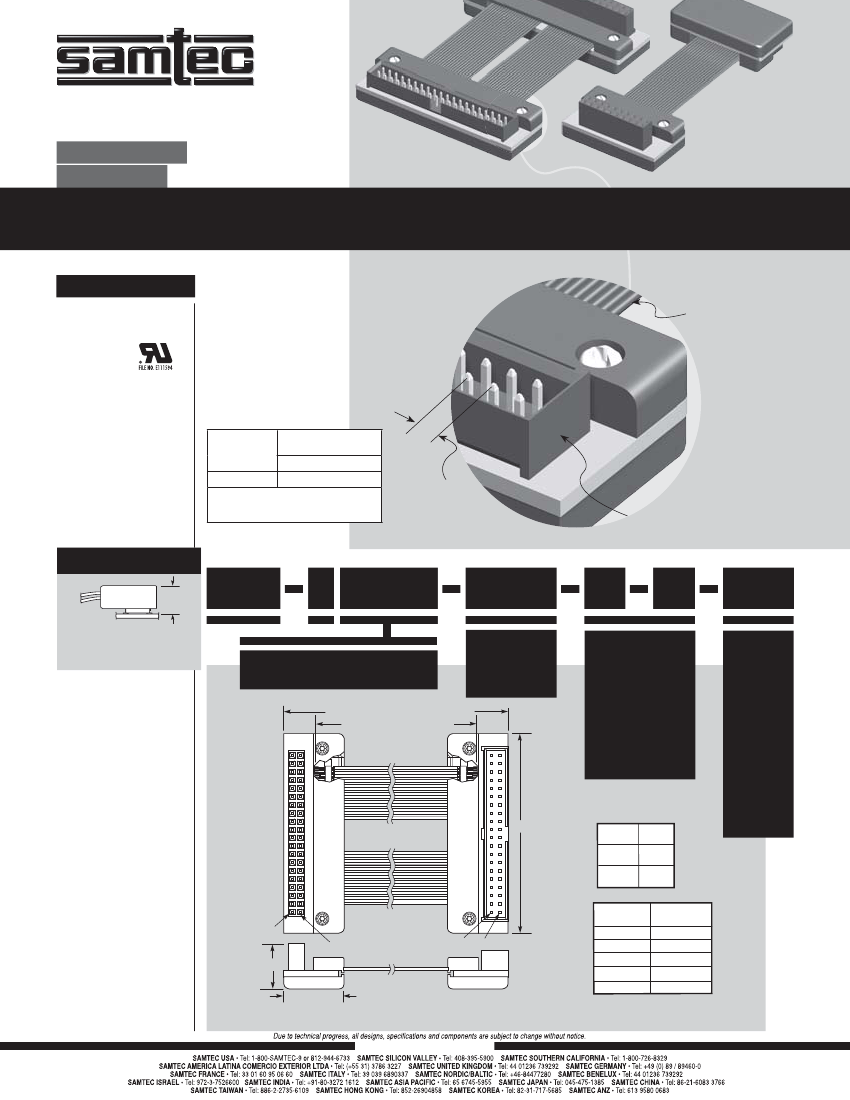

F-211-1 SUPPLEMENT
(2,00mm) .0787"
THSC SERIES
THSC–120–07.50–TU–SU–1
THSC–110–06.50–SU–TD–3
HIGH SPEED CABLE ASSEMBLIES
SPECIFICATIONS
For complete specifications
see www.samtec.com?THSC
Cable:
38 AWG coax
micro ribbon
Signal Routing:
50Ω Single-Ended
Overall Length:
(152mm) 6" to
(1m) 40" standard
Cable Flexing Life:
>40,000 cycles
Cable Bending Radius:
<2,5mm
Plating:
Au over 50µ" (1,27µm) Ni
Current Rating:
300 millamp max
Propagation Delay:
4.5 nsec/meter
Operating Temp Range:
-40°C to +105°C
RoHS Compliant:
Yes
Mates with:
SQT, SQW, ESQT, SMM,
TCSD, TMMH, TMM,
MTMM, MMT, TW, LTMM,
ZLTMM, ESQT
38 AWG
micro ribbon
coax cable
Cable
Length
10" (254mm)
Rated @ 3dB
Insertion Loss
THSC
175 MHz / 0.35 Gbps
Performance and complete test data
available at www.samtec.com?THSC
or contact sig@samtec.com
(2,00mm)
.0787"
pitch
Header or Socket
Termination
APPLICATION
(12,50)
.492
THSC
1
NO. OF PINS
PER ROW
WIRE
LENGTH
END
NO. 1
END
NO. 2
WIRING
OPTION
Mated with SQT or LTMM.
Processing conditions will
affect mated height.
–“XX.XX”
10, 13, 20, 22, 25
(Call for other sizes)
OAL = Wire Length + (15,24) .600
Wire Length
±
(1,27) .050
= Wire Length
in Inches
(152mm) 06.00"
minimum
–TU
= Terminal Up
–1
= Pin 1 to
Pin 1
–TD
= Terminal Down
–2
= Pin 1 to
Pin 2
–SU
= Socket Up
–SD
= Socket Down
Important Note:
For optimal performance,
at least one transmission line
must be dedicated to ground.
For more information, go to
www.samtec.com/cable_
builder/xhsc_grounding.aspx
Note:
Contact Samtec for high
speed characterization.
Note:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Note:
Verify part number with
Samtec’s Interactive Cable
Builder at www.samtec.com/
cable_builder/pitch.aspx
Note:
This Series is non-standard,
non-returnable.
–3
= Pin 1 to
Second
Last Pin
–4
A
END
– TX
–SX
B
(9,32)
.367
(10,85)
.427
= Pin 1 to
Last Pin
01
02
B
(14,61) .575
02
01
NO. OF
POSITIONS
–10
–13
–20
–22
–25
A
(28,37) 1.117
(32,39) 1.275
(48,39) 1.905
(52,37) 2.062
(52,37) 2.062
END NO. 1
(–SU SHOWN)
END NO. 2
(–TU SHOWN)
WWW.SAMTEC.COM
