Low Profile SMD Package
RoHS Compliant (Note 7 Exemption)
Built-in load capacitor
Tape & Reel Packaging
ECS-SR1-B
SMD CERAMIC RESONATOR
The ECS-SR1-B Series SMD ceramic resonator includes built in
capacitors for reduced component count. The SMD Ceramic
resonator is an excellent low cost frequency control solution
when absolute frequency accuracy is not important.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
FREQUENCY
RANGE
(MHz)
FREQUENCY
ACCURACY
@ 25°C (%)
FREQUENCY
STABILITY
-20 ~ +80°C (%)
AGING FOR
TEN YEARS
(%)
ESR
(Ω)
MAX.
BUILT-IN
CAPACITANCE
(C1 & C2)
INSULATION
RESISTANCE
@ 10VDC
PART NUMBER *
ECS-SR1-
□.□ □-
B
2.00 ~ 8.00
± 0.5
± 0.3
± 0.3
40
30 pF
100 M
Ω
Min.

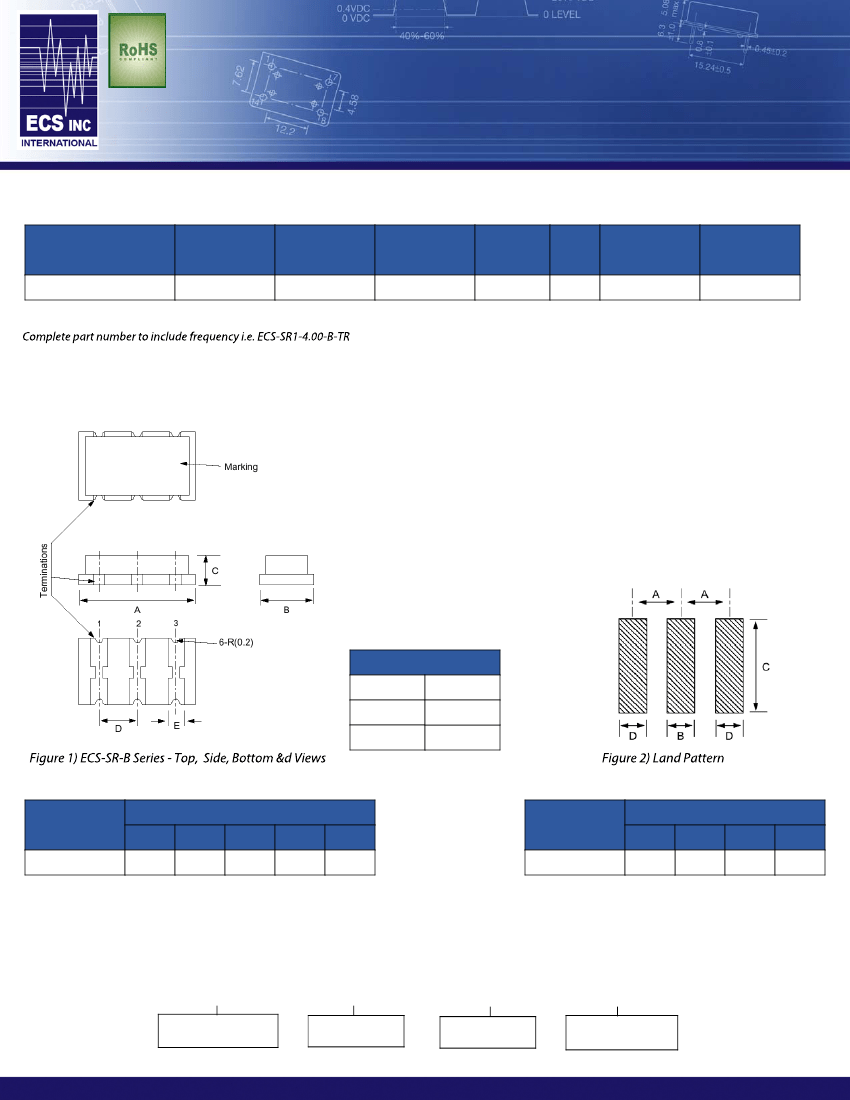

PACKAGE DIMENSIONS (mm)
PIN CONNECTIONS
#1
#2
#3
In/Out
Ground
Out/In
DIMENSIONS (mm)
PACKAGE TYPE
A
ECS-SR1
7.5
B
3.3
C
2.2
D
2.5
E
1.5
ECS-SR1
PACKAGE TYPE
A
2.5
DIMENSIONS (mm)
B
1.5
C
4.0
C
1.7
PART NUMBERING GUIDE: "Example" ECS-SR1-4.00-B-TR
ECS -
Series
SR1 = 2 ~ 8 MHz
-
Frequency
4.00 = 4.00 MHz
-
Version
B = SR-B Series
-
Packaging
TR = Tape & Reel
1105 South Ridgeview Road
Olathe, KS 66062
Phone: 913.782.7787
Fax: 913.782.6991
www.ecsxtal.com
ECS, Inc. International
1105 South Ridgeview Road
Olathe, KANSAS, 66062 USA
www.ecsxtal.com
913-782-7787
1-800-237-1041
Fax: 913-782-6991
May 16, 2007
Mike Huennekens
Director of Marketing and OEM Sales
E-mail: mikeh@ecsxtal.com
Phone: 1-800-237-1041
C E R A M I C
R E S O N A T O R/F I L T E R
Application Information Request
Attention:
All Customers
From:
Mike Huennekens, Director of Marketing and OEM Sales
Subject:
Ceramic Resonator Application Information Request
ECS is requesting that you complete the section below that will allow us to determine if the specific application is suitable for the ceramic
resonator/filters that you have requested.
Ceramic Resonators/Filters, both surface mount and through-hole type, are a much different frequency control solution than that of a crystal
based device. Not only are there “matching” issues to specific integrated circuits and processors with ceramic based piezoelectric
components but for multiple reasons ceramics are not the most advantageous nor robust frequency control solution for certain applications.
In addition, ECS does not approve the use of its ceramic products in Automotive, Military, Avionics, Life Sustaining or Life Support
systems or any other related medical application.
If the customer chooses to use this product in one or more of the noted applications without the written consent of ECS, Inc., ECS,
Inc. shall be held harmless, and given release of liability and indemnification from claims of any nature.
Please complete the following and submit this form as soon as possible.
ECS Part Number
Estimated Annual Usage
Has this part already been
approved for this application?
Has this part been ordered
previously for this application?
End Customer
Application Details
You Must Be Specific or this may
be returned for more information.
Yes
Yes
No
No
I certify that the above information is true and correct to the best of my knowledge and acknowledge that ECS will be held harmless if this
item is used in the restricted applications noted above.
__________________________________________
Company Name
__________________________________________
Print Your Name
__________________________________________
Title
__________________________________________
Signature
Date
** If this item will be used by a 3
rd
party ECS may require
a form be completed and signed by all parties.
To be completed by ECS Inc., International
Approved:
Disallowed:
Date: ____________________
Approved By: ______________________________________
Please direct any further inquires to Brad Slatten at
brads@ecsxtal.com
or Carla Williams at
carlaw@ecsxtal.com
. We thank you for your
understanding and patience in this process.
