ASSFLP-C16: Descriptionosc prog 3.3V 50ppm ctr sprd smd; CategoryPassive components; File Size103KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASSFLP-C16 Overview

osc prog 3.3V 50ppm ctr sprd smd

ASSFLP-C16 Parametric

Parameter Name	Attribute value
Datasheets
ASSFLP Series

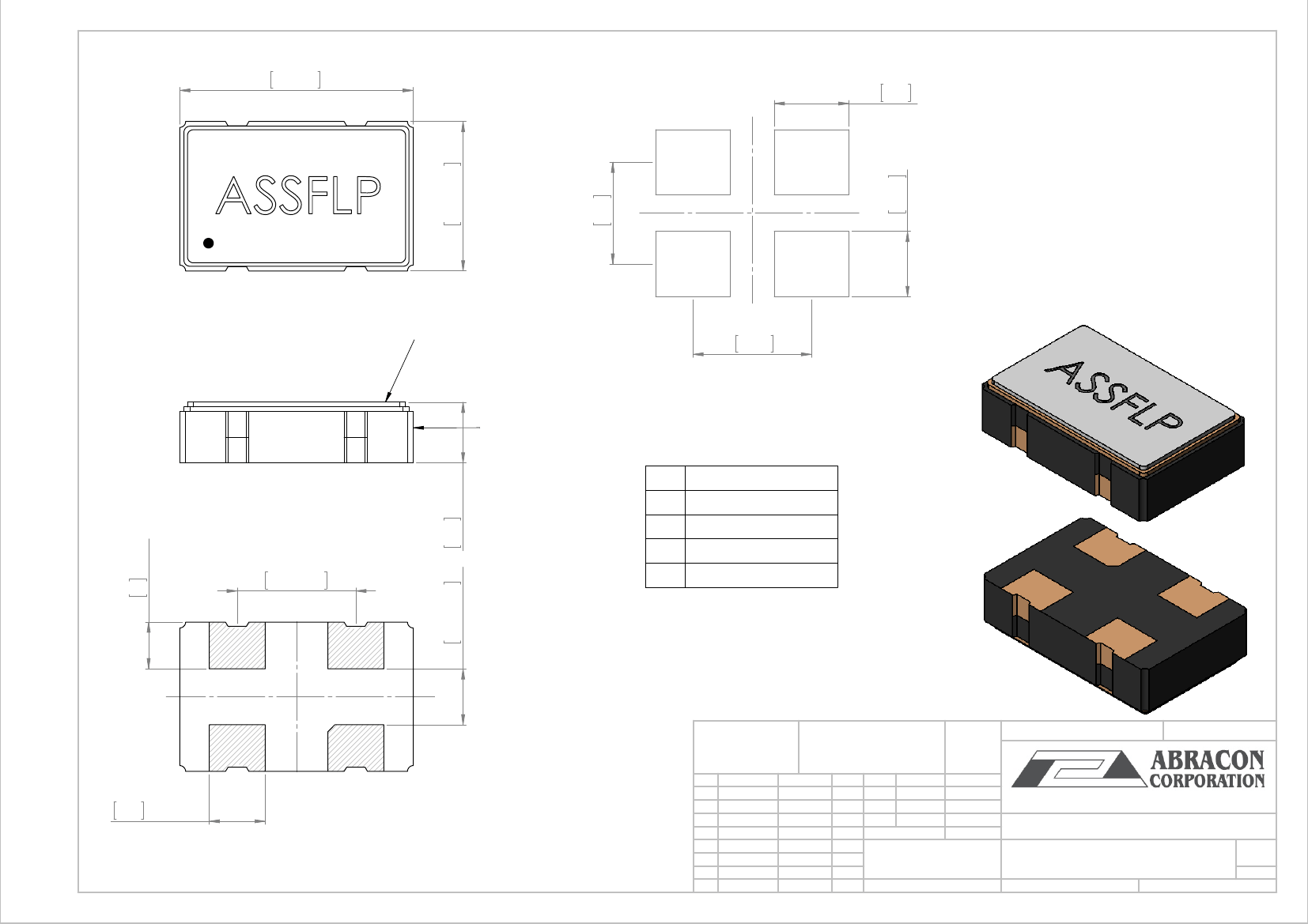

ASSFLP Drawing
Product Photos
ASSFLP SERIES
Mfg Application Notes
ULN Spread-Spectrum Oscillators AppNote
RoHS Informati
RoHS2/REACH Compliance
Featured Produc
Oscillator Series ASSVP and ASSFLP
3D Model
ASSFLP.pdf
ASSFLP.s
Standard Package	1,000
Category	Crystals and Oscillators
Family	Programmable Oscillators
Packaging	Bulk
Type	Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range	13MHz ~ 160MHz
Functi	Tri-State (Output Enable)
Outpu	CMOS
Voltage - Supply	3.3V
Frequency Stability	±50ppm
Operating Temperature	-40°C ~ 85°C
Spread Spectrum Bandwidth	±2.000%, Center Spread
Current - Supply (Max)	40mA
Mounting Type	Surface Mou
Package / Case	4-SMD, No Lead (DFN, LCC)
Heigh	0.051" (1.30mm)
Size / Dimensi	0.197" L x 0.126" W (5.00mm x 3.20mm)
Current - Supply (Disable) (Max)	-
Dynamic Catalog	ASSFLP Series with Ordering Guide

Preview

Download Datasheet

View All

4

0.197 ±0.004

5 ±0.1

Recommended Land Pattern

3

0.126 ±0.004

3.2 ±0.1

0.063

1.6

1

2

METAL CAP

0.100

2.54

CERAMIC BASE

0.051 MAX.

1.3

0.086

2.2

1

2

3

4

FUNCTION

Tristate

GND/Case

Output

VDD

0.039 REF.

1

2

0.047 ±0.008

1.2 ±0.2

0.100 ±0.008

2.5 ±0.2

Note: Recommend using an approximately 0.01uF

bypass capacitor between PIN 2 and 4.

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

0.055

1.40

-

0.047 REF.

1.2

4

Bottom view

3

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

SAAZVAT

XXXXXX

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

OSCILLATOR

MATERIAL:

DWG NO.

ASSFLP

SHEET 1 OF 1

A3

WEIGHT:

SCALE:15:1
