AD-EPG106-A: DescriptionPiano Dip Switch, 6 Switches, SPST, On-off, Vertical, 0.025A, 24VDC, 12 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size9MB，14 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Parametric View All

AD-EPG106-A Overview

Piano Dip Switch, 6 Switches, SPST, On-off, Vertical, 0.025A, 24VDC, 12 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle

AD-EPG106-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1159677261
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Taiwan
ECCN code	EAR99
YTEOL	2
Actuator length	0.08 inch
Actuator type	PIANO
Other features	W/O TAPE SEAL, TOP SIDE "OFF"
body width	9.6774 mm
body height	9.6774 mm
Body length or diameter	16.6878 mm
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact function	ON-OFF
Contact resistance	0.1 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VDC V
Electrical life	3000 Cycle(s)
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switching segments	6
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	12
seal	EPOXY
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Switch type	PIANO DIP SWITCH
Terminal length	0.118 inch
Termination type	SOLDER

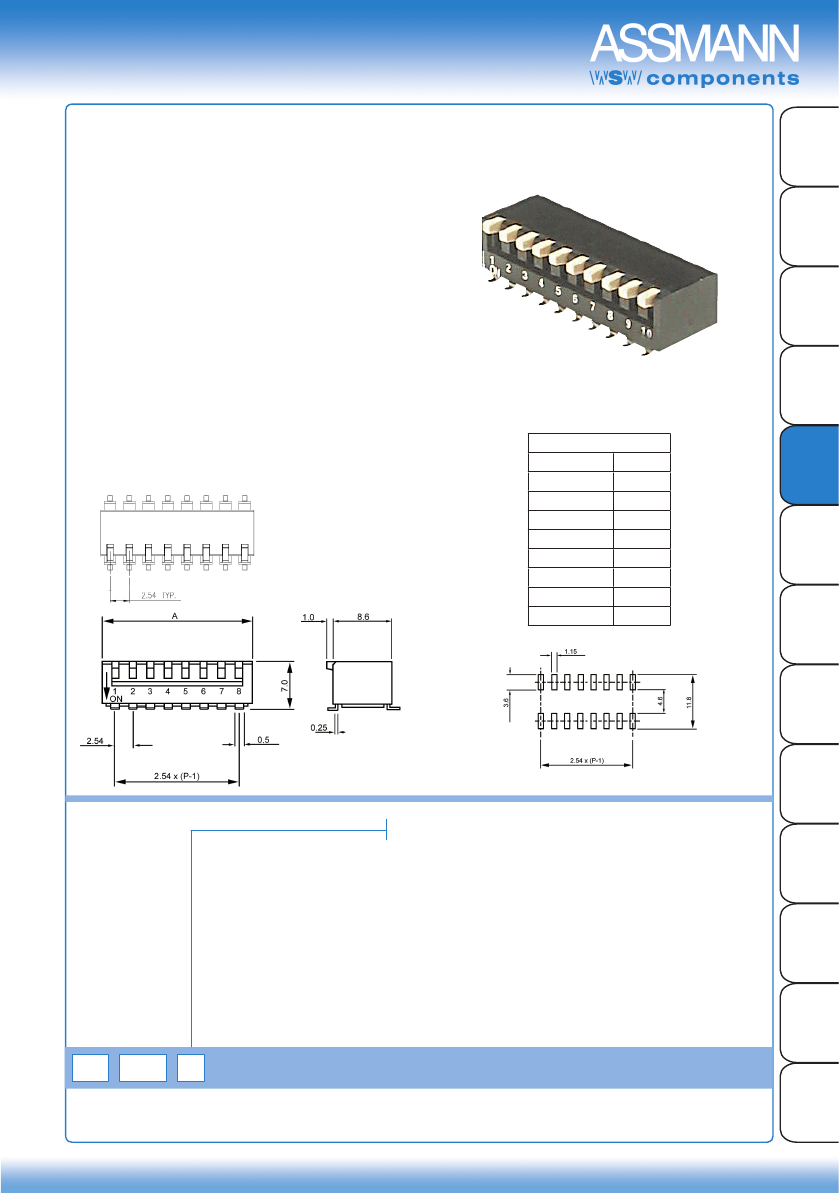

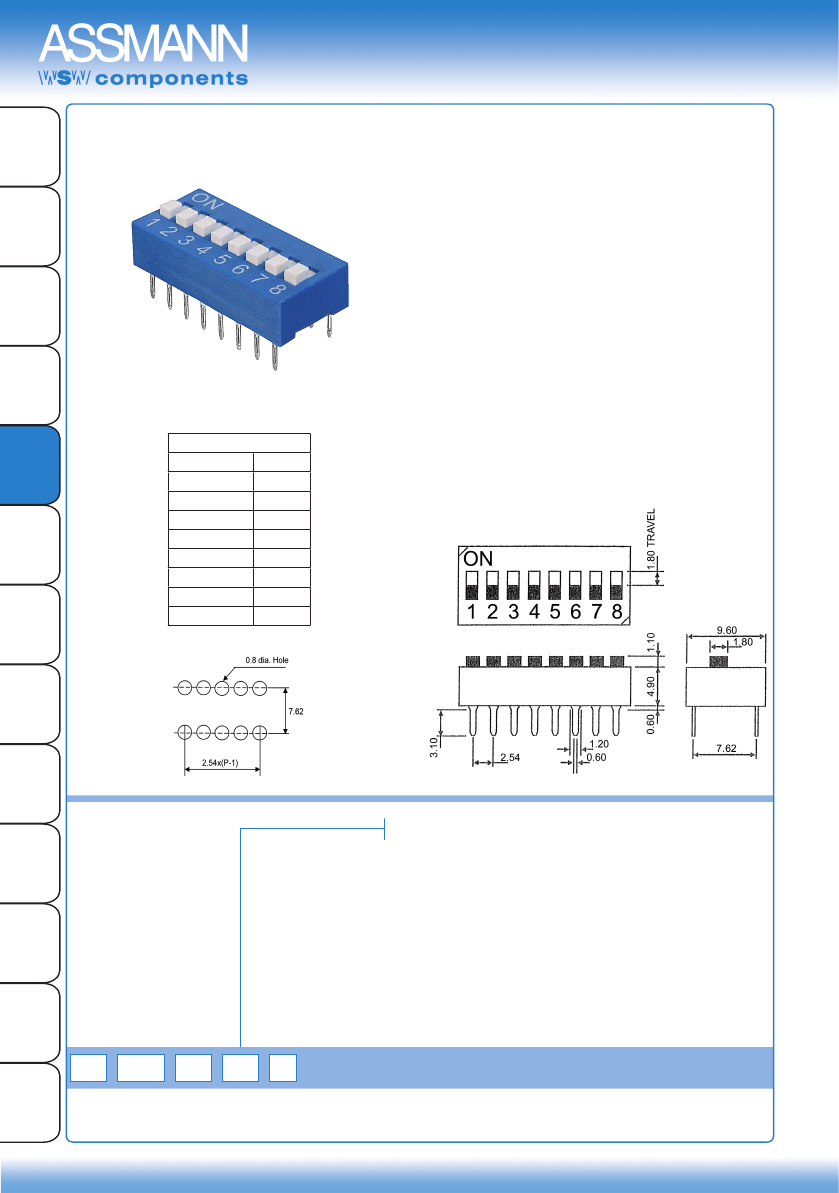

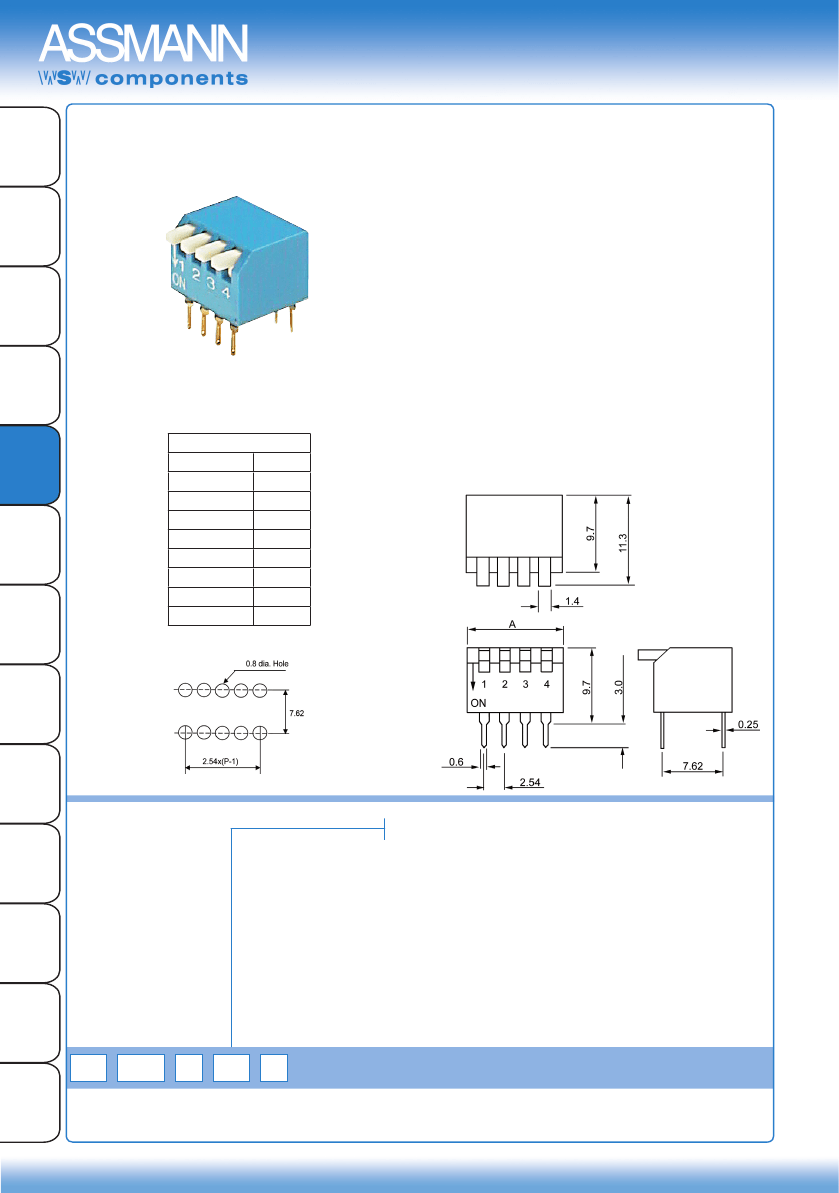

Preview

Download Datasheet

View All

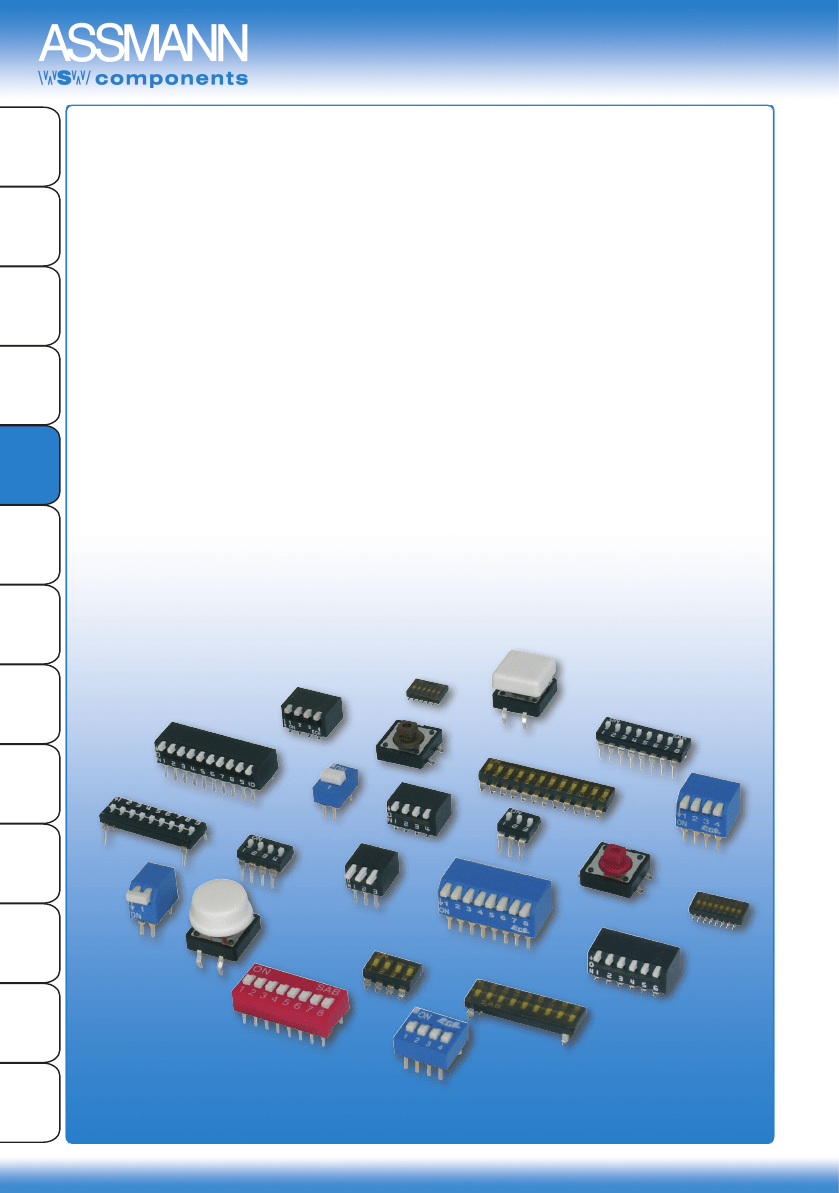

Schalter

Switches

ASSMANN WSW components bietet ein reichhaltiges

Sortiment an Standard-Schaltern in der Piano- und

IC-Bauform an. Schalter stellen eine kleine Baugrup-

pe dar, die es erlaubt eine elektrisch leitende Verbin-

dung herzustellen oder zu trennen. Gängig sind hierbei

die THT- und SMD -Ausführungen im Raster 2,54mm.

Polzahlen liegen zwischen 02 und 12 polig. Der Minia-

turisierung wird durch eine Serie von SMD -Schaltern

im Raster 1,27mm Rechung getragen. SMD Schalter

werden in der automatenverarbeitbaren Tape und Reel

– Verpackung angeboten.

ASSMANN WSW components bietet weiter die Mög-

lichkeit Sonderausführungen in Farbe und Bestückung

zu beziehen.

ASSMANN WSW components offers a full range of

standard switches based on the `Piano´ and `IC´ sty-

le. Switches work like a small module , which allows

the user to make or cut an electrical connection. Com-

monly used are THT- and SMD-contact styles based

on 2.54mm pitch. Available number of contacts are

between 02 and 12 contacts. The trend of miniaturiza-

tion has been followed by a new series of SMD swit-

ches based on 1.27mm pitch. These SMT switches are

available in tape and reel packaging for automatic pick

and place.

Furthermore, ASSMANN WSW components offers

special designs in colour and contact loading.

D-Sub /

D-Sub cover /

Centronics

Multiflex -

DIN 41651

Modular

with solderpins

USB

IEEE 1394

148

Switches

Powerinlets

with solderpins

Poweroutlets

DIN 41612

DIN 41617

Hard Metric

MiniDIN

Pin header

Terminal Blocks Memory Card

accessories

Female header

connectors

Sockets / Jumper

FFC / FPC

Micro -

Miniature
