RR0306P-2261-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RR0306P-2261-D

RR0306P-2261-D: DescriptionFixed Resistor, Metal Film, 0.05W, 2260ohm, 15V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0201, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size170KB，1 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

RR0306P-2261-D Overview

Fixed Resistor, Metal Film, 0.05W, 2260ohm, 15V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0201, CHIP, ROHS COMPLIANT

RR0306P-2261-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1756210517
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Japan
ECCN code	EAR99
YTEOL	3
Other features	HIGH-PRECISION
structure	Rectangular
JESD-609 code	e3
Manufacturer's serial number	RR
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.23 mm
Package length	0.6 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.3 mm
method of packing	TR
Rated power dissipation(P)	0.05 W
resistance	2260 Ω
Resistor type	FIXED RESISTOR
series	RR
size code	0201
surface mount	YES
technology	METAL FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	15 V

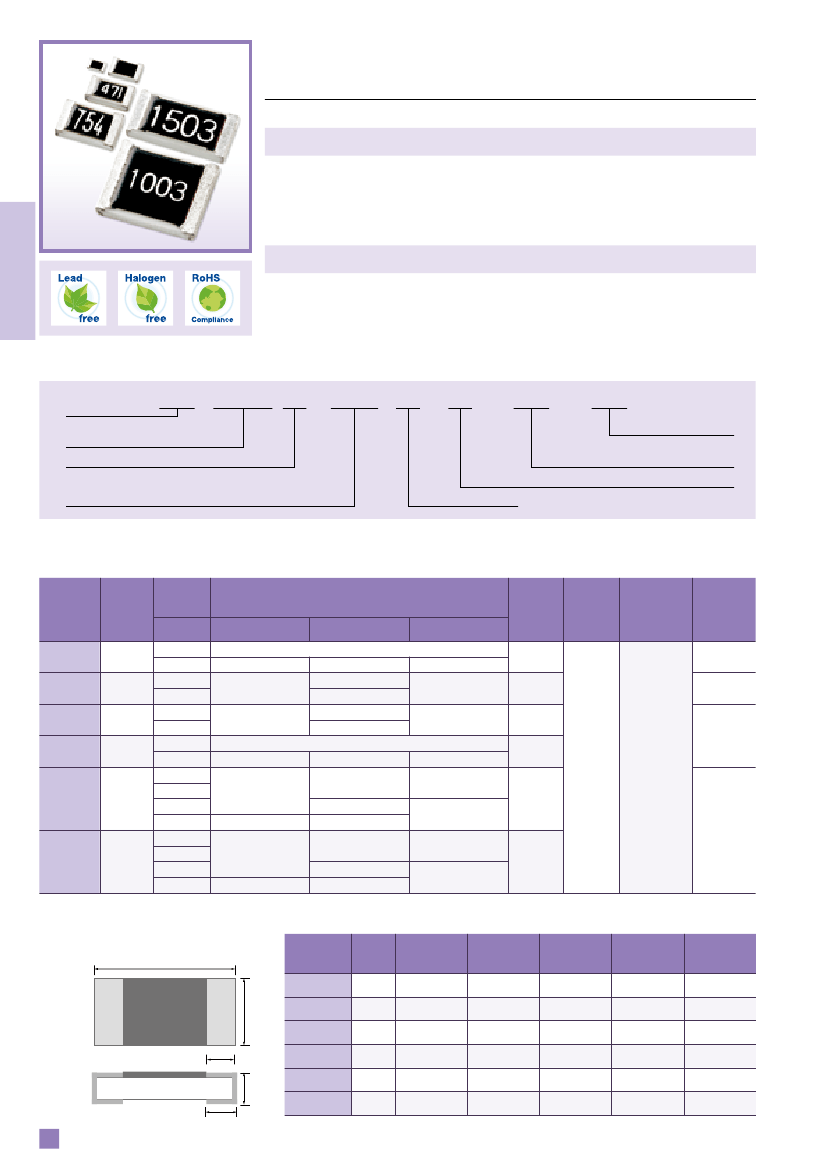

RR0306P-2261-D Preview

Metal thin film chip resistors

(precision)

■RR

series

Features

・

Precision chip resistors excellent in resistance tolerance, TCR, frequency

performance, noise characteristics, and linearity.

Thin film surface mount resistors

Applications

・

Consumer electronics that requires precision resistors

・

All purpose resistors in any area of electronics

RR series

◆Part

numbering system

Series code

RR 0816 P - 102 - D -（M）-（T5）-（***）

only given to 3 digit coders

for RR0816 E-96 series

Taping quantity: RR1632, RR2632 5000pcs:T5

RR0306, RR0510, RR0816, RR1220: nocode is given

Letter M is added for RR1220 E-96 series 4digit codes

Resistance tolerance

Size: RR0306, RR0510, RR0816,

RR1220, RR1632, RR2632,

Temperature coefficient of resistance

Nominal

RR0306, RR0510, RR0816, RR1220 E-24: 3 digit,

Resistance RR0306, RR0510, RR0816, RR1220 E-96: 4 digit,

value

RR1632, RR2632: 4 digit

◆Electrical

Specification

Type

Power

ratings

1/20W

1/16W

1/10W

Temperature

coefficient

of resistance

Resistance range(Ω) Resistance tolerance

±0.1% (B)

ー

(ppm/℃)

±25

（P）

±100

（R）

±25

（P）

±100

（R）

±25

（P）

±50

（Q）

±25

（P）

±50

（Q）

±5

（V）

±10

（N）

±25

（P）

±50

（Q）

±5

（V）

±10

（N）

±25

（P）

±50

（Q）

Maximum Resistance

voltage value series

Operating

temperature

Packaging

quantity

±0.5% (D)

30≦R≦22k

ー

100≦R≦100k

10≦R≦91

100≦R≦360k

10≦R≦91

100≦R≦1M

10≦R≦91

ー

51≦R≦1M

±1% (F)

10≦R≦30

ー

15V

25V

75V

5,000pcs

ー

150V

ー

200V

ー

100V

E-24, E-96

-55℃ ~ 125℃

5,000pcs

10,000pcs

RR0306

RR0510

RR0816

RR1220

ー

100≦R≦200k

ー

100≦R≦200k

ー

RR1632

1/8W

10≦R≦47

ー

51≦R≦1M

10≦R≦47

RR2632

1/4W

◆Dimensions

Type

RR0306

(inch)

0201

0402

0603

0805

1206

1210

Size

0.60±0.05

1.00±0.05

1.60±0.20

2.０0±0.20

3.20±0.20

0.30±0.05

0.50±0.05

0.80±0.20

1.25±0.20

1.60±0.20

2.60±0.20

0.12±0.05

0.20±0.10

0.30±0.20

0.40±0.20

0.50±0.20

0.12±0.05

0.25±0.05

0.30±0.20

0.40±0.20

0.45±0.20

0.23±0.03

0.35±0.05

0.40±0.10

（unit：mm）

RR0510

RR0816

RR1220

RR1632

RR2632

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
