148-90026: Descriptionhelacon plus clear 300bg; CategoryThe connector; File Size58KB，2 Pages; ManufacturerHellermannTyton; Environmental Compliance

Download Datasheet Parametric View All

148-90026 Overview

helacon plus clear 300bg

148-90026 Parametric

Parameter Name	Attribute value
Datasheets
148-90026 Datashee
Product Photos
148-90026
Standard Package	1
Category	Connectors, Interconnects
Family	Terminals - Wire Splice Connectors
Packaging	Bulk
Terminal Type	Inline, T
Number of Wire Entries	4
Terminati	IDC
Wire Gauge	12-22 AWG
Insulati	Fully Insulated
Features	-
Col	Transparent - Cle
Other Names	89306326908

Preview

Download Datasheet

View All

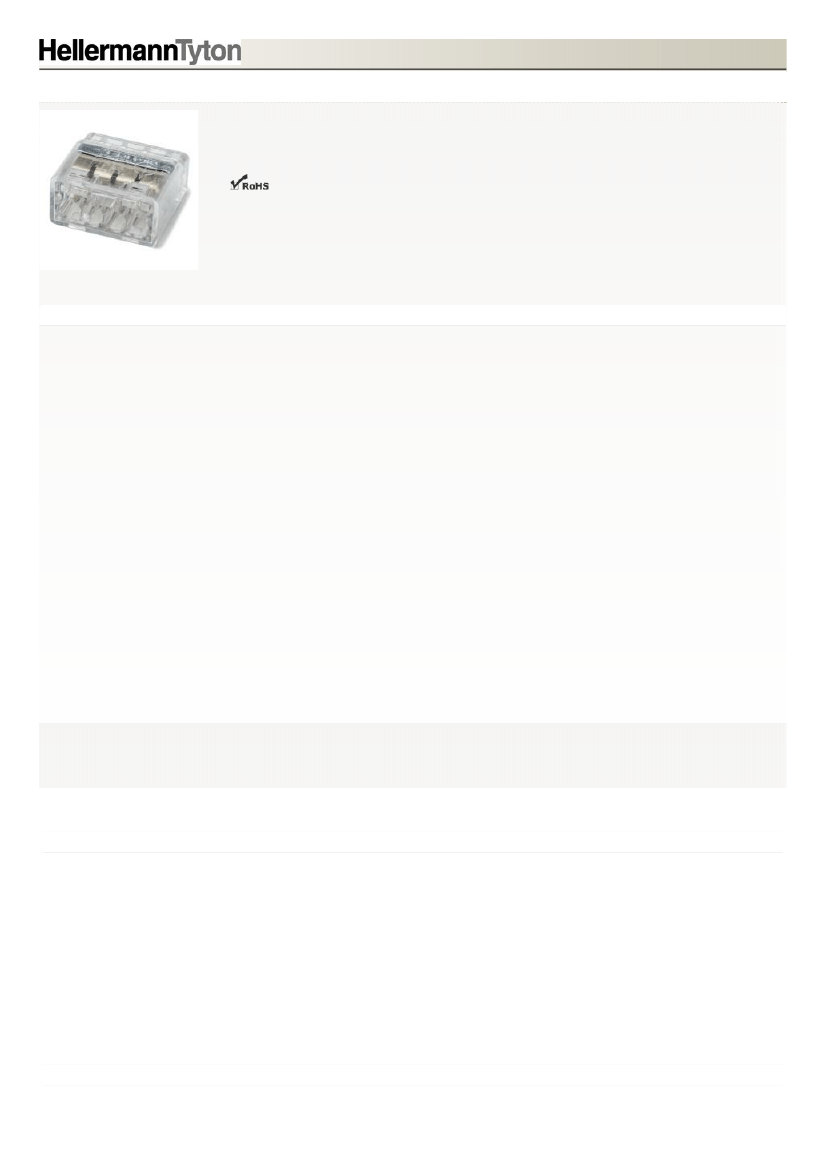

148-90026

Article Number: 148-90026

HelaCon Plus Push-In Style Wire Connector, Double Spring, 4-Port, Polycarbonate, Clear, 300/pkg

Base Data

Local Order Number

148-90026

Type

HECP-4

Color

Transparent (CL)

Features and Benefits

Double Spring Technology requires low insertion force yet provides high retention values for safe, secure and reliable

connections.

Unique double spring design accommodates both solid and stranded wire cores for greater versatility and can

accommodate solid and stranded wires within same housing.

Low insertion forces reduces buckling of stranded wire Separate test port for fast, easy confirmation of connection

Quick fit insertion relieves installer in difficult spots like overhead installations, eliminates twisting motion and

reduces overall assembly and connection time.

Product Description

Helacon Plus is a unique push-in wire connector with double spring technology. Double spring design requires less

insertion force and delivers superior retention values. Helps alleviate repetitive motion injuries often associated with

twist-on style connectors.

Max Current

24 A

Max Voltage

450 V

Number of Conductors

Stripping Length

11 mm

Suitable for flexible core (Yes/No)

Suitable for multi wire core (Yes/No)

Yes

Suitable for solid core (Yes/No)

Yes

Short Description

HelaCon Plus Push-In Style Wire Connector, Double Spring, 4-Port, Polycarbonate, Clear, 300/pkg

Wire Range (cULus)

12 - 22 AWG solid and stranded copper wire

Wire Range (VDE)

0.5 to 2.5mm² solid/stranded (max 7 cores)

Product Dimensions

Length L (imperial)

0.41 "

Length L (metric)

10.45 mm

Width W (imperial)

0.79 "

Width W (metric)

20.05 mm

Height H (imperial)

0.41 "

Height H (metric)

10.45 mm

Depth D (imperial)

0.75 "

Depth D (metric)

19.0 mm

Logistics and Packaging

Quantity per

bag

Package Quantity (imperial)

300

Recommended Resources
