DS-808-4TNC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DS-808-4TNC

DS-808-4TNC: Description20MHz - 2000MHz RF/MICROWAVE SPLITTER, 3dB INSERTION LOSS, C-18; CategoryWireless rf/communication Radio frequency and microwave; File Size135KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

DS-808-4TNC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS-808-4TNC	-	-	View	Buy Now

DS-808-4TNC Overview

20MHz - 2000MHz RF/MICROWAVE SPLITTER, 3dB INSERTION LOSS, C-18

DS-808-4TNC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	TNC, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
Maximum insertion loss	3 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

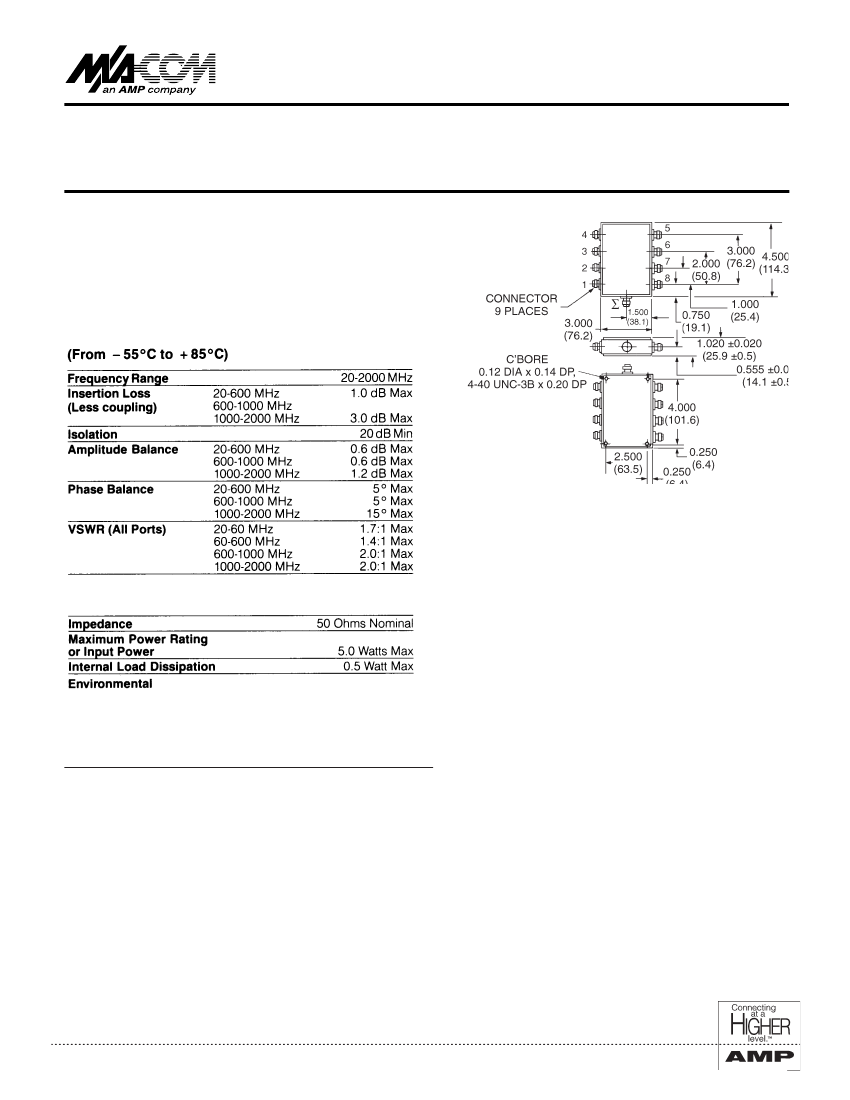

Broadband Eight-Way Power Divider

20 - 2000 MHz

Features

DS-808-4

V2.00

C-18

Two-Decade Frequency Range

High Isolation – 20 dB Min

Typical Midband VSWR 1.2:1

Guaranteed Speciﬁcations*

1.4 dB Max

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .xxx = ±0.015 (.x = ±0.4)

Weight (Approx): 9 Ounces 255 Grams

Operating Characteristics

MIL-STD-883 screening available.

*All speciﬁcations apply with 50 ohm source and load impedance.

This product contains elements protected by United States Patent Number

3,325,587.

Ordering Information

Model No.

DS-808-4 BNC

DS-808-4 SMA

DS-808-4 TNC

DS-808-4 N

Package

Connectorized

M/A-COM Division of AMP Incorporated

North America: Tel. (800) 366-2266, Fax (800) 618-8883

Asia/Paciﬁc: Tel. +85 2 2111 8088, Fax +85 2 2111 8087

Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020

6-42

www.macom.com

AMP and Connecting at a Higher Level are trademarks.

Speciﬁcations subject to change without notice.

6-42

DS-808-4TNC Related Products

	DS-808-4TNC	DS-808-4	DS-808-4SMA	DS-808-4N	DS-808-4BNC
Description	20MHz - 2000MHz RF/MICROWAVE SPLITTER, 3dB INSERTION LOSS, C-18	20MHz - 2000MHz RF/MICROWAVE SPLITTER, 3dB INSERTION LOSS	20MHz - 2000MHz RF/MICROWAVE SPLITTER, 3dB INSERTION LOSS, C-18	20MHz - 2000MHz RF/MICROWAVE SPLITTER, 3dB INSERTION LOSS, C-18	20MHz - 2000MHz RF/MICROWAVE SPLITTER, 3dB INSERTION LOSS, C-18
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Maximum input power (CW)	36.99 dBm	36.99 dBm	36.99 dBm	36.99 dBm	36.99 dBm
Maximum insertion loss	3 dB	3 dB	3 dB	3 dB	3 dB
Maximum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	2	2	2	2	2
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Other features	TNC, ISOLATION-MIN (DB):20	-	SMA, ISOLATION-MIN (DB):20	N, ISOLATION-MIN (DB):20	BNC, ISOLATION-MIN (DB):20
structure	COAXIAL	-	COAXIAL	COAXIAL	COAXIAL
