CH-130-4: Description30 dB Bi-directional Coupler, 500 Watt 2 - 32 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size101KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

CH-130-4 Overview

30 dB Bi-directional Coupler, 500 Watt 2 - 32 MHz

CH-130-4 Parametric

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	compli

Preview

Download Datasheet

View All

30 dB Bi-directional Coupler, 500 Watt

2 - 32 MHz

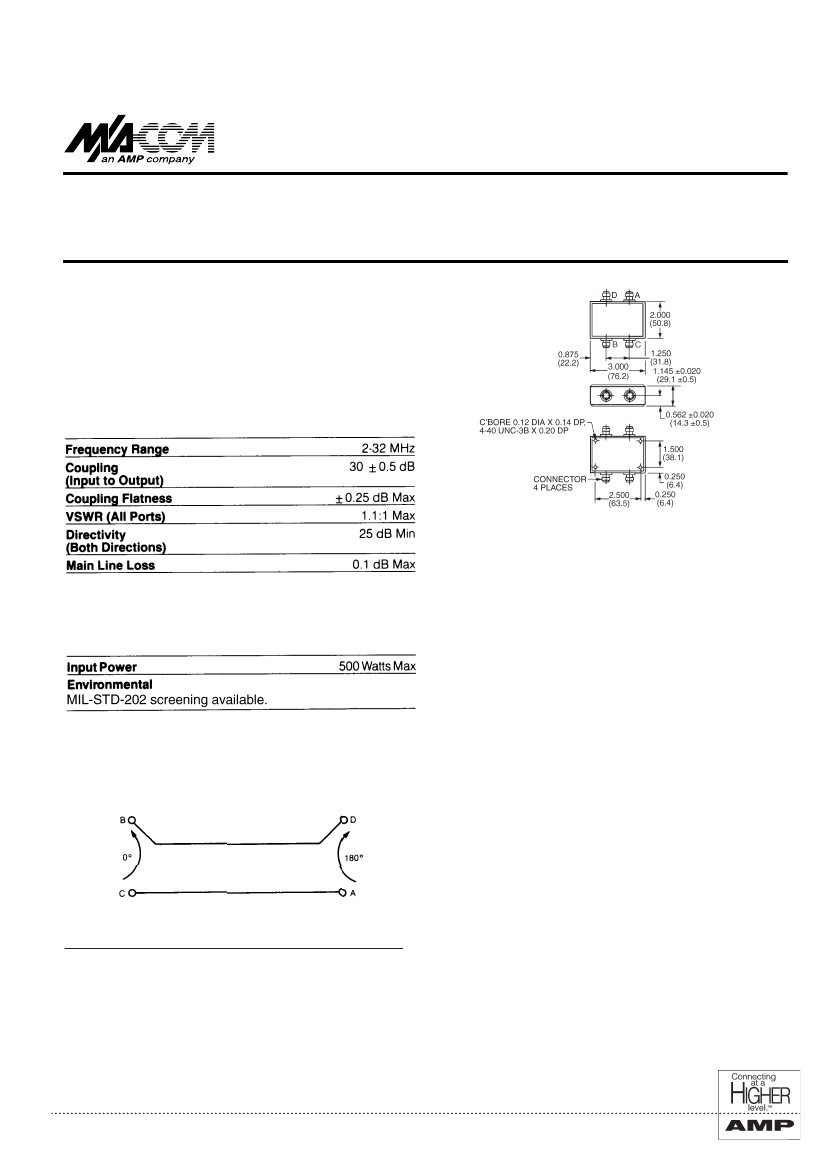

Features

q

CH-130-4

V2.00

C-12

High Power Handling Capability – 500 Watts

Very Low Insertion Loss – 0.1 dB Max

Low VSWR – 1.1:1 Max

Guaranteed Speciﬁcations*

(-55°C to +85°C)

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .xxx = ±0.015

(.x = ±0.4)

WEIGHT (APPROX): 10 OUNCES 283 GRAMS

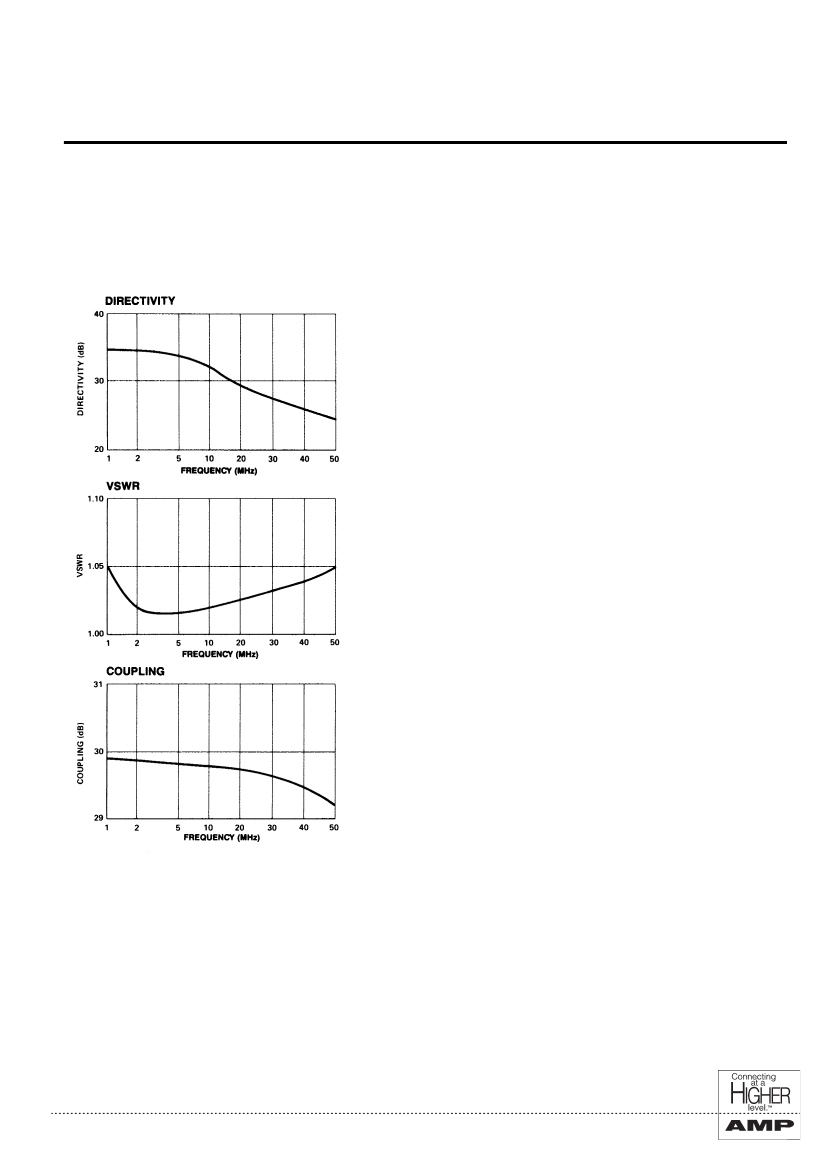

Operating Characteristics

* All speciﬁcations apply with 50 ohm source and load impedance.

This product contains elements protected by United States Patent

Number 3,426,298.

Functional Diagram

Ordering Information

Part Number

CD-130-4 N

CD-130-4 TNC

CD-130-4 BNC

CD-130-4 SMA

Package

Connectorized

M/A-COM Division of AMP Incorporated

s

North America: Tel. (800) 366-2266, Fax (800) 618-8883

s

Asia/Paciﬁc: Tel. +85 2 2111 8088, Fax +85 2 2111 8087

s

Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020

www.macom.com

AMP and Connecting at a Higher Level are trademarks.

Speciﬁcations subject to change without notice.

5-18
