CPFBZ-A2C5-32.768D6 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CPFBZ-A2C5-32.768D6

CPFBZ-A2C5-32.768D6: DescriptionCRYSTAL 32.768KHZ 6PF SMD; CategoryPassive components Crystal/resonator; File Size667KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric Compare View All

CPFBZ-A2C5-32.768D6 Overview

CRYSTAL 32.768KHZ 6PF SMD

CPFBZ-A2C5-32.768D6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8362991256
Reach Compliance Code	compliant
YTEOL	.4
Other features	BT-CUT
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.0126%
frequency tolerance	20 ppm
JESD-609 code	e3
load capacitance	6 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	8.7mm x 3.7mm x 2.5mm
Series resistance	50000 Ω
surface mount	YES
Terminal surface	MATTE TIN

Preview

Download Datasheet

View All

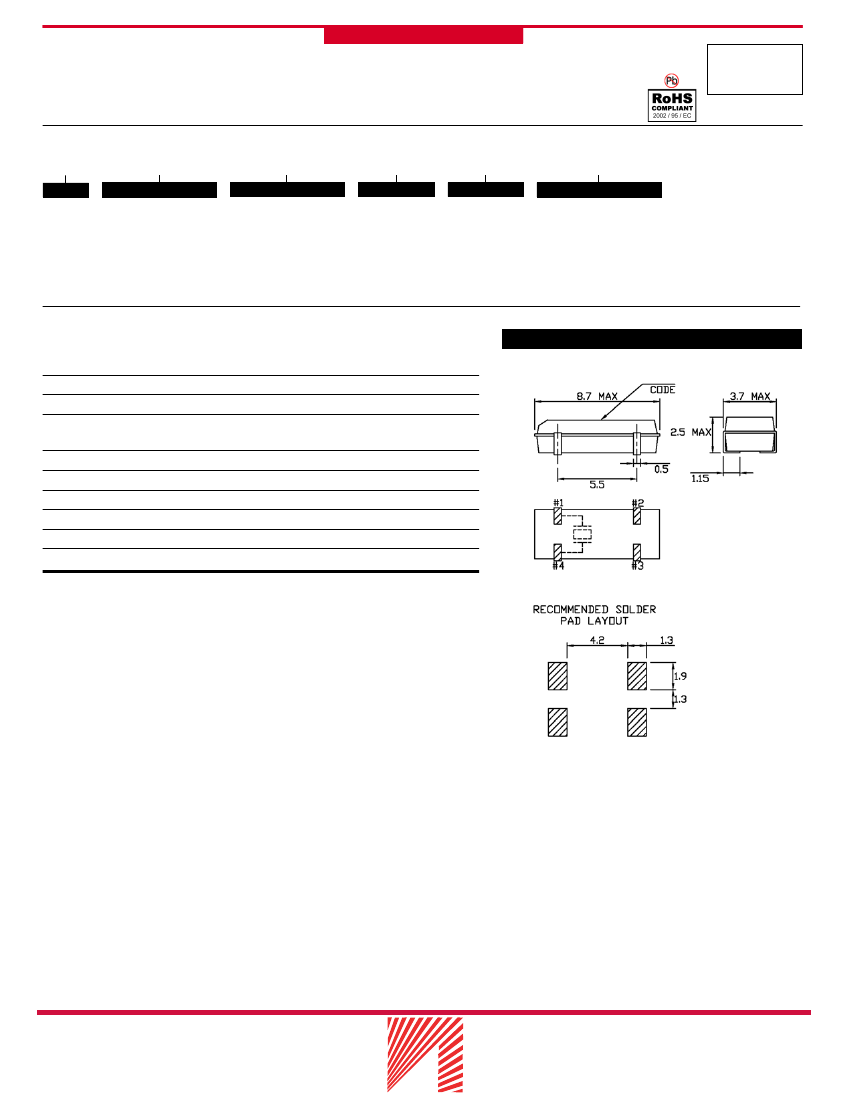

Cardinal’s CPF crystals offer real time frequency control in

a sturdy thermoplastic encasement with a 2.5 mm height.

Plastic Tuning Fork Crystals

CARDINAL COMPONENTS

Series CPFB

Part Numbering Example: CPFB Z - A1 C5 - 32.768K D12.5

CPFB

SERIES

CPFB

ADDED FEATURES

BLANK = BULK PACK

Z = TAPE AND REEL

A2 = -40°C ~

OPERATING TEMP.

A2*

TOLERANCE

C5 = ± 20

FREQUENCY

D12.5

32.768

+85°C

LOAD CAP.

= 6.0 pF

= 12.5 pF

D12.5

*NOTE:

The above ABC combinations cover basic specification options. We tailor our crystal specifications

to meet customer requirements. Please contact our sales department if you don’t see exactly what you need.

Specifications:

Frequency Range:

32.768 KHz

Operating Temperature:

-40°C ~ +85°C

Frequency Tolerance:

(at 25°C)

Load Capacitance:

Shunt Capacitance:

Resistance:

Drive Level:

Aging:

Packaging:

± 20 ppm

12.5 pF

1.35 pF

CPFB

Standard

BT-CUT

Temperature Coefficient:

-(0.035 ± 0.008) ppm/°C

Typical

50,000Ω Max

1.0 µW Max

± 3.0 ppm per year

Tape and Reel (3K per Reel)

1801 Broadway St

Charlottesville, VA 22902 , USA

Cardinal Components, Inc.

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com

CPFBZ-A2C5-32.768D6 Related Products

	CPFBZ-A2C5-32.768D6	CPFBZ-A2C4-32.768KD6	CPFBZ-A2C5-32.768KD6	CPFBZ-A2C4-32.768KD12.5	CPFBZ-A2C5-32.768KD12.5	CPFB-A2C5-32.768KD6	CPFB-A2C5-32.768KD12.5
Description	CRYSTAL 32.768KHZ 6PF SMD	crystal 32.768khz 6pf smd	crystal 32.768khz 6pf smd	crystal 32.768khz 12.5pf smd	crystal 32.768khz 12.5pf smd	Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, PLASTIC PACKAGE-4	Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, PLASTIC PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compli	-	compliant	compliant	compliant
Other features	BT-CUT	-	BT-CUT	-	BT-CUT	BT-CUT	BT-CUT
Ageing	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	-	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	-	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	1 µW	1 µW	1 µW	-	1 µW	1 µW	1 µW
frequency stability	0.0126%	0.0126%	0.0126%	-	0.0126%	0.0126%	0.0126%
frequency tolerance	20 ppm	10 ppm	20 ppm	-	20 ppm	20 ppm	20 ppm
JESD-609 code	e3	e3	e3	-	e3	e3	e3
load capacitance	6 pF	6 pF	6 pF	-	12.5 pF	6 pF	12.5 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz	0.032768 MHz	0.032768 MHz	-	0.032768 MHz	0.032768 MHz	0.032768 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C
physical size	8.7mm x 3.7mm x 2.5mm	L8.7XB3.7XH2.5 (mm)/L0.343XB0.146XH0.098 (inch)	8.7mm x 3.7mm x 2.5mm	-	8.7mm x 3.7mm x 2.5mm	8.7mm x 3.7mm x 2.5mm	8.7mm x 3.7mm x 2.5mm
Series resistance	50000 Ω	50000 Ω	50000 Ω	-	50000 Ω	50000 Ω	50000 Ω
surface mount	YES	YES	YES	-	YES	YES	YES
Terminal surface	MATTE TIN	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrie	-	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
package instruction	-	PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4	-	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4
Base Number Matches	-	1	1	-	1	1	1
Is it lead-free?	-	-	Lead free	-	Lead free	Lead free	Lead free
