DF01S-E3/45 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DF01S-E3/45

DF01S-E3/45: Descriptiondiode gpp 1A 100v 4smd; CategoryDiscrete semiconductor diode; File Size86KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DF01S-E3/45 Overview

diode gpp 1A 100v 4smd

DF01S-E3/45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
package instruction	R-PDSO-G4
Contacts	4
Manufacturer packaging code	CASE DFS
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	250
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

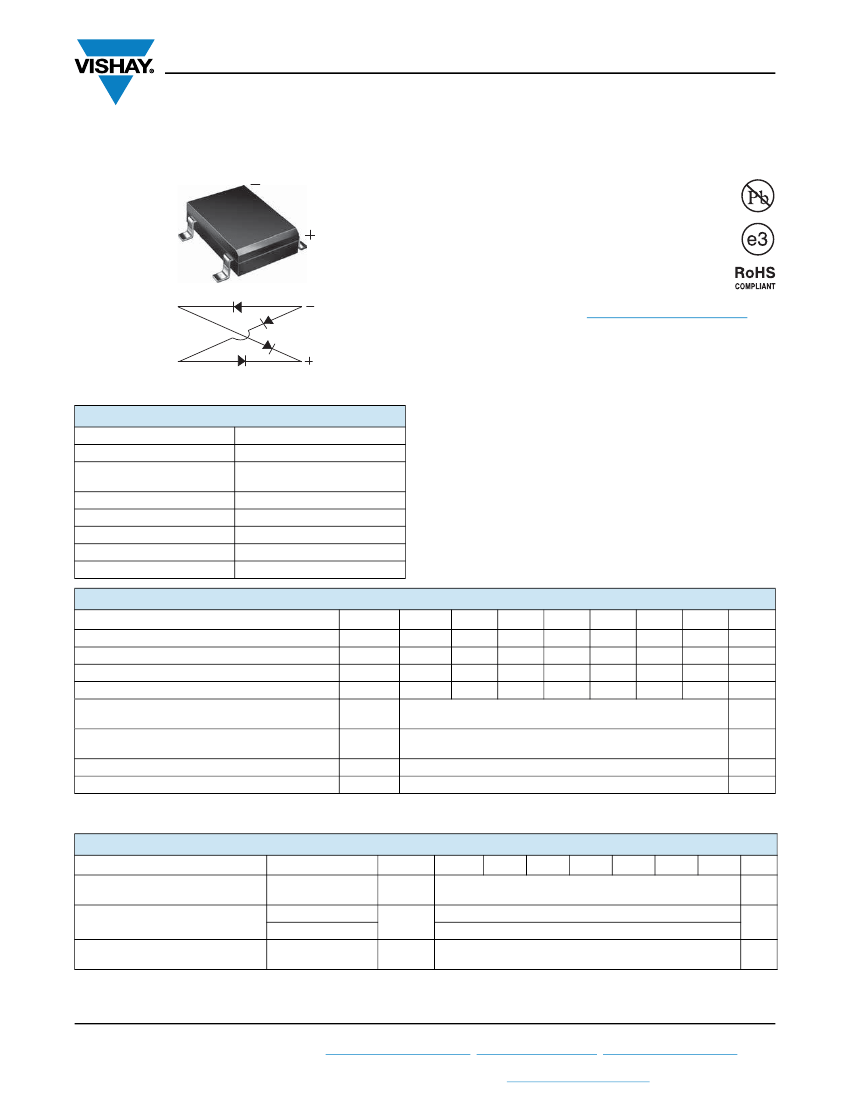

DF005S, DF01S, DF02S, DF04S, DF06S, DF08S, DF10S

www.vishay.com

Vishay General Semiconductor

Miniature Glass Passivated Single-Phase

Surface Mount Bridge Rectifiers

FEATURES

• UL recognition, file number E54214

• Ideal for automated placement

• High surge current capability

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 260 °C

• Material categorization: For definitions of

compliance please see

www.vishay.com/doc?99912

TYPICAL APPLICATIONS

Case Style DFS

General purpose use in AC/DC bridge full wave rectification

for SMPS, lighting ballaster, adapter, battery charger, home

appliances, office equipment, and telecommunication

applications.

DFS

PRIMARY CHARACTERISTICS

Package

F(AV)

RRM

FSM

at I

= 1.0 A

max.

Diode variations

MECHANICAL DATA

Case:

DFS

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD22-B102

E3 suffix meets JESD 201 class 1A whisker test

Polarity:

As marked on body

per

50 V, 100 V, 200 V, 400 V, 600 V,

800 V, 1000 V

50 A

5 μA

1.1 V

150 °C

Quad

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward output rectified current

at T

= 40 °C

(1)

Peak forward surge current single half

sine-wave

superimposed on rated load

Rating for fusing (t < 8.3 ms)

Operating junction and storage temperature range

RRM

RMS

F(AV)

FSM

, T

STG

SYMBOL

DF005S

DF01S

100

DF02S

200

140

200

DF04S

400

280

400

1.0

- 55 to + 150

DF06S

600

420

600

DF08S

800

560

800

DF10S

1000

700

1000

°C

UNIT

Note

(1)

Units mounted on PCB with 0.51" x 0.51" (13 mm x 13 mm) copper pads

ELECTRICAL CHARACTERISTICS

= 25 °C unless otherwise noted)

PARAMETER

Maximum instantaneous forward

voltage drop per diode

Maximum DC reverse current at

rated DC blocking voltage per diode

Typical junction capacitance per

diode

(1)

Note

(1)

Measured at 1.0 MHz and applied reverse voltage of 4.0 V

TEST CONDITIONS SYMBOL DF005S DF01S DF02S DF04S DF06S DF08S DF10S UNIT

1.0 A

= 25 °C

= 125 °C

1.1

5.0

500

μA

Revision: 19-Aug-13

Document Number: 88573

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

DF01S-E3/45 Related Products

	DF01S-E3/45	DF02S-E3/77	DF06S-E3/45	DF04S-E3/45	DF005S-E3/77	DF08S-E3/45	DF005S/27
Description	diode gpp 1A 100v 4smd	rectifier bridge 1amp 200v dfs	rectifier bridge 1amp 600v dfs	rectifier bridge 1amp 400v dfs	diode gpp 1A 50v 4smd	diode gpp 1A 800v 4smd	rectifier bridge 1A 50v 4smd
Reach Compliance Code	unknown	unknow	unknown	unknown	unknow	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Maximum repetitive peak reverse voltage	100 V	200 V	600 V	400 V	50 V	800 V	50 V
surface mount	YES	YES	YES	YES	YES	YES	YES
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
package instruction	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	-
Contacts	4	4	4	4	4	4	-
Manufacturer packaging code	CASE DFS	CASE DFS	CASE DFS	CASE DFS	CASE DFS	CASE DFS	-
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	-
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	-
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	-
JESD-609 code	e3	e3	e3	e3	e3	e3	-
Humidity sensitivity level	1	1	1	1	1	1	-
Phase	1	1	1	1	1	1	-
Number of terminals	4	4	4	4	4	4	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	40	40	40	40	40	40	-
Base Number Matches	1	1	1	1	-	1	-
