DFL15005S, DFL1501S, DFL1502S, DFL1504S, DFL1506S, DFL1508S, DFL1510S
www.vishay.com
Vishay General Semiconductor
Low Profile Miniature Glass Passivated Single-Phase
Surface Mount Bridge Rectifiers
FEATURES
-
+
~
~
-
• Low profile: typical height of 2.5 mm
• UL recognition, file number E54214
• Ideal for automated placement
• High surge current capability
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 260 °C
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
~
~
+
Case Style Low Profile DFS
TYPICAL APPLICATIONS
General purpose use in AC/DC bridge full wave rectification
for SMPS, lighting ballaster, adapter, battery charger, home
appliances, office equipment, and telecommunication
applications.
1.5 A
PRIMARY CHARACTERISTICS
Package
I
F(AV)
V
RRM
I
FSM
I
R
V
F
at I
F
= 1.5 A
T
J
max.
Diode variations
Low profile DFS
MECHANICAL DATA
Case:
Low profile DFS
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity:
As marked on body
per
50 V, 100 V, 200 V, 400 V, 600 V,
800 V, 1000 V
50 A
5 μA
1.1 V
150 °C
Quad
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak
reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward output
rectified current at T
A
= 40 °C
Peak forward surge current single
half sine-wave superimposed on
rated load
Rating for fusing (t < 8.3 ms)
Operating junction and storage
temperature range
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV) (1)
I
FSM
I
2
t
T
J
, T
STG
DFL
15005S
50
35
50
DFL
1501S
100
70
100
DFL
1502S
200
140
200
DFL
1504S
400
280
400
1.5
DFL
1506S
600
420
600
DFL
1508S
800
560
800
DFL
1510S
1000
700
1000
UNIT
V
V
V
A
50
10
- 55 to + 150
A
A
2
s
°C
Note
(1)
Units mounted on PCB with 0.51" x 0.51" (13 mm x 13 mm) copper pads
Revision: 19-Aug-13
Document Number: 88874
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DFL15005S, DFL1501S, DFL1502S, DFL1504S, DFL1506S, DFL1508S, DFL1510S
www.vishay.com
Vishay General Semiconductor
DFL
15005S
DFL
1501S
DFL
1502S
DFL
1504S
1.1
5.0
I
R
μA
500
C
J (1)
16
pF
DFL
1506S
DFL
1508S
DFL
1510S
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Max. instantaneous forward
voltage drop per diode
Maximum DC reverse
current at rated DC blocking
voltage per diode
Typical junction
capacitance per diode
TEST
CONDITIONS
1.5 A
T
A
= 25 °C
T
A
= 125 °C
SYMBOL
V
F
UNIT
V
Note
(1)
Measured at 1.0 MHz and applied reverse voltage of 4.0 V
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JL
(1)
DFL
15005S
DFL
1501S
DFL
1502S
DFL
1504S
40
15
DFL
1506S
DFL
1508S
DFL
1510S
UNIT
°C/W
Note
(1)
Units mounted on PCB with 0.51" x 0.51" (13 mm x 13 mm) copper pads
ORDERING INFORMATION
(Example)
PREFERRED P/N
DFL1506S-E3/45
DFL1506S-E3/77
UNIT WEIGHT (g)
0.341
0.341
PREFERRED PACKAGE CODE
45
77
BASE QUANTITY
50
1500
DELIVERY MODE
Tube
13" diameter paper tape and reel
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
2.0
60
Peak Forward
Surge
Current (A)
Average Forward Current (A)
50 Hz
Resistive or
Inductive Load
1.5
T
J
= 150 °C
Single Sine-Wave
50
40
1.0
30
20
0.5
10
0
20
40
60
80
100
120
140
160
0
1
10
100
Ambient Temperature (°C)
Number of Cycles at 50 Hz
Fig. 1 - Forward Current Derating Curve Per Diode
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge
Current Per Diode
Revision: 19-Aug-13
Document Number: 88874
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DFL15005S, DFL1501S, DFL1502S, DFL1504S, DFL1506S, DFL1508S, DFL1510S
www.vishay.com
Vishay General Semiconductor

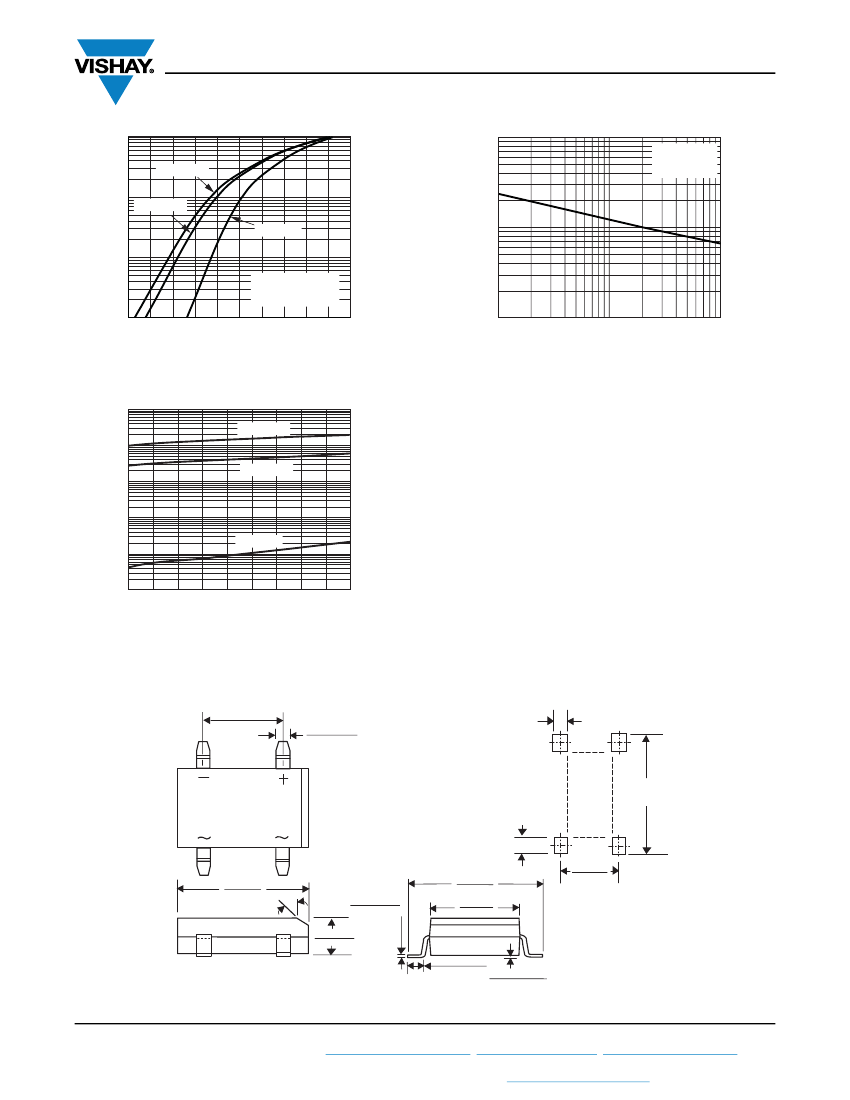

100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
10
Instantaneous Forward Current (A)
1
T
J
= 125 °C
T
J
= 25 °C
Junction Capacitance (pF)
T
J
= 150 °C
10
0.1
T
J
= 25 °C
Pulse Width = 300 μs
1 % Duty Cycle
0.01
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Forward Voltage Characteristics Per Diode
Fig. 5 - Typical Junction Capacitance Per Diode
1000
Instantaneous Reverse Leakage
Current (μA)
T
J
= 150 °C
100
T
J
= 125 °C
10
1
T
J
= 25 °C
0.1
0.01
10
20
30
40
50
60
70
80
90
100
Percent of Rated Peak Reverse Voltage (%)
Fig. 4 - Typical Reverse Characteristics Per Diode
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
Case Style Low Profile DFS
0.205 (5.2)
0.195 (5.0)
0.047 (1.20)
0.040 (1.02)
Mounting Pad Layout
0.047 Min.
(1.20 Min.)
0.404 Max.
(10.26 Max.)
0.060 Min.
(1.52 Min.)
0.335 (8.51)
0.320 (8.13)
45o
0.013 (0.330)
0.009 (0.241)
0.102 (2.60)
0.094 (2.40)
0.404 (10.3)
0.386 (9.80)
0.255 (6.5 )
0.245 (6.2 )
0.205 (5.2)
0.195 (5.0)
0.060 (1.524)
0.040 (1.016) 0.013 (0.330)
0.003 (0.076)
Revision: 19-Aug-13
Document Number: 88874
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
