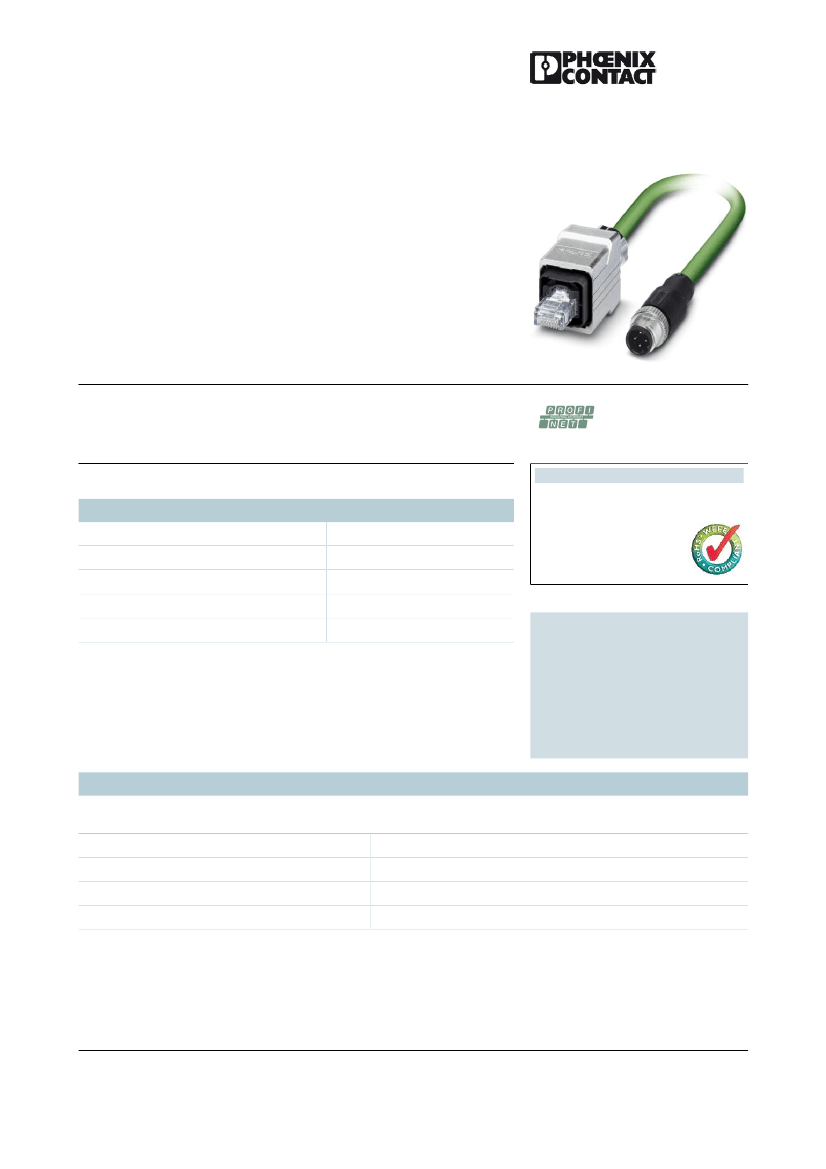

VS-P1207-P1210-C934/ 5,0
Order No.: 1608676
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1608676
Assembled PROFINET cable, type C, CAT5e, shielded, star quad,
AWG 22 highly stranded (7-wire), RAL 6018 (yellow-green), RJ45/IP67
push-pull metal housing on M12 connector, length: 5 m
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4046356161244
1 pcs.
85444290
0.22222 KG
Page 209 (PC-2007)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2008
Technical data
Mechanical characteristics
Number of positions
Shielded
Insertion/withdrawal cycles
Cable diameter
4
Yes
≥ 100
6.70 mm
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 5
Jul 6, 2009
VS-P1207-P1210-C934/ 5,0
Order No.: 1608676
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1608676
Cable structure
Duty cycle testing
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Length of cable
Ambient temperature (operation)
1x4xAWG22/7; SF-UTP
Flexible cable conduit capable
54 mm
54 mm
5m
-40 °C ... 70 °C (cable, fixed installation)
-5 °C ... 50 °C (cable, flexible installation)
(plug/socket)
Material data
Housing material
Outer sheath, material
External sheath, color
Degree of protection
Electrical characteristics
Rated voltage (III/3)
Transmission characteristics (category)
Line characteristics
Cable type
Cable structure
Conductor cross section
AWG signal line
Conductor structure, signal line
Core diameter including insulation
Thickness, insulation
External cable diameter
Wire colors
External sheath, color
Insulation resistance
Conductor resistance
Transmission characteristics (category)
Working capacitance
Wave impedance
Signal runtime
Coupling resistance
PROFINET
1x4xAWG22/19; SF/Q
0.34 mm²
22
19x 0.16 mm
Approx. 1.5 mm
Approx. 0.9 mm (Outer cable sheath)
6.50 mm
White, yellow, blue, orange
Green RAL 6018
Min. 0.5 GΩ*km
≤ 120 Ω/km
CAT5 (IEC 11801:2002), CAT5e (TIA 568B:2001)
52 pF
100 Ω ± 15 Ω (At 1- 100 MHz)
5.3 ns/m
Max. 20.00 mΩ/m
50 V
CAT5 (IEC 11801:2002), CAT5e (TIA 568B:2001)
TPU/Zinc die-cast
PUR
green-yellow RAL 6018
IP65/67
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 5
Jul 6, 2009
VS-P1207-P1210-C934/ 5,0
Order No.: 1608676
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1608676
Test voltage Core/Core
Test voltage Core/Shield
Type of pair shielding
Overall twist
Shielding
Outer sheath, material
Material conductor insulation
Conductor material
Cable weight
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Max. bending cycles
Bending radius
Traversing rate
Acceleration
Flame resistance
Freedom from halogen
Resistance to oil
Other resistance

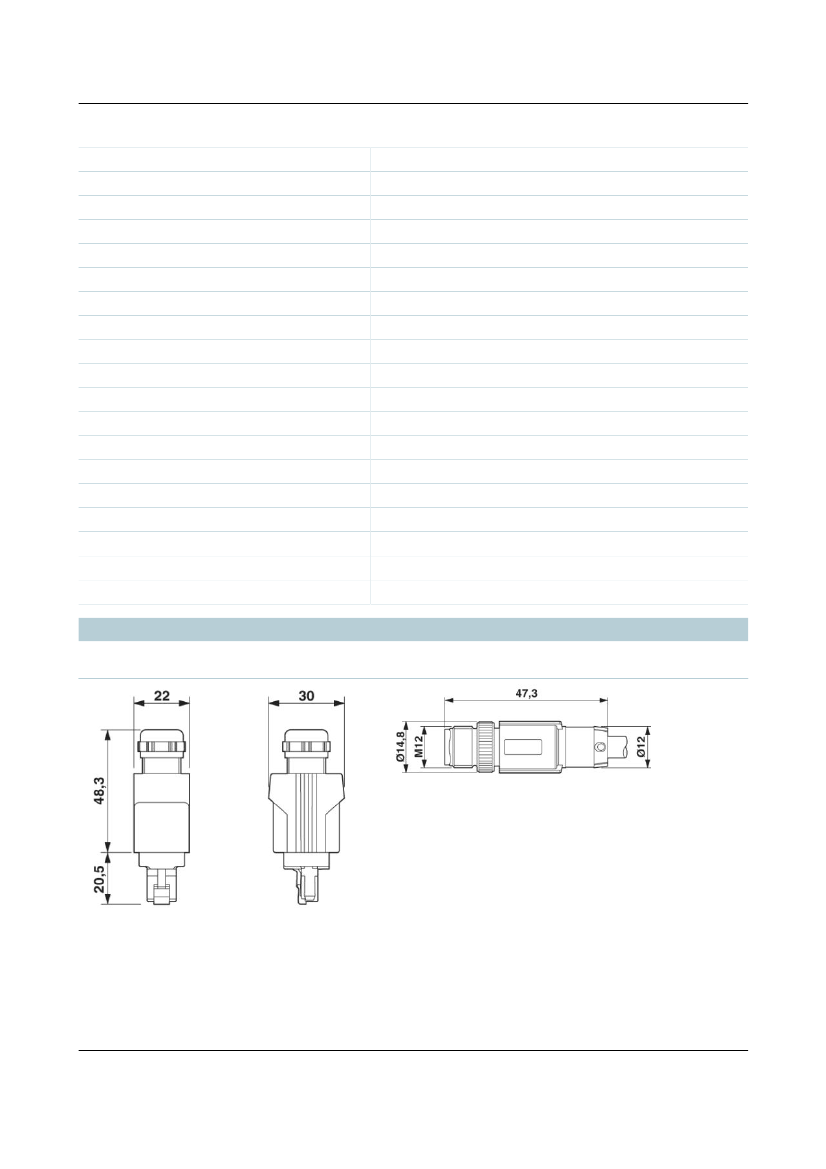

Drawings
Dimensioned drawing
2000 V
2000 V
Aluminum-lined polyester foil
Star quad
Braided shielding made of tin-plated copper wires
PUR
PE
Tin-plated Cu litz wires
61 kg/km
33 mm
50 mm
3000000
200 mm
4 m/s
4 m/s²
IEC 60332-1-2
The conductor is halogen-free
complying with DIN EN 60811-2-1
UV resistant
M12 x 1 male connector, straight, shielded
RJ45 Push-Pull connector, IP67
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 3 / 5
Jul 6, 2009
VS-P1207-P1210-C934/ 5,0
Order No.: 1608676
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1608676

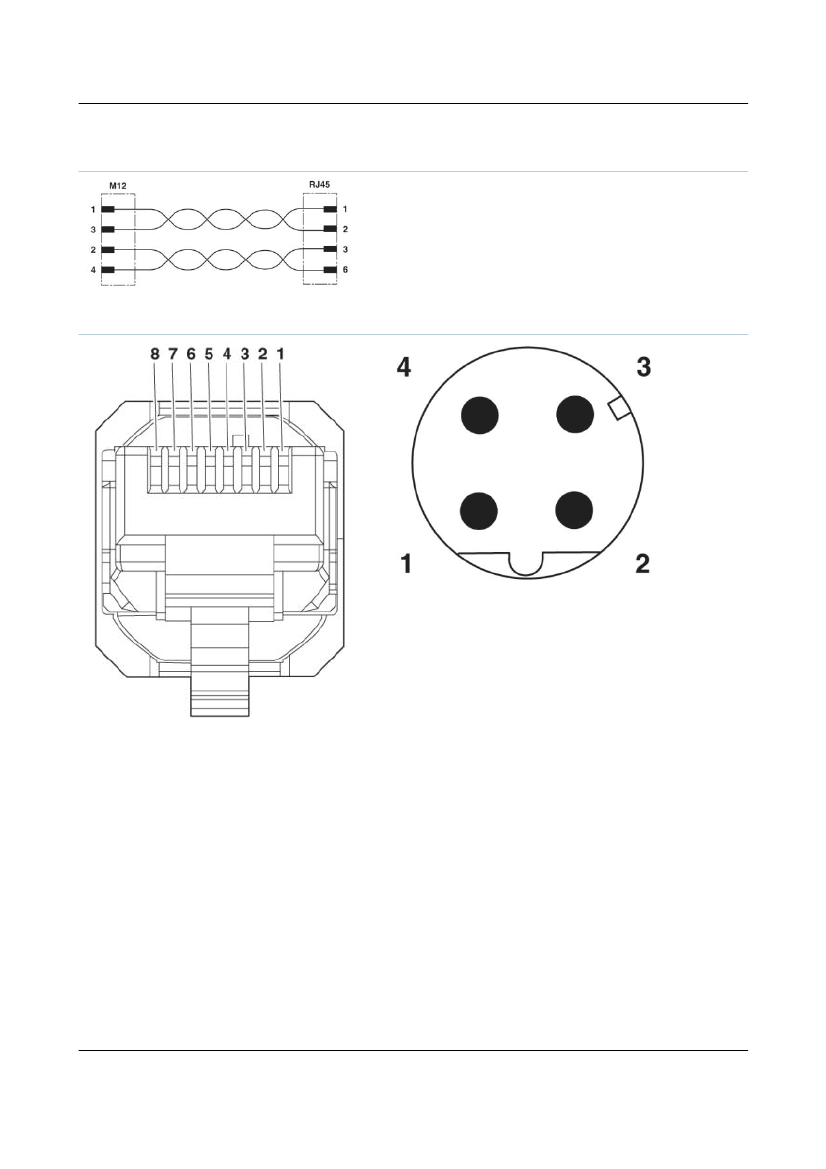

Circuit diagram
Schematic diagram
Pin assignment M12 male connector, 4-pos., D-
coded, male side
Connector pin assignment plug RJ45
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 4 / 5
Jul 6, 2009
VS-P1207-P1210-C934/ 5,0
Order No.: 1608676
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1608676
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2009 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 5 / 5
Jul 6, 2009
