3610PS-24T-B30-A00

Description
AC axial fan 240v 92.5x25mm
CategoryThermal management products
File Size366KB,2 Pages
ManufacturerNMB ( Minebea )
Websitehttp://www.nmbtc.com
Environmental Compliance
Download Datasheet Parametric View All

3610PS-24T-B30-A00 Online Shopping

Suppliers Part Number Price MOQ In stock
3610PS-24T-B30-A00 - - View Buy Now

3610PS-24T-B30-A00 Overview

AC axial fan 240v 92.5x25mm

3610PS-24T-B30-A00 Parametric

Parameter NameAttribute value
Datasheets
3610PS Series
Fans & Blowers Catalog
Product Photos
3610PS-24T-B30-A00
Other Related Documents
Fan Agency Approvals
3D Model
3610PS.s
3610PS.
3610PS.sld
3610PS.igs
PCN Part Numbe
Fan Motor Numbering System 13/Dec/2013
Standard Package30
CategoryFans, Thermal Manageme
FamilyAC Fans
Voltage - Rated240VAC
Size / DimensiSquare - 92.5mm L x 92.5mm H x 25mm W
Air Flow34.5 CFM (0.977m³/min)
Static Pressure0.243 in H2O (60.7 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise39 dB
Power (Watts)10.0W
RPM3100 RPM
Terminati2 Terminals
Ingress Protecti-
Weigh0.661 lb (299.82g)
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Current Rating0.065A
Life Expectancy50000 hrs @ 25°C
Voltage Range-
Material - FrameAluminum
Material - BladePolycarbonate (PC), Fiberglass Reinforced
Dynamic Catalog3610PS Series
Other Names09225PB-B4L-EA-003610PS24TB30A00P15055
(92
X
25
L
)
3610PS
NMBTC.COM / 818.341.3355

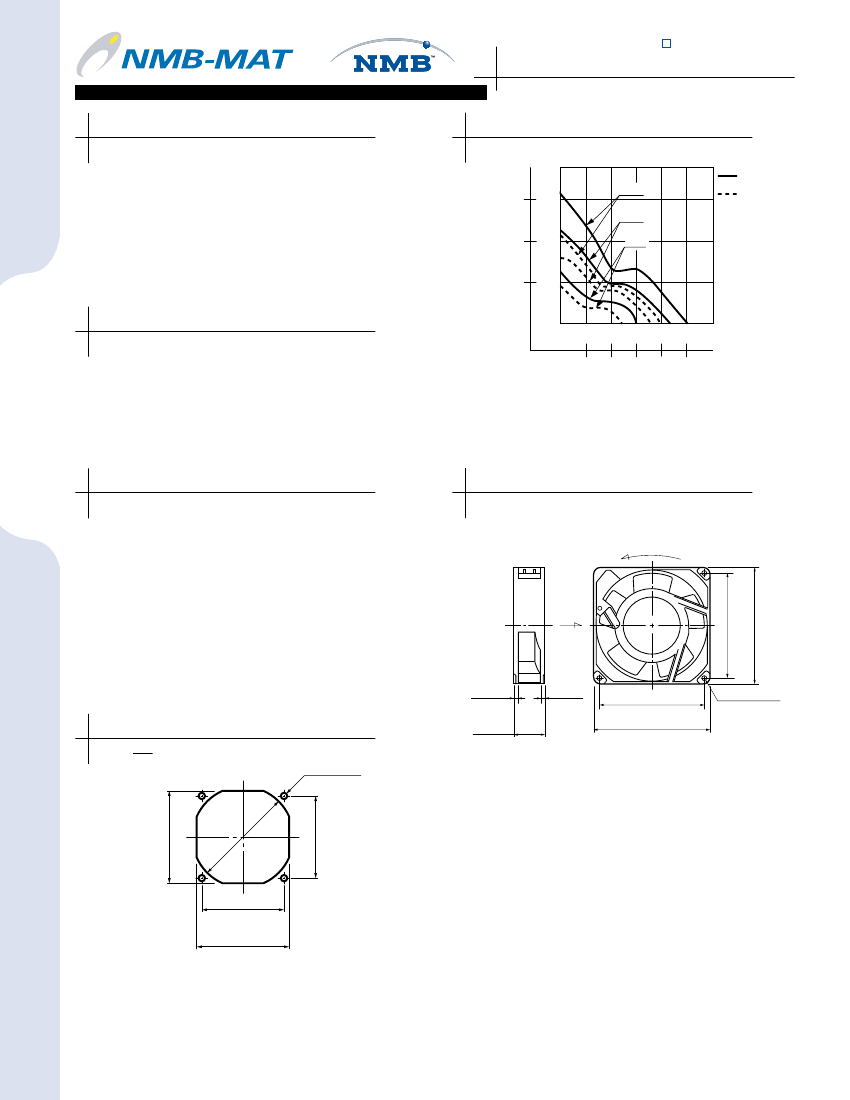

General Specifications
Motor Structure:
Shaded Pole Induction Motor
Motor Protection:
Impedance Protection
Insulation Resistance:
10M Ω or over with a DC500V Megger
Characteristic Curves
(Pa)
60
40
20
(m
3
/min)
B30
B20
B10
Dielectric Withstand Voltage:
AC 700V 1s
Allowable Ambient Temperature Range:
-10°C ~ +70°C (Operating)
-40°C ~ +70°C (Storage)
(non-condensing environment)
AC Axial Fans
Expected Life
Failure Rate: 10%
25°C
50,000 Hours
Ps
0
0.2 0.4 0.6 0.8 1.0
Air Flow
Material
: Aluminum
: Polycarbonate
(Glass Fiber-Containing)
Bearing
: Ball Bearing
Lead Wire : AWG22, UL3266, CSA CL1252
or
Terminal : Faston #110 or equivalent
Casing
Impeller
Outline
ROTATION
Static Pressure
60Hz
50Hz
AIR
NAME PLATE
Panel Cut-Outs
inch
Units: (mm)
.125
± .02
(3.5)
.98
+.04
–0.3
.125
± .02
(3.5)
(25
+1
)
–.01
3.25
± .01
(82.5
± 0.3
)
3.62
± .02
(92.5)
.169
4 – ( 4.3)
4.
10 17
6)
Flange Type
3.25
(82.5)
3.55
(89)
INLET SIDE / OUTLET SIDE
3.8
3.25
(82.5)
3.55
(89)
(
3.25
± .01
(82.5
± 0.3
)
.169
6 – ( 4.3
± 0.2
)
3.62
± .02
(92.5)
