BU1510-M3/51

Description
rectifier bridge 15a 1000v BU
Categorysemiconductor    Analog mixed-signal IC
File Size118KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BU1510-M3/51 Overview

rectifier bridge 15a 1000v BU

BU1510-M3/51 Parametric

Parameter NameAttribute value
Datasheets
BU1506-M3,1508-M3,1510-M3
Standard Package250
CategoryDiscrete Semiconductor Products
FamilyBridge Rectifiers
BU1506, BU1508, BU1510

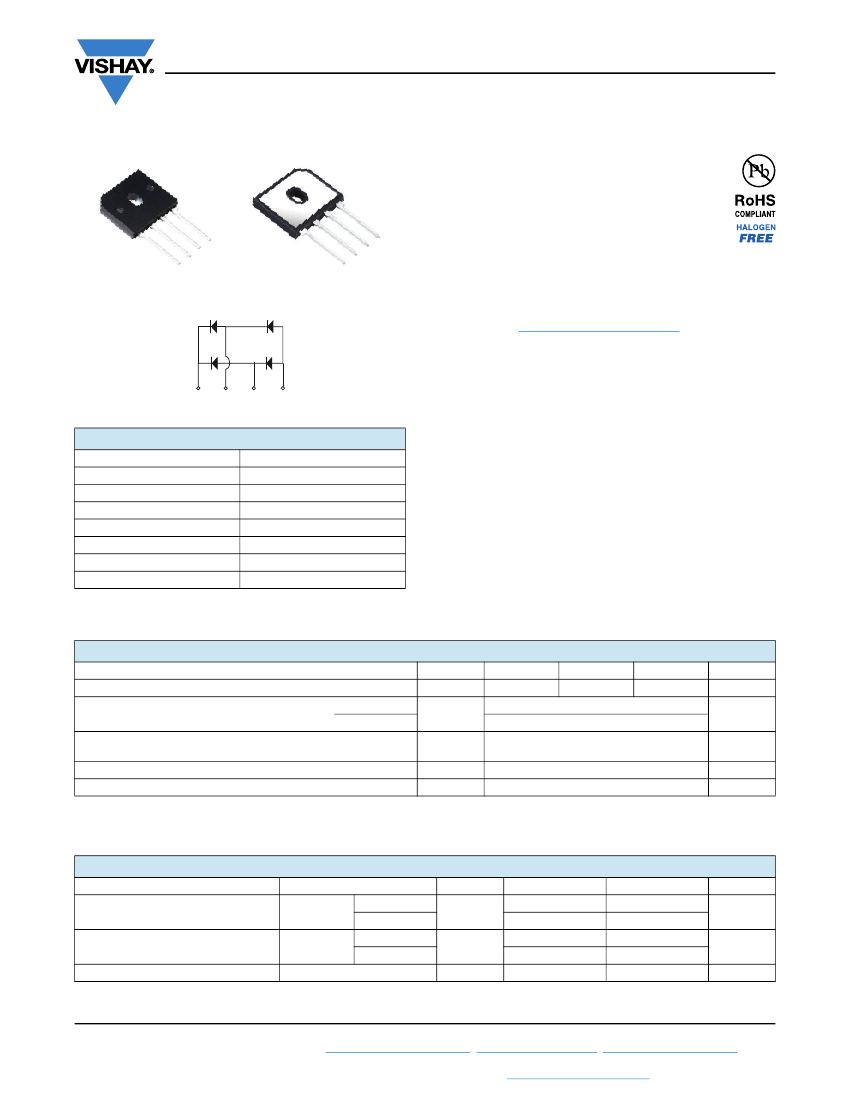

www.vishay.com
Vishay General Semiconductor
Enhanced isoCink+™ Bridge Rectifiers
FEATURES
• UL recognition file number E312394
• Thin single in-line package
• Glass passivated chip junction
• Available for BU-5S lead forming option
(part number with “5S” suffix, e.g. BU15065S)
• Superior thermal conductivity
• Solder dip 275 °C max. 10 s, per JESD 22-B106
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
+
~
~
-
-
~
~
+
Available
isoCink+™
Case Style BU
TYPICAL APPLICATIONS
+
~
~
-
General purpose use in AC/DC bridge full wave rectification
for switching power supply, home appliances and
white-goods applications.
PRIMARY CHARACTERISTICS
Package
I
F(AV)
V
RRM
I
FSM
I
R
V
F
at I
F
= 7.5 A
T
J
max.
Circuit configuration
BU
15 A
600 V, 800 V, 1000 V
200 A
5 μA
0.87 V
150 °C
In-line
MECHANICAL DATA
Case:
BU
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 and M3 suffix meet JESD 201 class 1A whisker test
Polarity:
as marked on body
Mounting Torque:
10 cm-kg (8.8 inches-lbs) max.
Recommended Torque:
5.7 cm-kg (5 inches-lbs)
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Average rectified forward current (Fig. 1, 2)
Non-repetitive peak forward surge current
8.3 ms single sine-wave, T
J
= 25 °C
Rating for fusing (t < 8.3 ms) T
J
= 25 °C
Operating junction and storage temperature range
Notes
(1)
With 60 W air cooled heatsink
(2)
Without heatsink, free air
T
C
= 80 °C
(1)
T
A
= 25 °C
(2)
SYMBOL
V
RRM
I
O
I
FSM
I
2
t
T
J
, T
STG
BU1506
600
BU1508
800
15
3.4
200
160
-55 to +150
BU1510
1000
UNIT
V
A
A
A
2
s
°C
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward
voltage per diode
(1)
Maximum reverse current per diode
Typical junction capacitance per diode
TEST CONDITIONS
I
F
= 7.5 A
rated V
R
4.0 V, 1 MHz
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
SYMBOL
V
F
I
R
C
J
TYP.
0.97
0.87
-
90
70
MAX.
1.05
0.95
5.0
250
-
UNIT
V
μA
pF
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
Revision: 29-Aug-17
Document Number: 84803
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

BU1510-M3/51 Related Products

BU1510-M3/51 BU1506-M3/51 BU1508-M3/51 BU15065S-M3/45 BU15105S-M3/45 MX3RHFC64M0
Description rectifier bridge 15a 1000v BU rectifier bridge 15a 600v BU rectifier bridge 15a 800v BU rectifier bridge 15a 600v BU-5S rectifier bridge 15a 1000v BU-5S Quartz Crystal,
Maker - Vishay Vishay Vishay Vishay -
package instruction - R-PSFM-T4 R-PSFM-T4 R-PSFM-T4 R-PSFM-T4 SMD, 4 PIN
Reach Compliance Code - unknow unknow unknow unknow unknown
ECCN code - EAR99 EAR99 EAR99 EAR99 -
Other features - UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED -
Minimum breakdown voltage - 600 V 800 V 600 V 1000 V -
Shell connection - ISOLATED ISOLATED ISOLATED ISOLATED -
Configuration - BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS -
Diode component materials - SILICON SILICON SILICON SILICON -
Diode type - BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE -
JESD-30 code - R-PSFM-T4 R-PSFM-T4 R-PSFM-T4 R-PSFM-T4 -
JESD-609 code - e3 e3 e3 e3 -
Maximum non-repetitive peak forward current - 200 A 200 A 200 A 200 A -
Number of components - 4 4 4 4 -
Phase - 1 1 1 1 -
Number of terminals - 4 4 4 4 -
Maximum operating temperature - 150 °C 150 °C 150 °C 150 °C 70 °C
Minimum operating temperature - -55 °C -55 °C -55 °C -55 °C -20 °C
Maximum output current - 3.4 A 3.4 A 3.4 A 3.4 A -
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY -
Package shape - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR -
Package form - FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT -
Peak Reflow Temperature (Celsius) - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
Maximum repetitive peak reverse voltage - 600 V 800 V 600 V 1000 V -
surface mount - NO NO NO NO YES
Terminal surface - Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) -
Terminal form - THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE -
Terminal location - SINGLE SINGLE SINGLE SINGLE -
Maximum time at peak reflow temperature - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
