CMOS Logic Hex
Non-Inverting Buffers
54HC4050

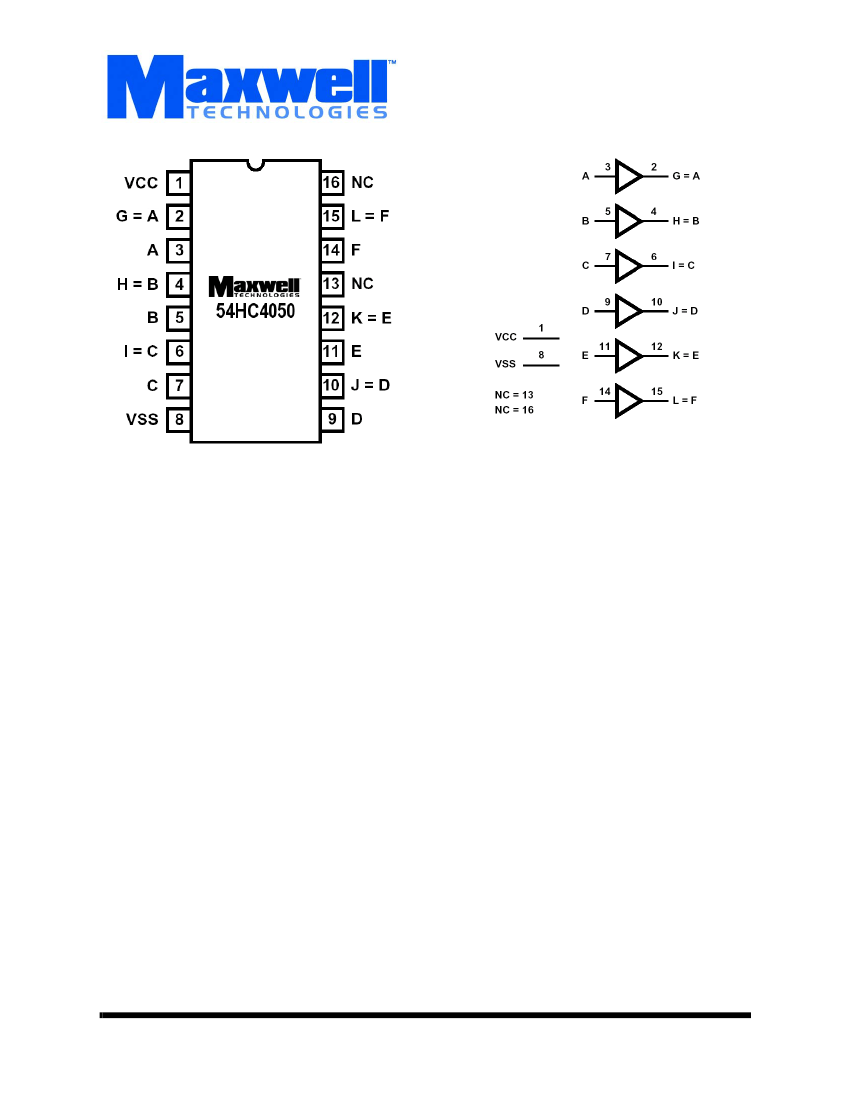

Logic Diagram
Memory
F
EATURES
:
• High speed CMOS logic hex non-inverting buffers
• R
AD
-P
AK
® radiation hardened against natural space radia-
tion
• Single Event Effects:
- SEL: > 120 MeV/mg/cm2
• Total dose hardness:
• - > 100 Krad (Si), depending upon space mission
• Package:
-16 Pin R
AD
-P
AK
® Flat Pack
• Typical propagation delay:
- 6ns at V
CC
= 5V, C
L
= 15pF, T
A
= 25°C
• High-to-Low voltage level converter for up to V
I
= 16V
• Fanout (over temperature range)
-10 LSTTL loads (Standard Outputs)
-15 LSTTL loads (Bus Driver Outputs)
• Balanced propagation delay and transition times
• Significant power reduction compared to LSTTL logic ICs
• 2V to 6V operation
• High noise immunity
• -N
IL
= 30%, N
IH
= 30% of V
CC
at V
CC
= 5V
D
ESCRIPTION
:
Maxwell Technologies' 54HC4050 high speed CMOS Logic
Hex Non-Inverting Buffers features a greater than 100 krad(Si)
total dose tolerance, depending upon space mission. These
parts have a modified input protection structure that enables
them to be used as logic level translators which will convert
high-level logic to a low-level logic while operating off the low-
level logic supply. For example, 15V input pulse levels can be
down-converted to 0V to 5V logic levels. The modified input
protection structure protects the input from negative electro-
static discharge. The 54HC4050 can be used as simple buff-
ers or inverters without level translation.
Maxwell Technologies' patented R
AD
-P
AK
® packaging technol-
ogy incorporates radiation shielding in the microcircuit pack-
age. It eliminates the need for box shielding while providing
the required radiation shielding for a lifetime in orbit or space
mission. In a GEO orbit, R
AD
-P
AK
provides greater than 100
krad (Si) radiation dose tolerance. This product is available
with screening up to Class S.
1000587
12.19.01 Rev 1
All data sheets are subject to change without notice
1
(858) 503-3300 - Fax: (858) 503-3301 - www.maxwell.com
©2001 Maxwell Technologies.
All rights reserved.
CMOS Logic Hex Non-Inverting Buffers
T
ABLE
1. 54HC4050 P
INOUT
D
ESCRIPTIONS
P
IN
1
8
13, 16
3, 5, 7, 9, 11, 14
2
4
6
10
12
15
S
YMBOL
V
CC
V
SS
NC
A-F
G=A
H=B
I=C
J=D
K=E
L=F
D
ESCRIPTION
Power supply
Ground
Not Connected
Inputs
Buffered Output
Buffered Output
Buffered Output
Buffered Output
Buffered Output
Buffered Output
54HC4050
Memory
T
ABLE
2. 54HC4050 A
BSOLUTE
M
AXIMUM
R
ATINGS
P
ARAMETER
Storage Temperature
Operating Temperature Range
DC Supply Voltage
DC Input Diode Current
For V
I
< -0.5V or V
I
> V
CC
+0.5V
DC Output Diode Current
For V
O
< -0.5V or V
O
> V
CC
+0.5V
DC Output Source or Sink Current per Output Pin
For V
O
> -0.5V or V
O
< V
CC
+0.5V
DC V
CC
or Ground Current
S
YMBOL
T
S
T
A
V
CC
I
IK
I
OK
I
O
I
CC
or I
GND
M
IN
-65
-55
-0.5
-20
-20
-25
-50
M
AX
150
125
7.0
+20
+20
+25
+50
U
NIT
°C
°C
V
mA
mA
mA
mA
T
ABLE
3. D
ELTA
L
IMITS
P
ARAMETER
I
CC
V
ARIATION
±10% of specified value in Table 5
1000587
12.19.01 Rev 1
All data sheets are subject to change without notice
2
©2001 Maxwell Technologies.
All rights reserved.
CMOS Logic Hex Non-Inverting Buffers
T
ABLE
4. 54HC4050 R
ECOMMENDED
O
PERATING
C
ONDITIONS
P
ARAMETER
Supply Voltage
DC Input or output Voltage
Input Rise and Fall Time
2V
4.5V
6V
Temperature Range
T
A
S
YMBOL
V
CC
V
I
, V
O
M
IN
2
0
--
1000
500
400
-55
125
M
AX
6
V
CC
54HC4050
U
NIT
V
V
ns
°C
T
ABLE
5. 54HC4050 DC E
LECTRICAL
C
HARACTERISTICS
(V
CC
= 5V ±10%, T
A
= -55
TO
125°C,
UNLESS OTHERWISE SPECIFIED
)
P
ARAMETER
High Level Output Voltage
CMOS Loads
S
YMBOL
V
OH
T
EST
C
ONDITIONS
V
I
= V
IH
or V
IL
, I
O
= -0.02mA
V
CC
= 2V
V
CC
= 4.5V
V
CC
= 6V
V
I
= V
IH
or V
IL
, I
O
= -4mA
V
CC
= 4.5V
V
I
= V
IH
or V
IL
, I
O
= -5.2mA
V
CC
= 6V
Low Level Output Voltage
CMOS Loads
V
OL
V
I
= V
IH
or V
IL
, I
O
= -0.02mA
V
CC
= 2V
V
CC
= 4.5V
V
CC
= 6V
V
I
= V
IH
or V
IL
, I
O
= 4mA
V
CC
= 4.5V
V
I
= V
IH
or V
IL
, I
O
= 5.2mA
V
CC
= 6V
High Level Input Voltage
V
IH
V
CC
= 2V
V
CC
= 4.5V
V
CC
= 6V
V
CC
= 2V
V
CC
= 4.5V
V
CC
= 6V
V
CC
= 6V, V
I
= V
CC
or GND
V
CC
= 6V, V
I
= 15V
+25°C
-55 to 125°C
+25°C
-55 to 125°C
1000587
12.19.01 Rev 1
M
IN
1.9
4.4
5.9
+25°C
-55 to 125°C
+25°C
-55 to 125°C
3.98
3.7
5.48
5.2
M
AX
--
--
--
--
--
--
U
NIT
V
Memory
High Level Output Voltage
TTL Loads
V
0.1
0.1
0.1
+25°C
-55 to 125°C
+25°C
-55 to 125°C
0.26
0.4
0.36
0.4
1.5
3.15
4.2
--
--
--
--
--
--
--
--
--
--
--
--
--
--
0.5
1.35
1.8
±0.1
±1
±0.5
±5
V
Low Level Output Voltage
TTL Loads
Low Level Input Voltage
V
IL
V
Input Leakage Current
I
I
µA
All data sheets are subject to change without notice
3
©2001 Maxwell Technologies.
All rights reserved.
CMOS Logic Hex Non-Inverting Buffers
T
ABLE
5. 54HC4050 DC E
LECTRICAL
C
HARACTERISTICS
(V
CC
= 5V ±10%, T
A
= -55
TO
125°C,
UNLESS OTHERWISE SPECIFIED
)
P
ARAMETER
Quiescent Device Current
S
YMBOL
I
CC
T
EST
C
ONDITIONS
V
I
= V
CC
or GND, I
O
= 0mA
V
CC
= 6V
+25°C
-55 to 125°C
M
IN
--
--
54HC4050
M
AX
2
40
U
NIT
µA
T
ABLE
6. 54HC4050 AC E
LECTRICAL
C
HARACTERISTICS
(V
CC
= 5V ±10%, T
A
= -55
TO
125°C,
UNLESS OTHERWISE SPECIFIED
)
P
ARAMETER
Propogation Delay
nA to nY
S
YMBOL
t
PLH,
t
PHL
C
L
= 50pF
V
CC
= 2V
V
CC
= 4.5V
V
CC
= 6V
Transition Times
(Figure 1)
t
TLH,
t
THL
C
L
= 50pF
V
CC
= 2V
V
CC
= 4.5V
V
CC
= 6V
T
EST
C
ONDITION
+25°C
--
-55 to 125°C
+25°C
-55 to 125°C
+25°C
-55 to 125°C
+25°C
--
-55 to 125°C
+25°C
-55 to 125°C
+25°C
-55 to 125°C
--
--
--
--
--
75
110
15
22
13
19
--
--
--
--
--
85
130
17
26
M
IN
M
AX
U
NIT
ns
Memory
14
22
ns
T
ABLE
7. 54HC4050 C
APACITANCE1
P
ARAMETER
Input Capacitance
Power Dissipation Capacitance
2, 3
1.
Guaranteed by design.
2. C
PD
is used to determine the dynamic power consumption, per gate.
3. P
D
= V
CC2
fi (C
PD
+ C
L
) where fi = Input Frequency, C
L
= Output Load Capacitance, V
CC
= Supply Voltage.
S
YMBOL
C
I
C
PD
V
CC
= 5V
T
EST
C
ONDITIONS
M
AX
10
35
U
NIT
pF
pF
1000587
12.19.01 Rev 1
All data sheets are subject to change without notice
4
©2001 Maxwell Technologies.
All rights reserved.
