FLIP-CHIP TVS DIODES
CHFP6KE5.0
thru
CHFP6KE170CA
FEATURES
•
•
•
•
•
•
Unidirectional and Bidirectional
Fully glass passivated
600 watt (10/1000
µs)
Eliminates wire bonding
NON Inductive Insertion
No voltage overshoot
Patented Flip-Chip Series
MAXIMUM RATINGS
•
•
•
•
•
•
•
Max Junction Temperature: 150
0
C (with conformal coating)
Storage Temperature: -55
0
C to +150
0
C
Flip-Chip Peak Pulse Power: 600 Watts (10/1000
µs)
Maximum non-repetitive peak power 600 Watts (10/1000
µs)
Total continuous power dissipation 2.5 W (with adequate heat
sink @ 75
0
C)
Turn-on time (theoretical) unidirectional 1X10
-12
Turn-on time (theoretical) bidirectional 1X10
-9
MECHANICAL
•
Weight: 0.01 grams (approximate)
•
•
Solderable standoff tabs .040X.040X.010
Waffle package 50 pices or wafer ring 70 pieces
PACKAGING
BIDIRECTIONAL ALL DIMENSIONS NOMINAL
inches (mm)
FLIP-CHIP DIMENSIONS
PAD SIZE & CIRCUIT
UNIDIRECTIONAL ALL DIMENSIONS NOMINAL
inches (mm)
FLIP-CHIP DIMENSIONS
PAD SIZE & CIRCUIT
V
BR
above 30 V
V
BR
30V and below
MSC1596.PDF
ISO 9001 CERTIFIED
REV B 3/13/2000
CHFP6KE5.0 thru CHFP6KE170CA

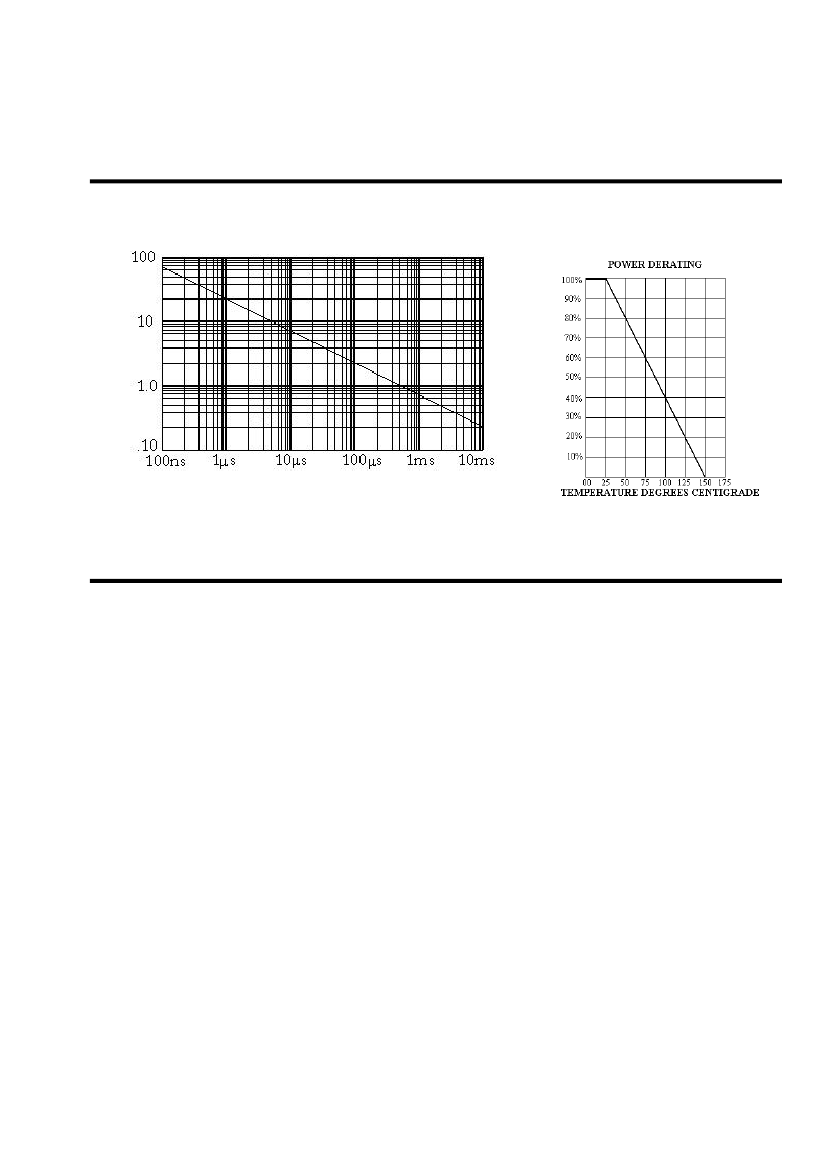

PEAK PULSE POWER Vs PULSE TIME
P
pp
– PEAK PULSE POWER – kW
PEAK PULSE
POWER DERATING
TP – PULSE TIME – SEC
TEMPERATURE °C
ATTACHMENT AND CONFORMAL COATING
INSTRUCTIONS
FOR Flip-Chip COMPONENTS
The .010” thick tab standoffs minimize shorting during attachment; however, minimal
solder/conductive epoxy must be used and carefully controlled to prevent excess
attachment material from wicking up the side of the tab and shorting across the junction.
Maximum recommended solder temperatures are 212 C for IR reflow and 221 C for
vapor-phase reflow. For flip-chip protection, coating material is Stycast ™ 2651-40 low-
viscosity epoxy manufactured by Emerson & Cuming. Follow instructions carefully for
preparation of the epoxy to prevent entrapment of air bubbles. Make sure that
Flip-Chips
have been baked at 100 C for 15 minutes minimum to out-gas any adsorbed moisture
immediately prior to coating. Epoxy-coating material should be dispensed around the
edges of the chip with an appropriately sized syringe after which epoxy is de-aired to
remove bubbles entrapped beneath the chip. Cure epoxy as instructed by the supplier.
MSC1596.PDF
ISO 9001 CERTIFIED
Peak Pulse Power (P
PP
) or Current (I
PP
)
In percent of 25° C rating
REV B 3/13/2000
CHFP6KE5.0 thru CHFP6KE170CA
ELECTRICAL Characteristics @ 25 C Unless otherwise specified
Part
Number
Rated
Stand-off
Voltage
V
WM
VOLTS
CHFP6KE5.0
CHFP6KE5.0A
CHFP6KE6.0
CHFP6KE6.0A
CHFP6KE6.5
CHFP6KE6.5A
CHFP6KE7.0
CHFP6KE7.0A
CHFP6KE7.5
CHFP6KE7.5A
CHFP6KE8.0
CHFP6KE8.0A
CHFP6KE8.5
CHFP6KE8.5A
CHFP6KE9.0
CHFP6KE9.0A
CHFP6KE10
CHFP6KE10A
CHFP6KE11
CHFP6KE11A
CHFP6KE12
CHFP6KE12A
CHFP6KE13
CHFP6KE13A
CHFP6KE14
CHFP6KE14A
CHFP6KE15
CHFP6KE15A
CHFP6KE16
CHFP6KE16A
CHFP6KE17
CHFP6KE17A
CHFP6KE18
CHFP6KE18A
CHFP6KE20
CHFP6KE20A
CHFP6KE22
CHFP6KE22A
CHFP6KE24
CHFP6KE24A
CHFP6KE26
CHFP6KE26A
CHFP6KE28
CHFP6KE28A
CHFP6KE30
CHFP6KE30A
CHFP6KE33
CHFP6KE33A
CHFP6KE36
CHFP6KE36A
CHFP6KE40
CHFP6KE40A
CHFP6KE43
CHFP6KE43A
CHFP6KE45
CHFP6KE45A
CHFP6KE48
CHFP6KE48A
CHFP6KE51
CHFP6KE51A
CHFP6KE54
CHFP6KE54A
CHFP6KE58
CHFP6KE58A
CHFP6KE60
CHFP6KE60A
CHFP6KE64
CHFP6KE64A
CHFP6KE70
CHFP6KE70A
CHFP6KE75
CHFP6KE75A
CHFP6KE78
CHFP6KE78A
CHFP6KE85
CHFP6KE85A
CHFP6KE90
CHFP6KE90A
CHFP6KE100
CHFP6KE100A
CHFP6KE110
CHFP6KE110A
CHFP6KE120
CHFP6KE120A
CHFP6KE130
CHFP6KE130A
CHFP6KE150
CHFP6KE150A
CHFP6KE160
CHFP6KE160A
CHFP6KE170
5.0
5.0
6.0
6.0
6.5
6.5
7.0
7.0
7.5
7.5
8.0
8.0
8.5
8.5
9.0
9.0
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
20
20
22
22
24
24
26
26
28
28
30
30
33
33
36
36
40
40
43
43
45
45
48
48
51
51
54
54
58
58
60
60
64
64
70
70
75
75
78
78
85
85
90
90
100
100
110
110
120
120
130
130
150
150
160
160
170
Minimum
Breakdown Voltage
V(
BR
) @I
T
VOLTS
6.4
6.4
6.67
6.67
7.22
7.22
7.78
7.78
8.33
8.33
8.89
8.89
9.44
9.44
10.0
10.0
11.1
11.1
12.2
12.2
13.3
13.3
14.4
14.4
15.6
15.6
16.7
16.7
17.8
17.8
18.9
18.9
20.0
20.0
22.2
22.2
24.4
24.4
26.7
26.7
28.9
28.9
31.1
31.1
33.3
33.3
36.7
36.7
40.0
40.0
44.4
44.4
47.8
47.8
50.0
50.0
53.3
53.3
56.7
56.7
60.0
60.0
64.4
64.4
66.7
66.7
71.1
71.1
77.8
77.8
83.3
83.3
86.7
86.7
94.4
94.4
100
100
111
111
122
122
133
133
144
144
167
167
178
178
189
mA
10
10
10
10
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum Clamping
@ I
PP
V
C
Max
VOLTS
9.6
9.2
11.4
10.3
12.3
11.2
13.3
12.0
14.3
12.9
15.0
13.6
15.9
14.4
16.9
15.4
18.8
17.0
20.1
18.2
22.0
19.9
23.8
21.5
25.8
23.2
26.9
24.4
28.8
26.0
30.5
27.6
32.2
29.2
35.8
32.4
39.4
35.5
43.0
38.9
46.6
42.1
50.0
45.4
53.5
48.4
59.0
53.3
64.3
58.1
71.4
64.5
76.7
69.4
80.3
72.7
85.5
77.4
91.1
82.4
96.3
87.1
103
93.6
107
96.8
114
103
125
113
134
121
139
126
151
137
160
146
179
162
196
177
214
193
231
209
268
243
287
259
304
Maximum Reverse
Leakage
@ V
WM
I
D
µA
800
800
800
800
500
500
200
200
100
100
50
50
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Rated Maximum
Peak Pulse
Current
I
PP
AMPS
62.5
62.5
52.6
58.3
48.7
53.6
45.1
50.0
42.0
46.5
40.0
44.1
37.7
41.7
35.5
59.0
31.9
35.3
29.9
33.0
27.3
30.2
25.2
27.9
23.3
25.8
22.3
24.0
20.8
23.1
29.7
21.7
18.6
20.5
16.7
18.5
15.2
16.9
14.0
15.4
12.4
14.2
12.0
13.2
11.2
12.4
10.2
11.3
9.3
10.3
8.4
9.3
7.8
8.6
7.5
8.3
7.0
7.7
6.6
7.3
6.2
6.9
5.8
6.4
5.6
6.2
5.3
5.8
4.8
5.3
4.5
4.9
4.3
4.7
3.9
4.4
3.8
4.1
3.4
3.7
3.0
3.4
2.8
3.1
2.6
2.9
2.2
2.5
2.1
2.3
2.0
Maximum Voltage
Temperature
Coefficient
OF V(
BR
)
%/°C
.057
.057
.059
.059
.061
.061
.065
.065
.067
.067
.070
.070
.073
.073
.076
.076
.078
.078
.081
.081
.082
.082
.084
.084
.086
.086
.087
.087
.088
.088
.090
.090
.092
.092
.093
.093
.094
.094
.096
.096
.097
.097
.098
.098
.099
.099
.100
.100
.101
.101
.101
.101
.102
.102
.102
.102
.103
.103
.103
.103
.104
.104
.104
.104
.104
.104
.105
.105
.105
.105
.105
.105
.106
.106
.107
.107
.107
.107
.107
.107
.108
.108
.108
.108
.108
.108
.108
.108
.108
.108
.108
0
Note:
For bidirectional devices
add a “C” (example
CHFP6KE5.0C thru
CHFP6KE170CA
are
bidirectional devices).
TOLERANCES
A suffix designates 5%
Plain suffix designates
10%
MSC1596.PDF
ISO 9001 CERTIFIED
REV B 3/13/2000
