GCTJ-08-8-714LO-BK-P1-FS-PG3 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> GCTJ-08-8-714LO-BK-P1-FS-PG3

Preview

GCTJ-08-8-714LO-BK-P1-FS-PG3: DescriptionTelecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

GCTJ-08-8-714LO-BK-P1-FS-PG3 Overview

Telecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

GCTJ-08-8-714LO-BK-P1-FS-PG3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1308554504
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.591 inch
subject depth	0.62 inch
body length	2.51 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
JESD-609 code	e3
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.096 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

D

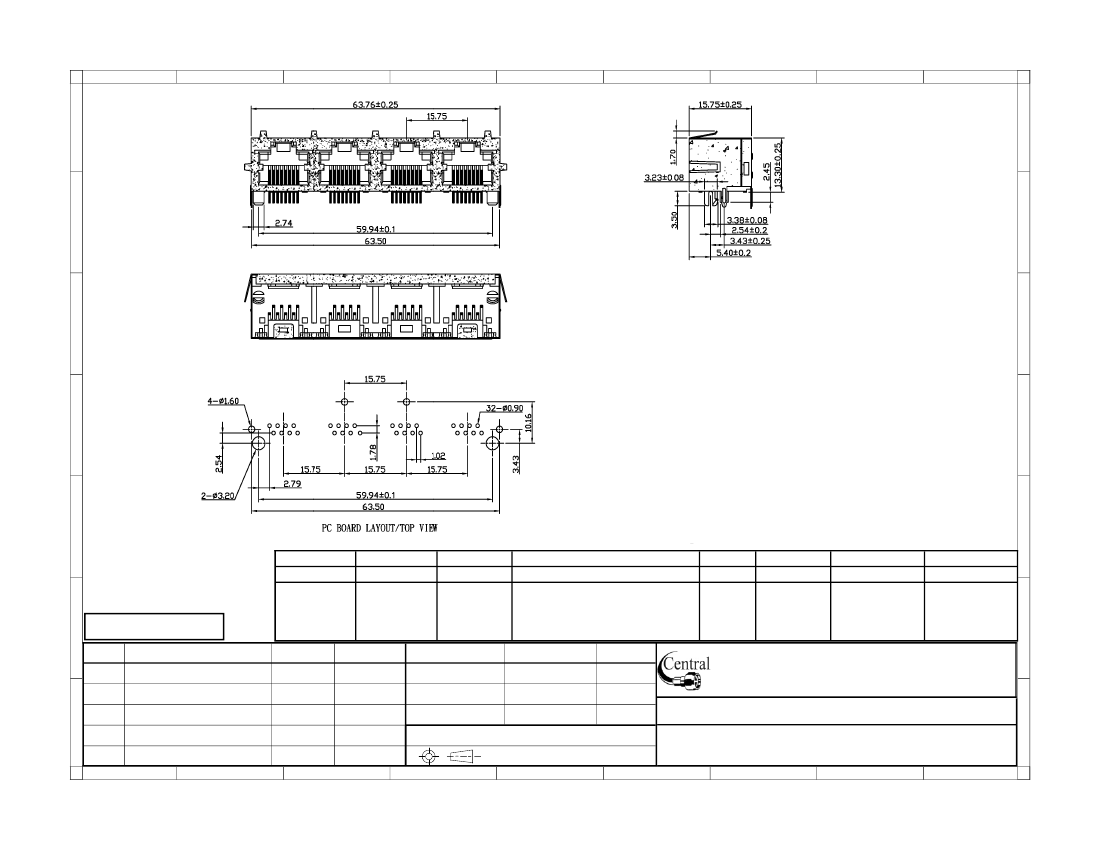

SPECIFICATIONS

Current Rating:

Voltage Rating:

Contact Material:

Contact Plating:

E

1.5 Amps

150V AC

0.35mm Thick Phosphor Bronze

Selective gold over nickel,

tin on terminal

Contact Resistance:

20mΩ Max.

Housing Material:

Nylon 46 thermoplastic UL94V-0

Insulation Resistance: 500MΩ Min.

Shield Material:

0.25mm Thick Copper alloy

Nickel Plating

Series

GCTJ

4 Port Modular

Jack

Positions

08

08=8 Positions

Contacts

8

8=8 Contacts

Type

Color

Plating

Options

714LXX

BK

PX

FS

Omit LXX=no LED; Left then right LED: BK=Black P1=15u” Gold [blank]=No Shield

R=Red; G=Green; Y=Yellow;

P2=30u” Gold FS=Full Shield

O=Orange; A=Amber; D=Red/Green;

P3=50u” Gold

W=Yellow/Green; P=Orange/Green

Panel Grounds

PG3

[blank]=None

1=Top

3=Top & Sides

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

F

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

7/11/03

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Part No.:

GCTJ-08-8-714LXX-BK-PX-FS-PG3

Description: 4 Port Modular Jack Side Entry, Shielded

6

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

1

2

3

4
