3916-2-18-1: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3916-2-18-1 Overview

Board Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Surface Mount Terminal, Locking, Plug

3916-2-18-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307348519
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.2 inch
subject depth	0.368 inch
body length	2.806 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	3916
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.8928 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3.9624 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
Evacuation force-minimum value	.5004 N

Preview

Download Datasheet

View All

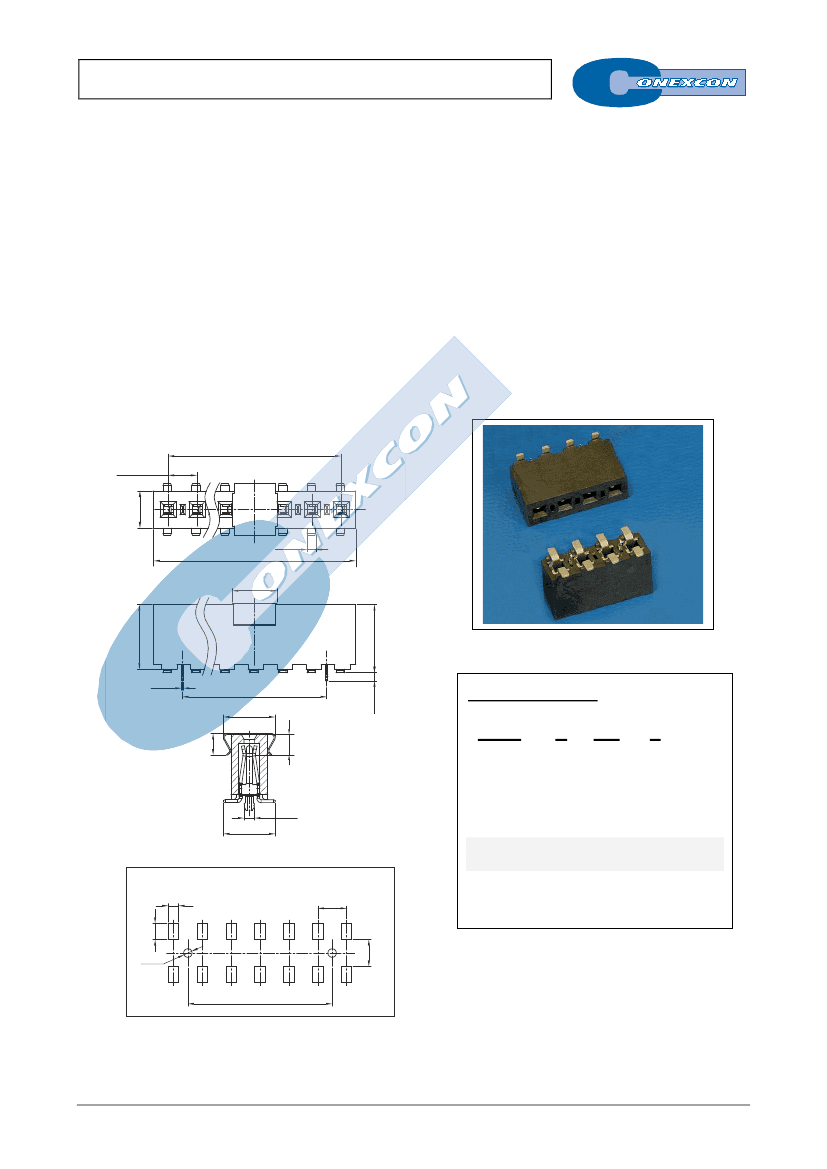

BOARD TO BOARD TOP ENTRY SMT CONNEC.

3916 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2 through 24 circuits

Mates with 3.96 mm pin header 1.14 mm square/round

pin 3986, 3987, 3988, 3917, 3918, 3919 and 3920 Series

Box contact PCB female terminal



Voltage rating: < 250V

Current rating: < 7 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Mechanical Features



Insulator: High temperature plastic UL 94 V-0

Contact: Tin plated phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant



Insertion force receptacle/plug: < 0.70 Kgf/pin

Unmating force receptacle/plug: > 0.05 Kgf/pin

Contact retention force to housing: > 1.00 Kgf/pin

Durability: 50 cycles

Dimensional Information

A

3.96±0.10

5.08

1.14

B

6.10

0.25

9.35±0.08

8.89

7.10

3.00

2.80

1.10

C

Ordering Information:

3916 -

1

T-

2

XX-

3

1

1. Connector Series

1.40

7.10

2. (T) Contact Plating



T =

2.

Tin plated

Recommended Finish

RECOMMENDED HOLE PATTERN

1.40

2.20

3. (XX) Number of circuits

3.96



Available in 2 through 24 circuits

3.70

ø1.16

Dimensions:

(In mm.)

C

A

= 3.96 x (XX*-1)

B

= 3.96 x (XX*)

C

= 3.96 x (XX*-2)

* XX

(Number of circuits)

E-XX
