5338H7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5338H7

5338H7: DescriptionSingle Color LED, Yellow, Diffused, T-1 3/4, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size68KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

5338H7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5338H7	-	-	View	Buy Now

5338H7 Overview

Single Color LED, Yellow, Diffused, T-1 3/4, 5mm,

5338H7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.06 A
Lens type	DIFFUSED
Nominal luminous intensity	10.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	9.652 mm
method of packing	BULK
peak wavelength	585 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	24 deg
Base Number Matches	1

Preview

Download Datasheet

View All

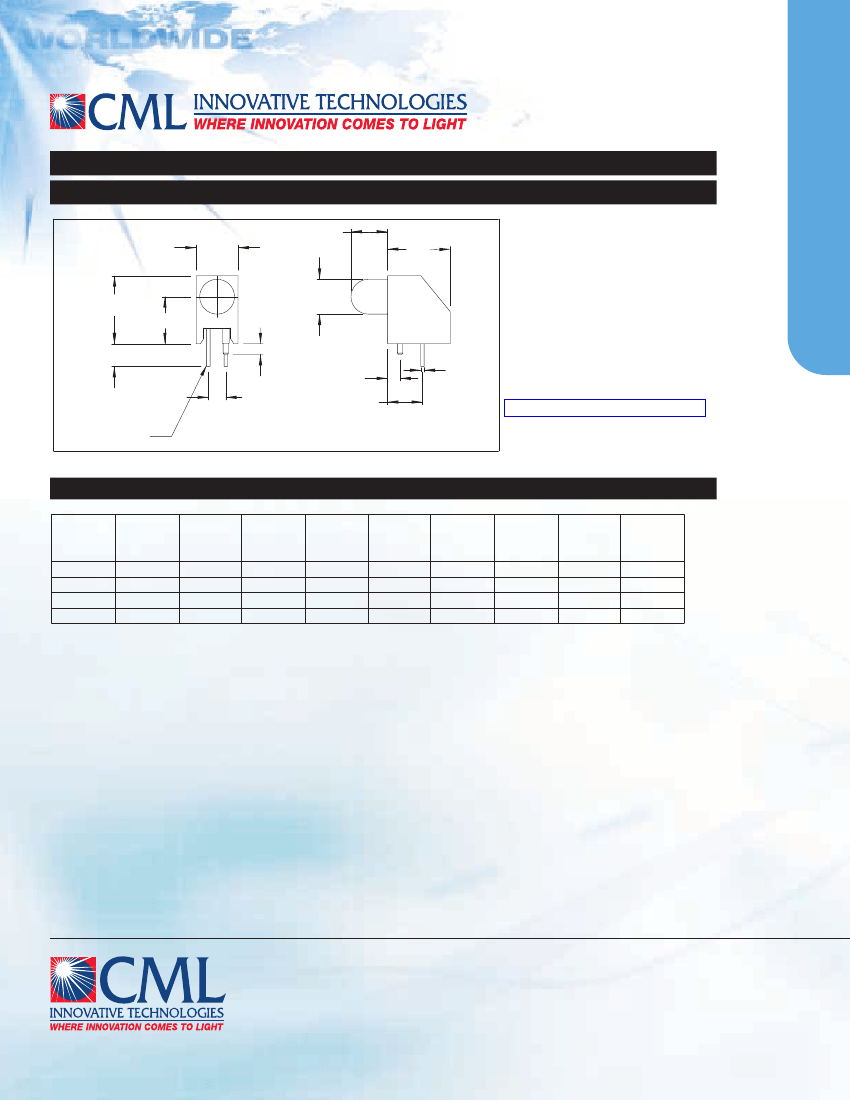

5338 Series T-1 3/4 Right Angle LED Assembly

DESCRIPTION AND FEATURES

.215±.020

.275

.360

.380

.250

.070

.200

MAX.

Features

• Block mounting, height and spacing

alignment saves assembly cost and

time.

• Super Brite LEDs-high intensity light

output.

• Press-in pin secures block to board

for soldering.

• Standoffs prevent flux entrapment.

Housing: Black Nylon, UL94V-O

.120

.130

.100

.230

.020

S Q.

Alternate LEDs are also available in

this package as a standard variation.

Mounting hole pattern on page 1-X6.

ANODE (+)

All dimens ions in inches .

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

Typ.

Intensity

(mcd)

6.3

Part

Number

5338H1

5338H3

5338H5

5338H7

Color

Red

Amber

Green

Yellow

Rated

Current

(mA)

Continuous

Forward

Peak Forward

Forward

Voltage Typ. Voltage Max.

Current @ 1ms-

Current Max.

(V)

300pps (A)

(mA)

1.0

2.0

3.0

2.0

2.2

2.1

3.0

1.0

.09

1.0

Reverse

Break-down

Voltage Min.

(V)

Peak

Wavelength

(nm)

650

608

563

585

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

5338 Series T-1 3/4 Right Angle LED Assembly
