1110-25-108-03 datasheet, PDF - EEWORLD Datasheet

1110-25-108-03: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size231KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

1110-25-108-03 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Natural Insulator, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	TOP POLARIZING
body width	0.25 inch
subject depth	0.3 inch
body length	0.79 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.224 N
Insulation resistance	500000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	1100
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	HOUSING SIDE
Rated current (signal)	3.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.105 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Evacuation force-minimum value	.556 N
Base Number Matches	1

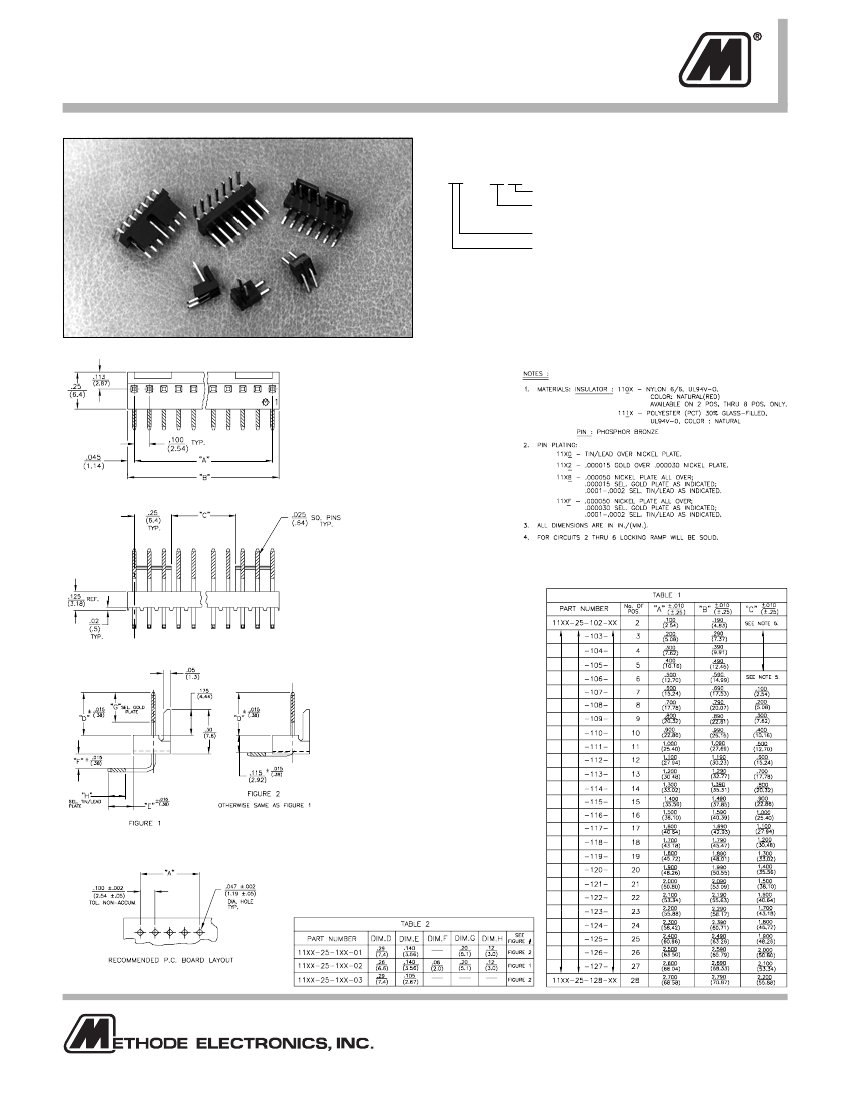

.100” (2.54mm) Single Row, Through Hole

Right Angle, Top Polarizing Headers

1100 SERIES “TERMACON”

PART NUMBER LEGEND

11XX-25-1XX-XX

PIN LENGTH

(SEE TABLE 2)

NUMBER OF POSITIONS PER ROW

(SEE TABLE 1)

PIN PLATING

(SEE NOTE 2)

INSULATOR MATERIAL

(SEE NOTE 1)

MATING CONNECTORS: 1000 SERIES & 1300 SERIES

CRIMP OR IDC STYLE CONNECTORS

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
