BG221-06-C-N-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BG221-06-C-N-D

BG221-06-C-N-D: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG221-06-C-N-D Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

BG221-06-C-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304450906
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.28 inch
body length	0.3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BG221
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

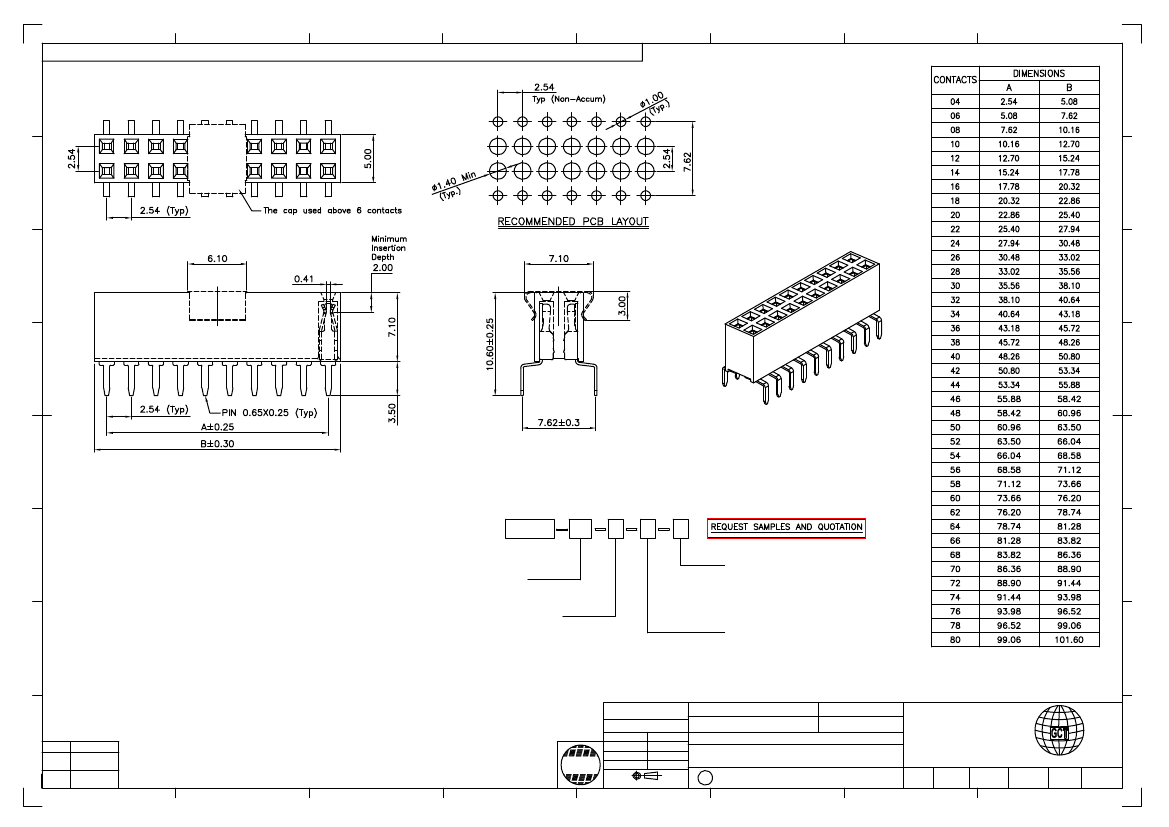

Global Connector Technology Ltd. - BG221: 2.54mm PITCH SOCKET, DUAL ROW, THROUGH-HOLE, VERTICAL, DUAL ENTRY

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

DIELECTRIC WITHSTANDING

耐电压

: AC 600 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG025

BG040

BG041

BG045

BG050

BG065

BG070

BG085

Ordering Grid

BG221

No. of Contacts

04 to 80

Packing Options

D = Tube (Standard)

E = Tube with Cap

F = Tube with Film

G = Plastic Box

Insulator Material

N = Nylon 6T (Standard)

L = LCP

For bottom entry applications, stringent soldering control & pin alignment are required,

else misalignment of lead to pad due to soldering will make bottom entry impossible.

Part Number:-

Date:-

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Tolerances

(Except as noted)

Dimensions in mm

X.°±5°

.X°±3°

.XX°±2°

X.XXX ± 0.10 .XXX°±1°

X. ± 0.30

X.X ± 0.25

X.XX ± 0.15

Third Angle Projection

BG221

Description:-

09 APR 07

DETAIL

REV

DATE

DRAWING

RELEASE

09/04/07

RoHS

2.54mm PITCH SOCKET, DUAL ROW,

THROUGH-HOLE, VERTICAL, DUAL ENTRY

Global

Connector

Technology

Scale

NTS

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by
