OD1238-24HHBXC5

Description
fan 120x38mm 24v pwm
CategoryThermal management products
File Size91KB，1 Pages
ManufacturerOrion Fans
Websitehttp://www.orionfans.com
Environmental Compliance
Download Datasheet Parametric View All

OD1238-24HHBXC5 Overview

fan 120x38mm 24v pwm

OD1238-24HHBXC5 Parametric

Parameter NameAttribute value
Datasheets
OD1238 Series XC
AC,DC Part Number Guide
Orion Fan Catalog
Circuit Diagrams
Product Photos
OD1238_XC Series
Standard Package40
CategoryFans, Thermal Manageme
FamilyDC Fans
Voltage - Rated24VDC
Size / DimensiSquare - 120mm L x 120mm H x 38.5mm W
Air Flow154.0 CFM (4.36m³/min)
Static Pressure0.570 in H2O (142.0 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesPWM Control
Noise52 dB
Power (Watts)-
RPM3800 RPM
Terminati3 Wire Leads
Ingress Protecti-
Weigh-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Current Rating0.600A
Voltage Range12 ~ 28VDC
Life Expectancy65000 hrs @ 45°C
Material - FramePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - BladePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Associated Produc1053-1489-ND - 120MM FAN FILTER MEDIA 45PPM1053-1488-ND - 120MM FAN FILTER MEDIA 30PPM
Other NamesOD123824HHBXC5OD1238PT-24HHBXC5

Preview

Download Datasheet

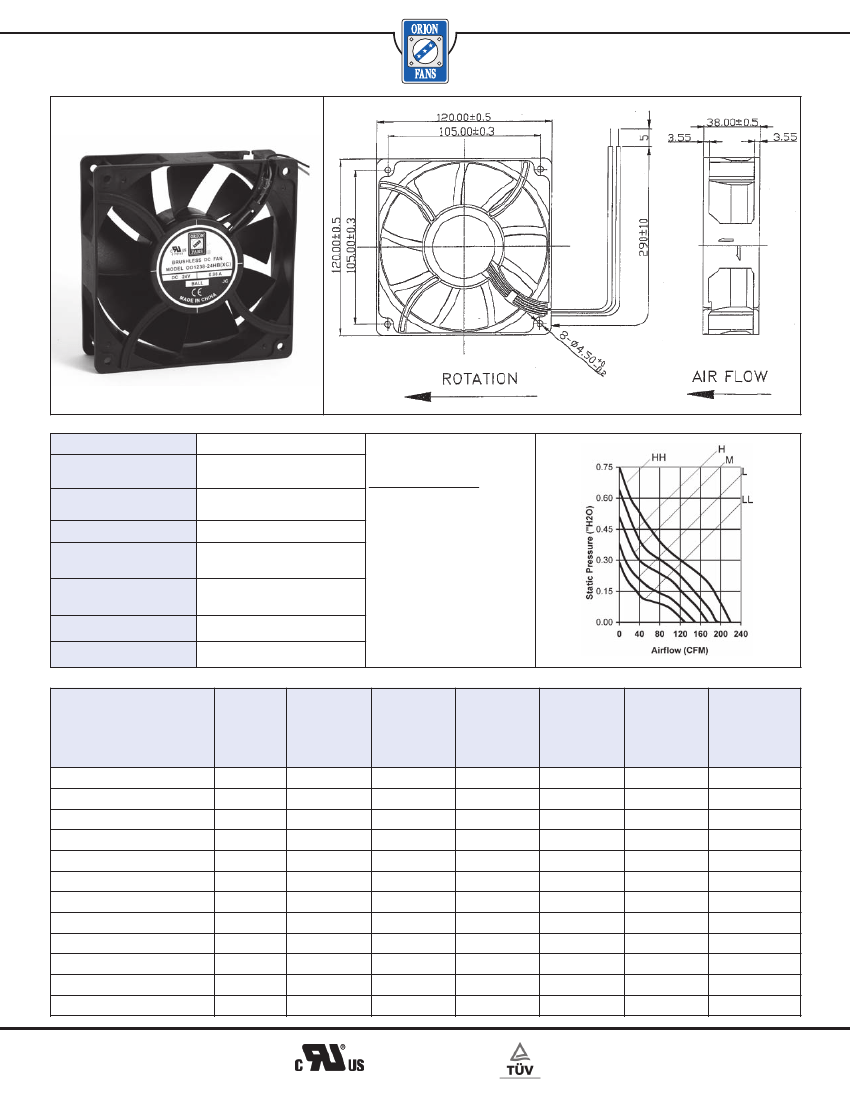

OD1238 - ‘XC Series’
High Performance
High Performance DC Fan
120x38mm (4.7”x 1.5”)
Frame & Impeller
Connection
Motor
PBT, UL94V-O plastic
2x Lead wires 24AWG
Dual ball bearing
Bearing System
Brushless DC, auto restart,
polarity protected
10M ohm between leadwire
and frame (500VDC)
1 second at 500 VAC, max
leakage - 500 MicroAmp
-10C ~ +70C
65,000 hours (45C)
Available Options:
Insulation Resistance
Dielectric Strength
Life (L10)
Tachometer (Frequency
Generator)
Alarm (Rotation Detector)
Temperature Range
Thermistor (Thermal Speed
Control) Lead or
hub mounted
m1
Model Number
OD1238-12HB-XC
OD1238-12MB-XC
OD1238-12LB-XC
OD1238-24HB-XC
OD1238-24MB-XC
OD1238-24LB-XC
OD1238-24LLB-XC
OD1238-48HHB-XC
OD1238-48HB-XC
OD1238-48MB-XC
OD1238-48LB-XC
OD1238-48LLB-XC
Speed
(RPM)
4300
3800
3200
4300
3800
3200
2800
4700
4300
3800
3200
2800
Airflow
(CFM)
200
175
150
200
175
150
130
220
200
175
150
130
Noise (dB)
61
57
52
61
57
52
48
63
61
57
52
48
Volts DC
12
12
12
24
24
24
24
48
48
48
48
48
Input Power
(Watts)
23
18
10
19
16
9
7
32
25
17
11
9
Amps
1.95
1.50
0.87
0.98
0.68
0.42
0.30
0.68
0.52
0.36
0.22
0.18
Max. Static
Pressure
(“H2O)
0.64
0.51
0.38
0.64
0.51
0.38
0.29
0.75
0.64
0.51
0.38
0.29
Knight Electronics, Inc.
10557 Metric Drive
Dallas, Texas 75243
214-340-0265
RoHS Compliant
52
Information and data is subject to
change without prior notification.
Orion Fans
